Chapter 1 Specications Check
35
1.5.3 Regenerative Unit (Option)
This is a unit that converts the regenerative current to heat when the motor decelerates.
Refer to 2.3.6 Connection of Regenerative Unit for the number of connectable units.
[Model Codes and Specifications of Enclosed Items]
Item Enclosed Items
Screw attachment standard type REU-2
Screw attachment small type RESU-2
First
Unit
DIN rail attachment small type RESUD-2
SCON controller connection
Cable
(Model code CB-SC-REU010)
1m enclosed
Screw attachment standard type REU-1
Screw attachment small type RESU-1
Model
2nd
unit or
later
DIN rail attachment small type RESUD-1
Regenerative resistor unit
connection cable
(Model code CB-ST-REU010)
1m enclosed
[Specification]
REU-1、REU-2 RESU-1、RESU-2 RESUD-1、RESUD-2
Body Size [mm] W34×H195×D126 W34×H154×D106.5 W34×H158×D115
Body Mass Approx. 0.9kg Approx. 0.4kg
Internal Regenerative
Resistor
235
Ω 80W

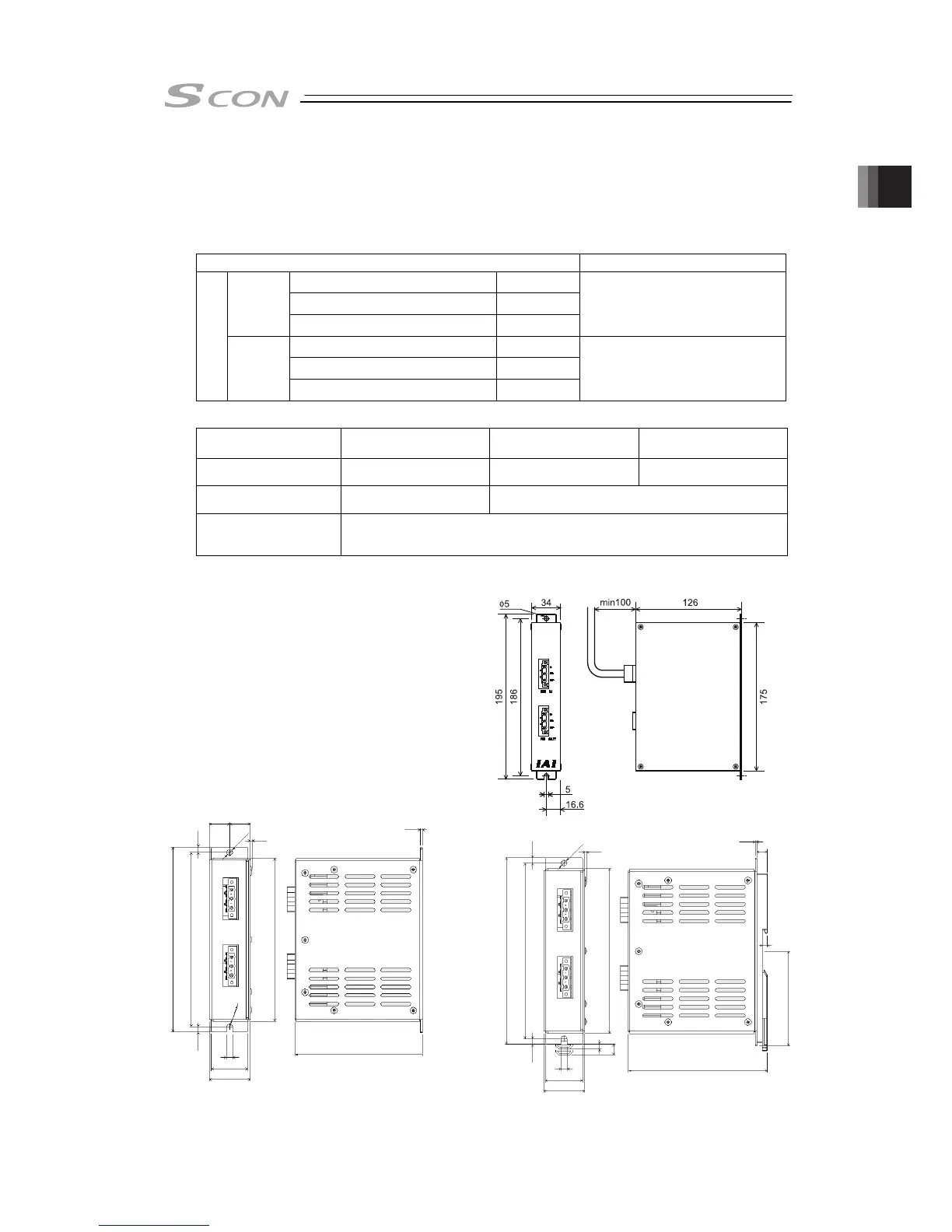

[Appearance]
REU-1, REU-2 (Screw attachment standard type)
16.85
17.15
1.5
φ5
4.5
145
154
136
R2.5
4.5
106.5
5
30.7
34
1.5
1.5
φ5
4.5
145
154
136
4.5
115
5
30.7
34
1.5
4
4
8.5
(77 from DIN rail center)
(9)
RESU-1, RESU-2 (Screw attachment small type) RESUD-1, RESUD-2 (DIN rail attachment small type)
