Chapter 10 Appendix
282

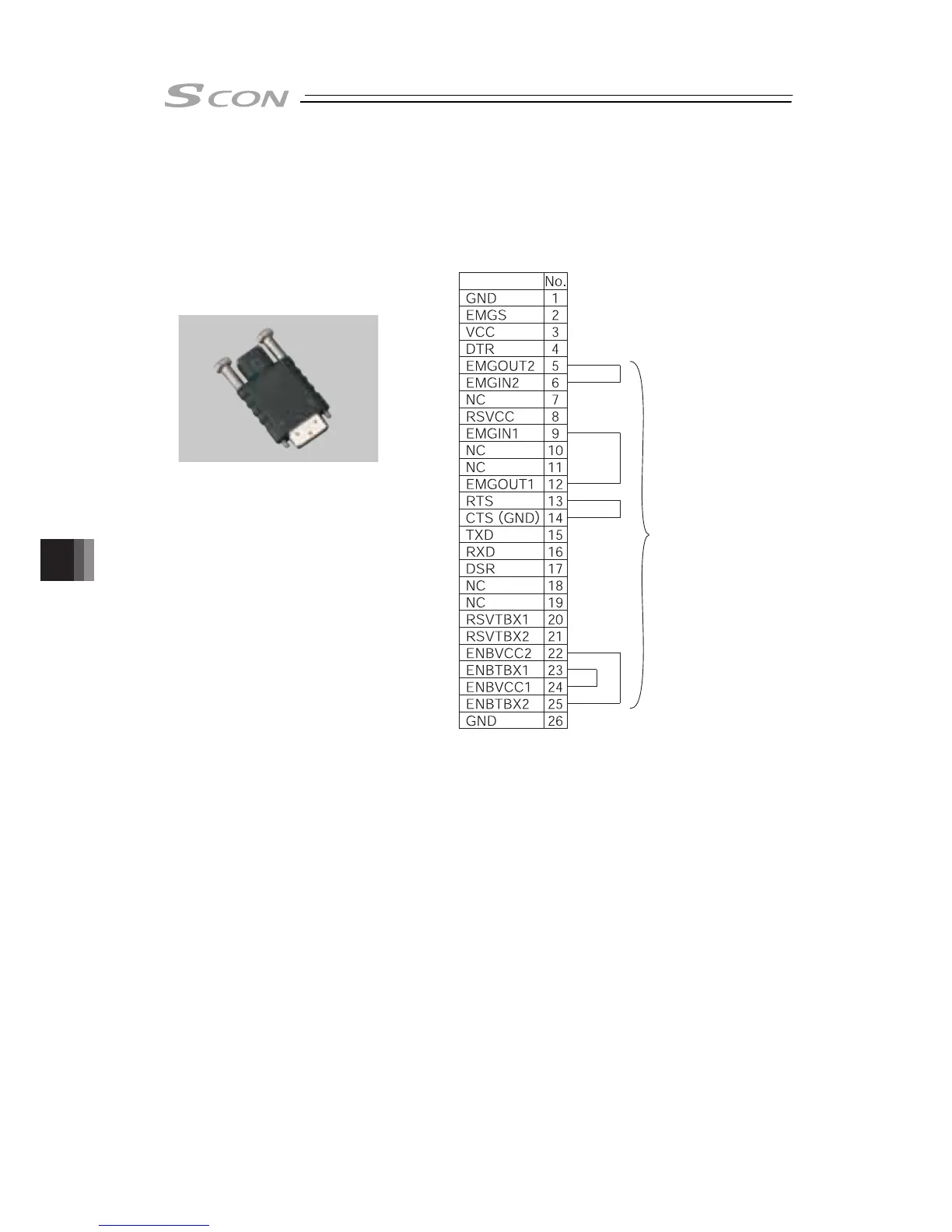

3) Dummy plug (Accessories)
Connect a dummy plug to the teaching pendant connecting connector.
Make sure to connect a dummy plug if the AUTO mode is specified.
Without the connection, it will be the emergency stop condition.
Model : DP-4S
Plug : HDR-E26MAG1+
Signal
Short-circuit processing.
DP-4S
