Display Removal in 37U Rack
1. Slide out the display from the rack and install it on a table.
CAUTION:
Be careful, the weight of the display is about 15 kg (33 lb).
2. Exchange the display then go to “Display Install in 37U Rack”.
Display Install in 37U Rack
1. Unpack the display.
2. Install the display in the rack (if the defective display was previously removed).
3. At the rear of the Nways Switch administration station, connect the display
signal cable «L¬ (see Figure 6-3).
4. Connect the display power cable to the electrical outlet.
5. Switch on the display using the power ON/OFF switch located on the front
panel.
6. Check that your display is working.
7. Go to “Leaving Procedure” on page 5-30.

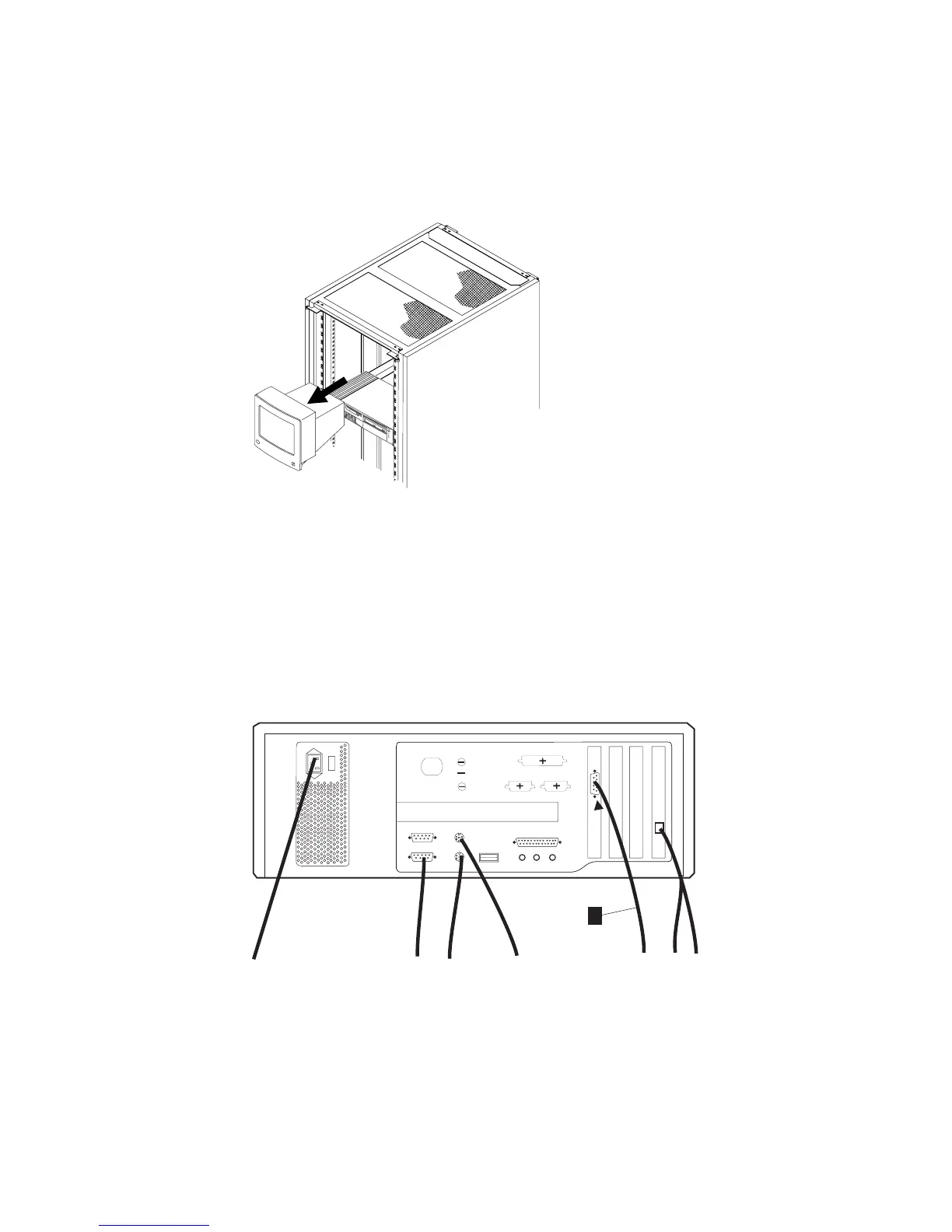

Figure 6-2. Display Removal From 37U Rack
L
Figure 6-3. Display Connection to the NAS
6-2 2220 Setup and Service Guide
