NAS Installation into a 29U Rack (Earthquake Feature)
1. ____ Install the captive nuts on the rack for installing the NAS. See Figure 1-23
for the front and rear rack location, and Figure 1-24 for captive nut installation.
Front View
Captive Nuts
Locations
29
25
Rear View
Captive Nuts
Locations

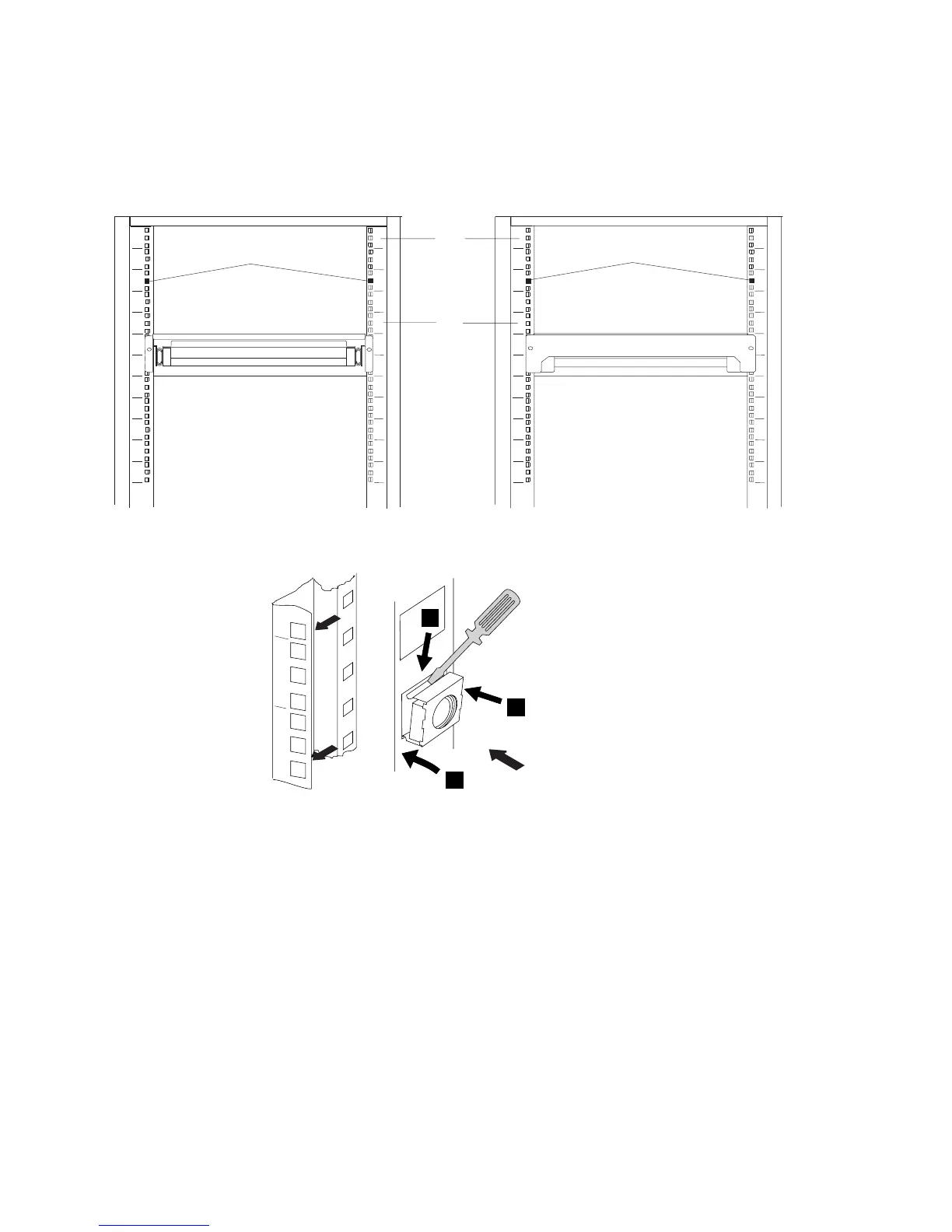

Figure 1-23. Captive Nut Positioning for the NAS with Earthquake Feature in 29U Rack
1
3
2
Z
Z
Z
Figure 1-24. Captive Nut Installation
