FRU Exchange
1. Go to
IBM Personal Computer 300 Series, 700 Series, IntelliStation; Hardware
Maintenance Manual
, S83G-7789. According to the procedure described,
change the FRU, then return here and continue this procedure with the following
steps.
Note for Disk Exchange
Disk 1 must be primary; disk 2 must be secondary. Check jumpering on
the disk using the disk documentation.
2. Reinstall all the covers of the Nways Switch administration station.
3. If your NAS was installed:
v On a table, go to step 4.
v In a 37U Rack:
– With the earthquake feature, go to “NAS Installation in the 37U Rack with
Earthquake Feature” on page 5-10.
– Without the earthquake feature:
a. Slide the NAS into the rack.
b. Reinstall the display on the NAS.
c. Go to step 4.
v In a 29U Rack:
– With the earthquake feature, go to “NAS Installation in the 29U Rack with
Earthquake Feature” on page 5-13.
– Without the earthquake feature:
a. Slide the NAS into the rack.
b. Go to step 4.
4. At the rear of the NAS, reconnect all the cables previously removed.
CD-ROM Drive
Hard Disk
Drive 1
Diskette Drive
Hard Disk Drive 2

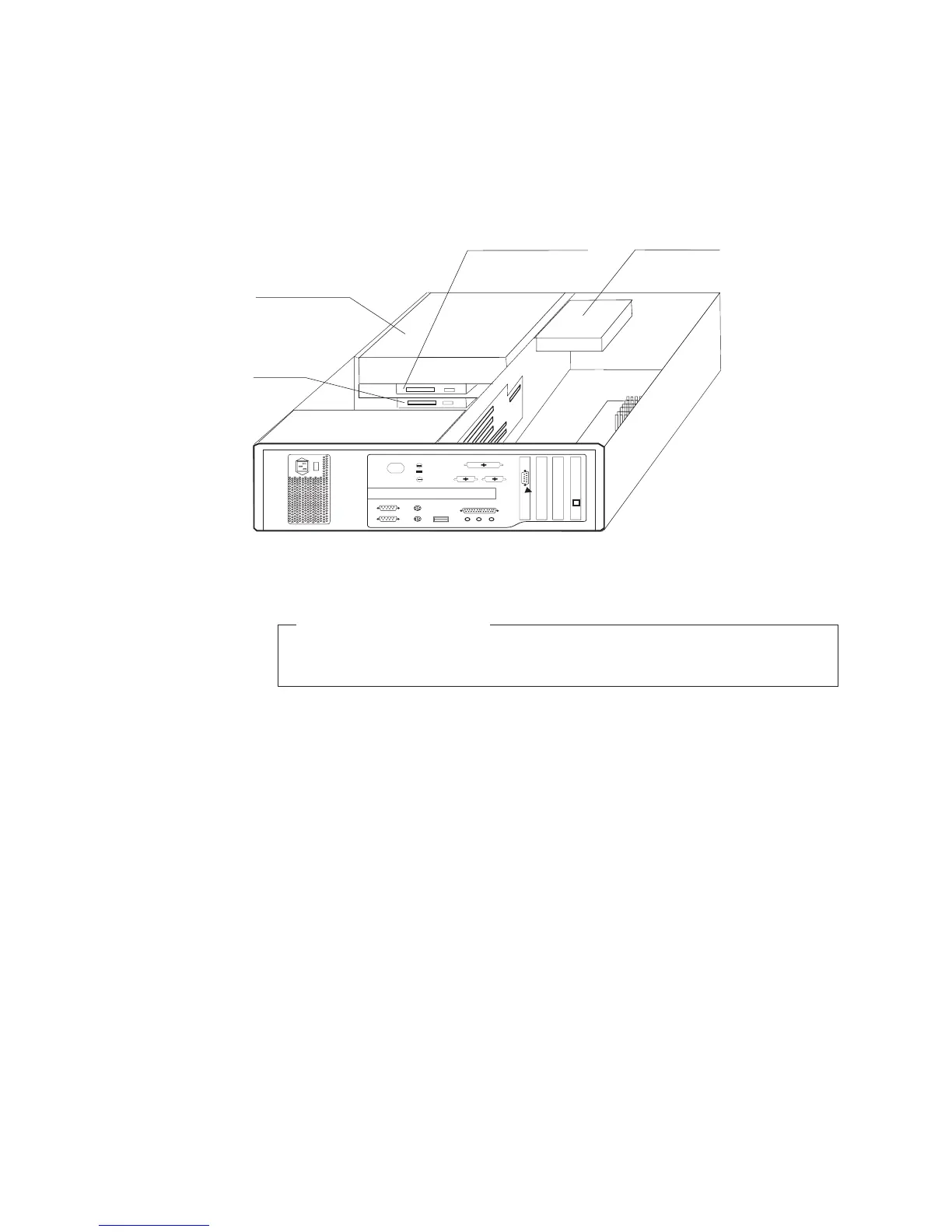

Figure 5-7. Disk Identification
5-8 2220 Setup and Service Guide
