NAS Installation in the 37U Rack with Earthquake Feature
1. Install the NAS «C¬ on the lower plate «A¬ (see Figure 5-9).
2. Install the upper plate «G¬ on the NAS.
3. At the rear of the rack, secure the lower plate «G¬ on the support «D¬ using
screws «H¬.
4. On the front of the rack, secure the upper plate «G¬ using the screws «E¬.
5. On the front of the rack install the retainer «J¬ and secure it with screws «H¬
(see Figure 5-10 on page 5-11).
C
E
D
A
E
G
H

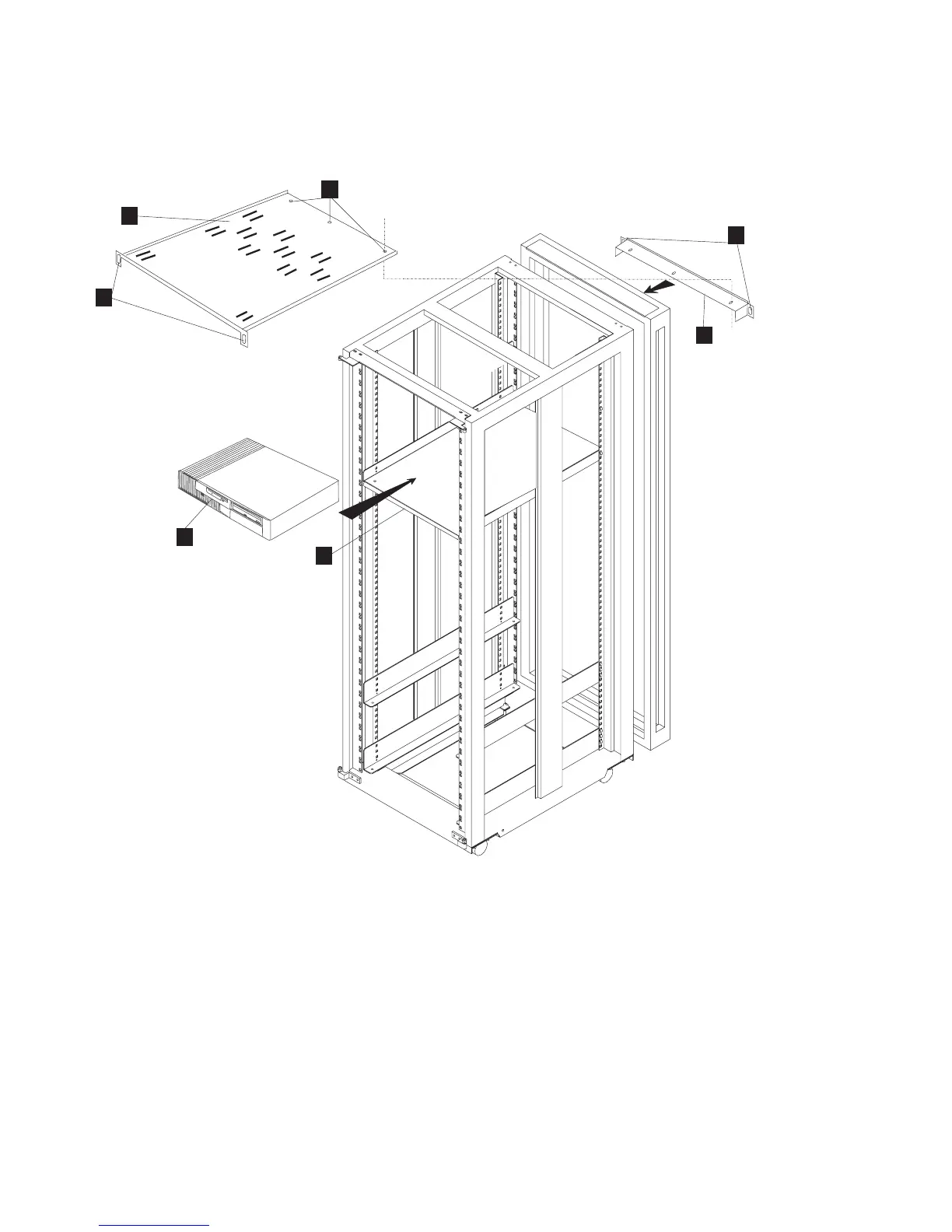

Figure 5-9. NAS and Upper Plate Installation
5-10 2220 Setup and Service Guide
