IBM 300 - NAS Installation into a 29 U Rack (Standard); NAS Installation in 29 U Rack

NAS Installation into a 29U Rack (Standard)
1. ____ Install the NAS on the upper drawer plate Figure 1-22.
2. ____ Go to “Installing the Display on Top of the 29U Rack” on page 1-23.

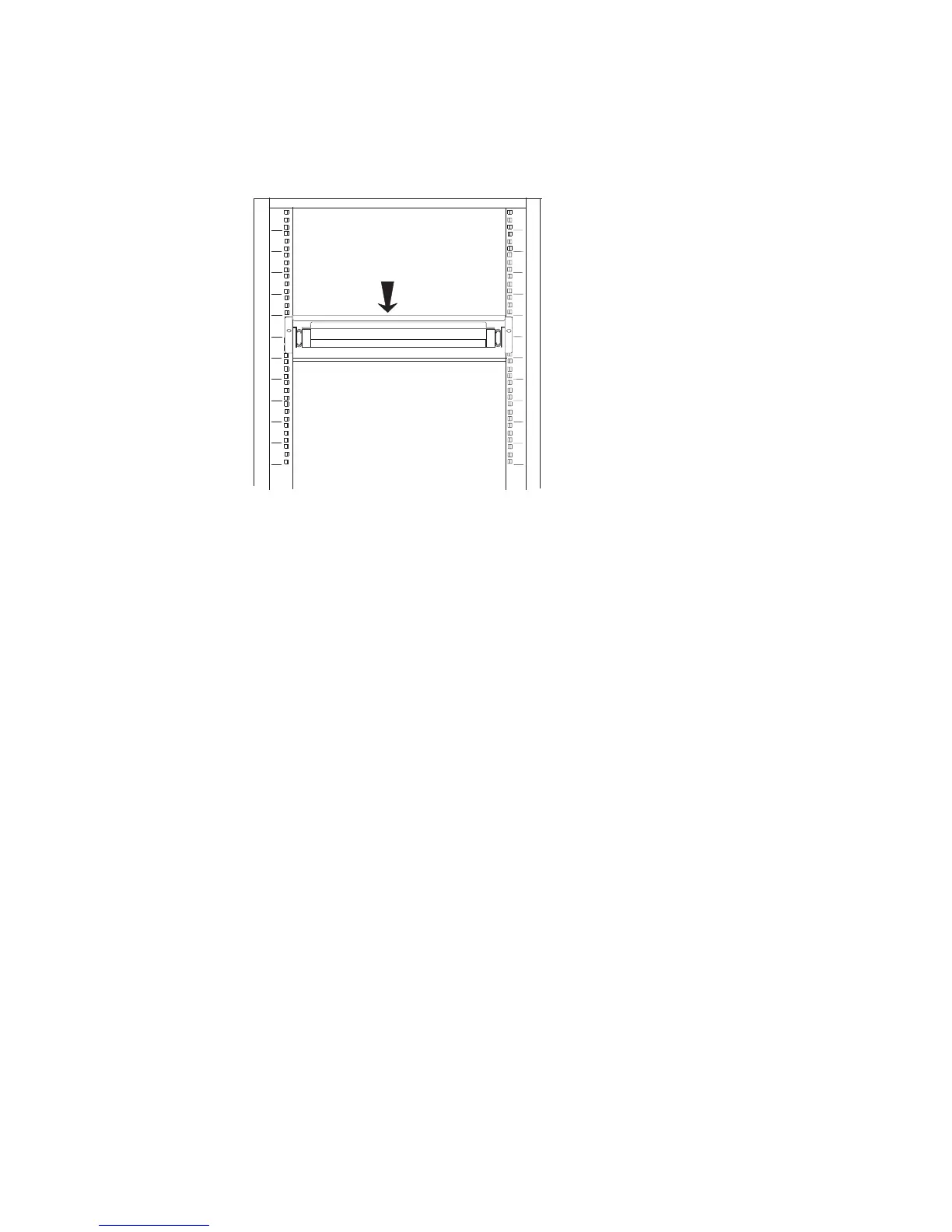

Front View
Install the NAS directly
on the upper drawer plate
Figure 1-22. NAS Installation in 29U Rack
Installing the NAS and Its Modem
1-18
2220 Setup and Service Guide
