2. ____ Install the NAS «C¬ on the drawer.
3. ____ On the rear of the rack, install the support «D¬ using the screws «E¬ (PN
43G3084) (see Figure 1-26 on page 1-21).
C
E
D
E
G
H

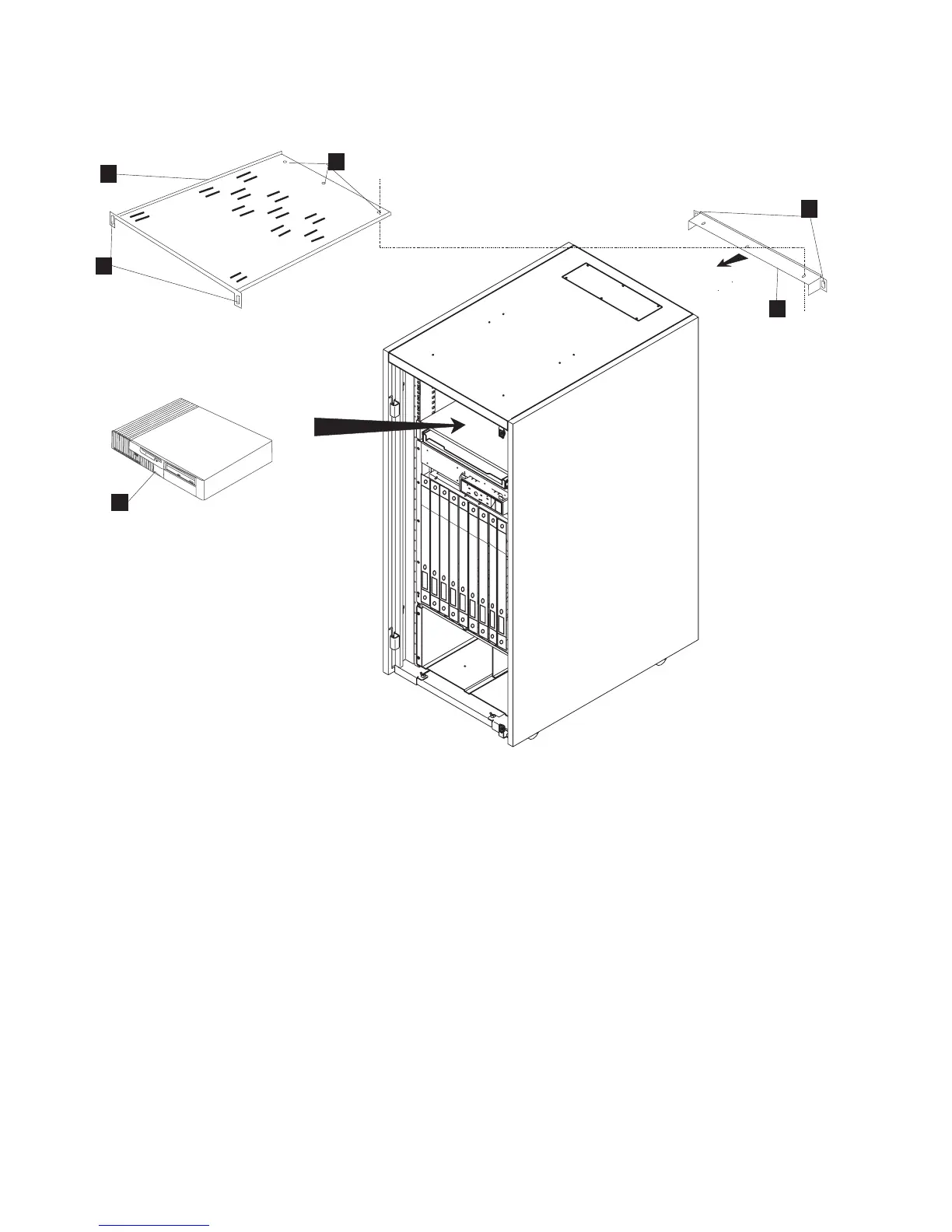

Figure 1-25. Upper Plate Installation in 29U Rack
Installing the NAS and Its Modem
1-20
2220 Setup and Service Guide
