IBM 300 - Installing the Display on Top of the 29 U Rack; Removing of the Top Cover

Installing the Display on Top of the 29U Rack
1. ____ On the top of the 29U rack, loosen and remove the six screws «A¬ (see
Figure 1-28).
2. ____ Remove the top cover «B¬.
3. ____ Unpack the display and install it on the top of the 29U rack using the
following steps:
CAUTION
Be careful, the weight of the display is about 15 kg (33 lb).
a. ____ On the top of the 29U rack install the safety retainers «D¬ (PN
02N1503) with screws «F¬ (PN 1621601) and star washers «E¬ (PN
1622336), see Figure 1-29 on page 1-24.
A
C
B

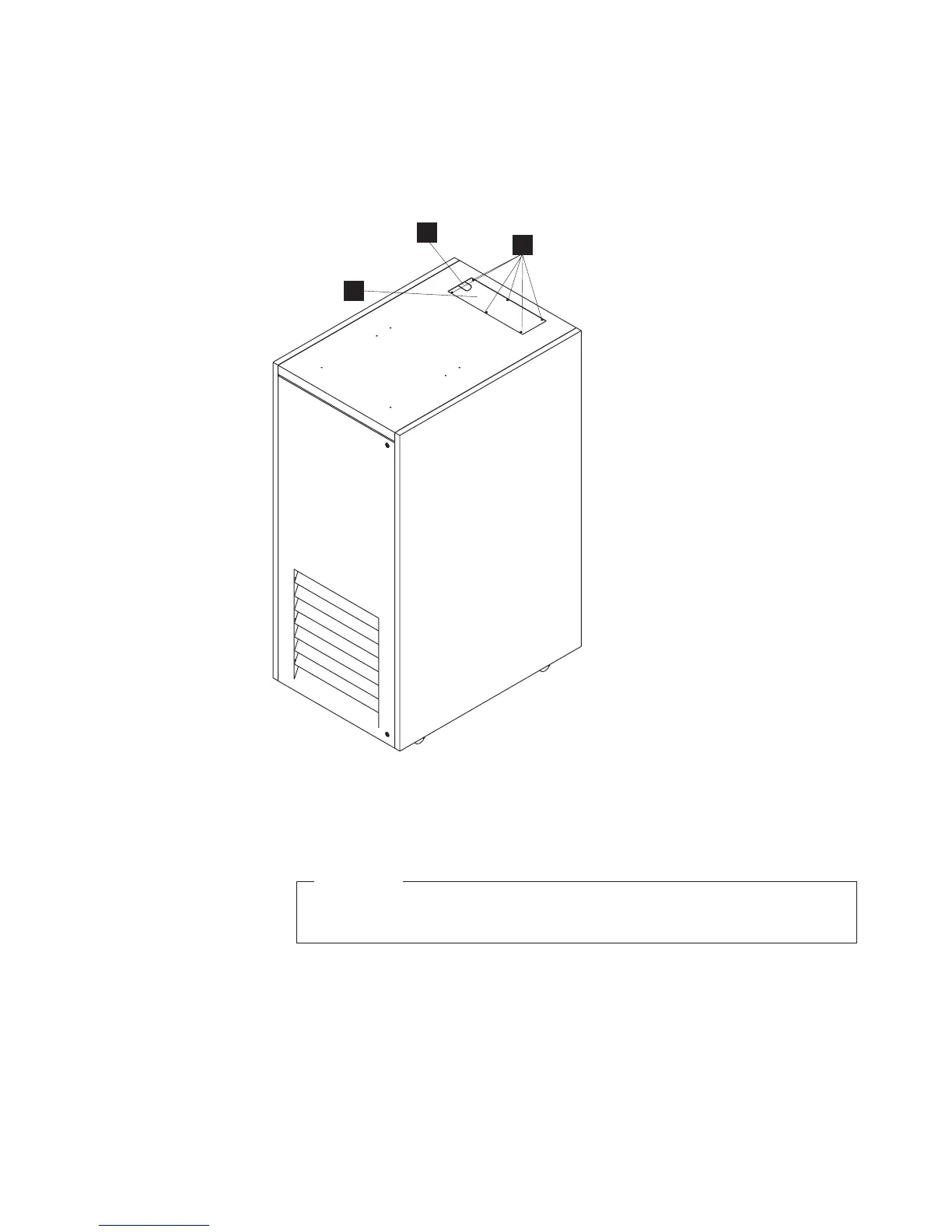

Figure 1-28. Removing of the Top Cover
