Installing and Connecting the External Modem
Which modem did you receive?
Depending on the modem received:
v Type A, go to “Installing and Connecting the 7857 Modem” on page 1-30.
v Type B, go to “Installing and Connecting the Hayes Modem” on page 1-37.
v Type C, go to “Installing and Connecting the 7858 Modem” on page 1-39.
7857-017
PWR
OH
DTR
108 106
109
CTS
CD
ENTER

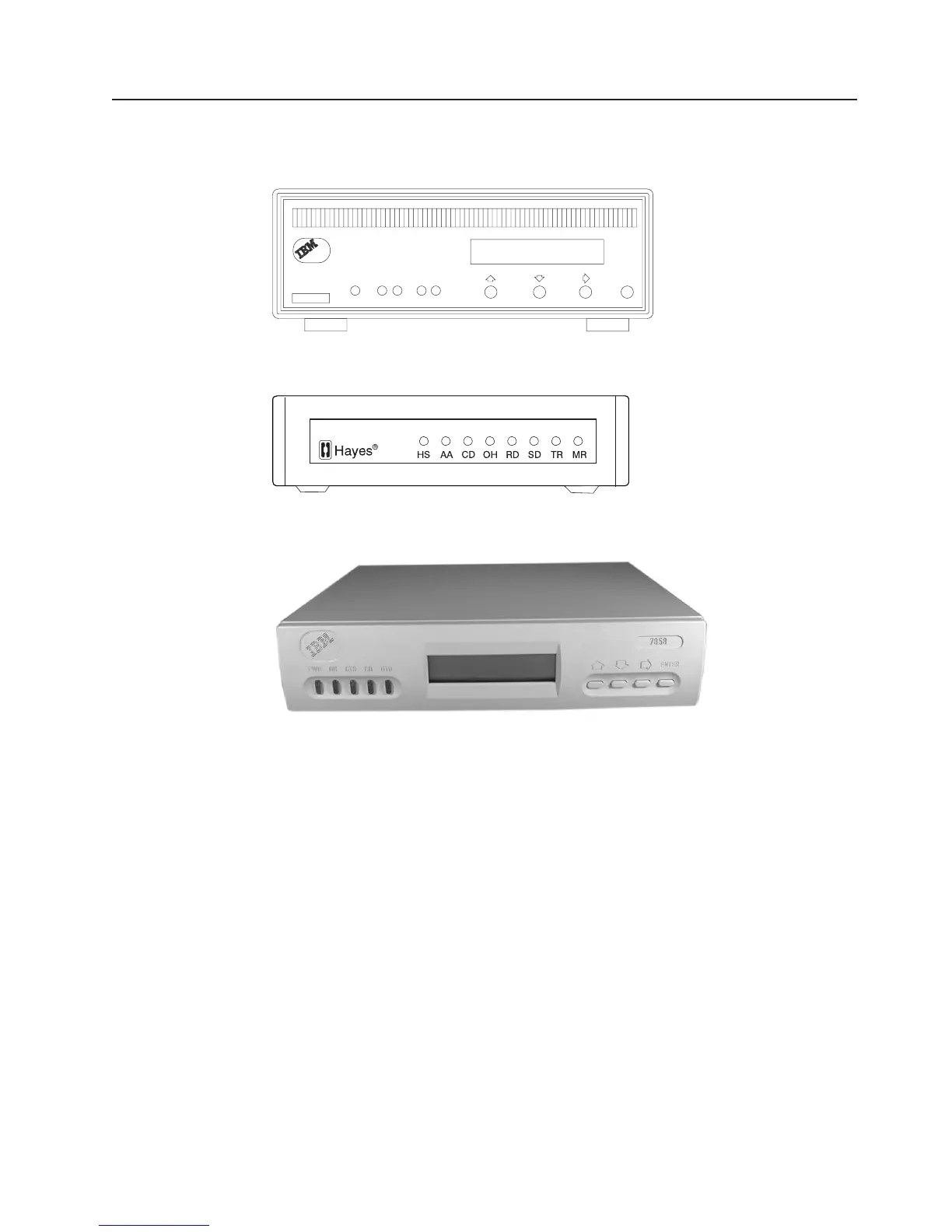

Figure 1-34. Modem Type A
Figure 1-35. Modem Type B
Figure 1-36. Modem Type C
Installing the NAS and Its Modem
Chapter 1. Installing and Configuring the NAS and Its Modem 1-29
