Installing and Connecting the Hayes Modem
Notes
1. If you are not familiar with the Hayes modem, refer to the Hayes user’s
guide.
2. Power and frequency requirements:
v Input voltage: 230 V +/-10%, 50 Hz (ac)
v Nominal output voltage:9Vac
v Maximum output voltage: 12.1 V ac
v Rated load current: 800 mA ac 50 Hz
1. Unpack and install the modem on the rear side of the NAS.
2. See Figure 1-43 on page 1-38 and connect the cables as follows:
Note: Cables «1¬ and «2¬ are country-dependent.
a. ____ Connect the power cable «1¬ from connector “9.0V-AC” to a
standard 3-pin grounded ac outlet.
b. ____ Connect the interface cable «3¬ from the “DTE INTERFACE”
modem’s connector to the NAS’s connector «4¬.
c. ____ Connect the switched network telecommunication cable «2¬
from the line connector to the telecommunication line.

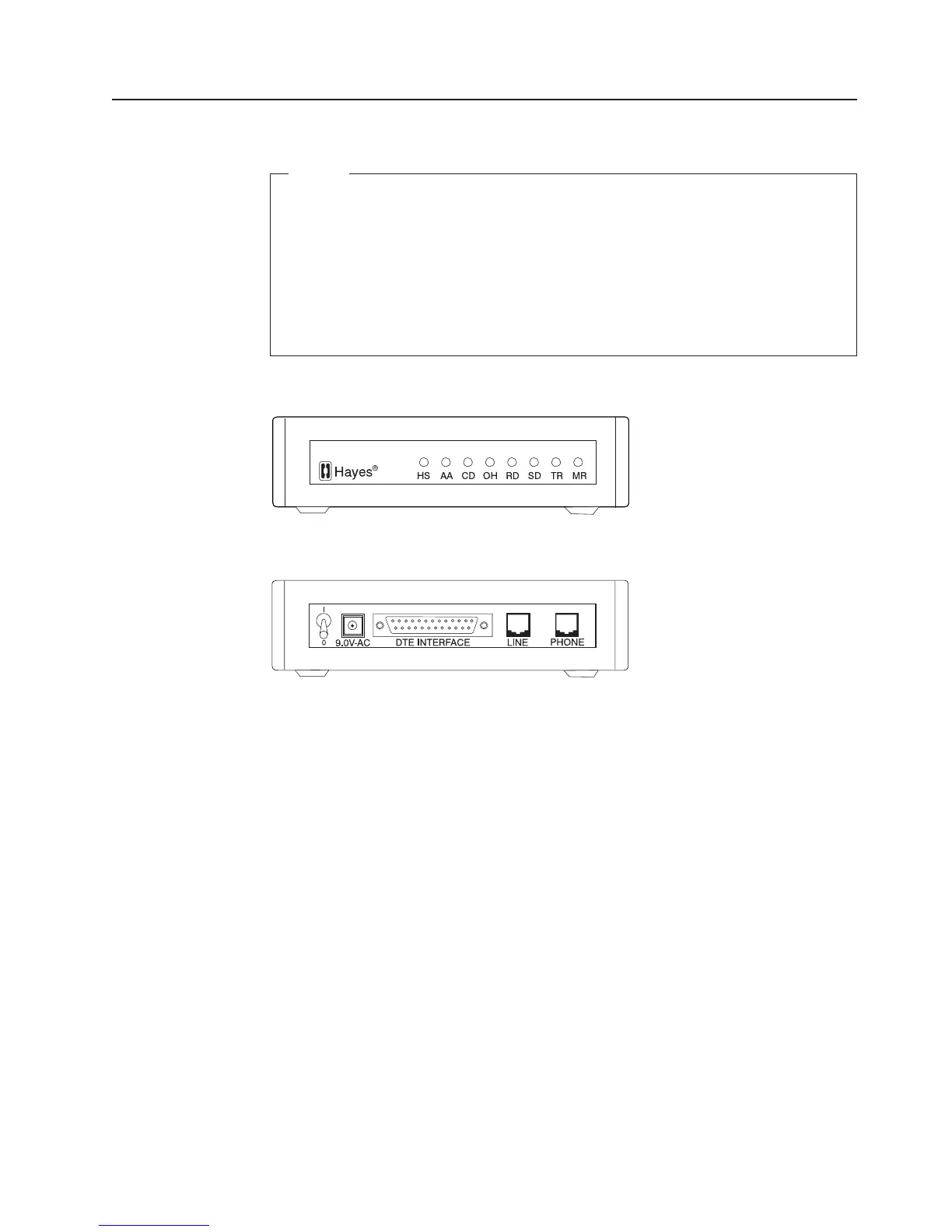

Figure 1-41. Hayes Modem Front View
Figure 1-42. Hayes Modem Rear View
