IBM 300 - Display Installation; Installing the NAS Display in a 37 U Rack

Installing the NAS Display in a 37U Rack
1. ____ Install the brackets (PN 43G3111) to install the display (see Figure 1-9 on
page 1-8).
2. ____ Unpack the hold down PN 80G3818.
3. ____ Install the front panel assembly «A¬ on the tray «B¬ and secure it using the
braces «C¬ and nuts «D¬.
4. ____ Unpack the display.
5. ____ Install the display on the tray. Install the latch plate «E¬ to maintain the
display and secure it with screw «F¬.
6. ____ Install the tray into the rack, and secure it with screws «G¬.
A
B
C
E
F
D

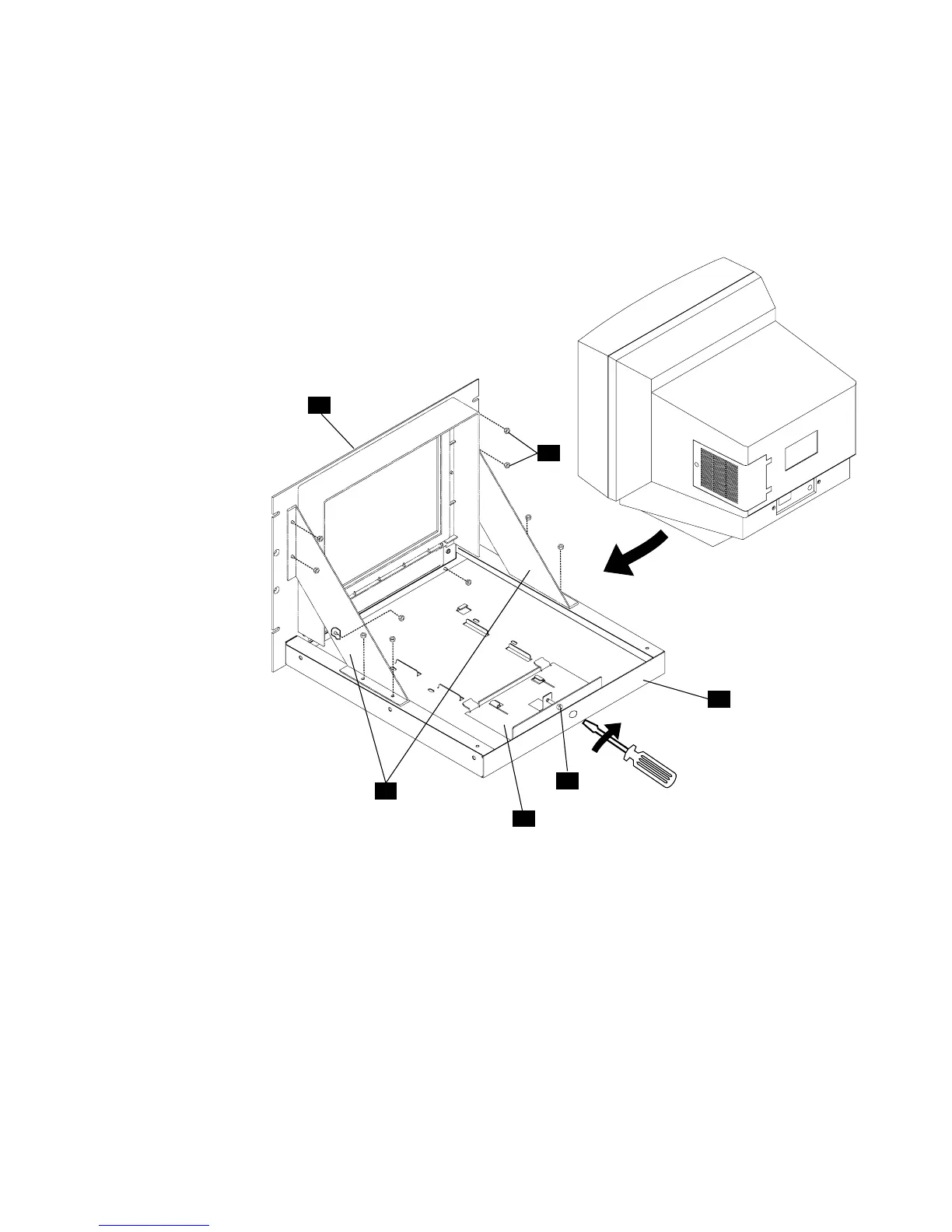

Figure 1-16. Display Installation
