6. From the rear of the rack, push the NAS against the previously installed
retainer. Install two retainers «J¬ under the upper plate «G¬ in order to maintain
the NAS. Secure them using screws «H¬.
7. Install the brackets for the display (see Figure 1-9 on page 1-8 for bracket
location).
8. Slide the display into the rack and secure it with screws «B¬ (see Figure 5-11
on page 5-12).

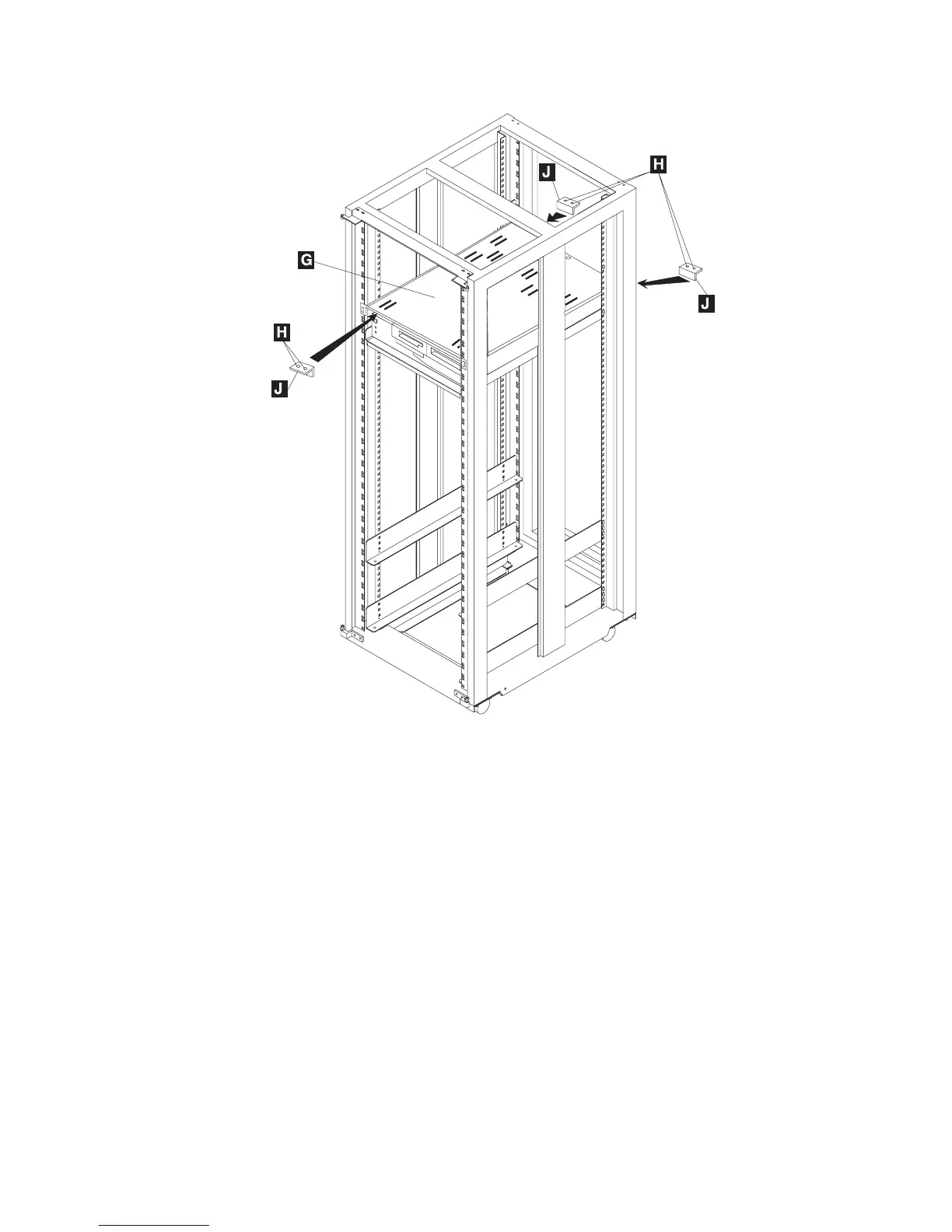

Figure 5-10. NAS and Upper Plate Installation
Chapter 5. Nways Switch Administration Station FRU and Display Exchange Procedures 5-11
