IBM 300 - NAS Removal from the 29 U Rack (Standard); NAS Removal from the 29 U Rack (Earthquake Feature); Upper Plate Removal in 29 U Rack 1)

NAS Removal From the 29U Rack (Standard)
1. Slide the NAS out of the rack.
2. Install the NAS on a table, then go to “FRU Exchange” on page 5-8.
NAS Removal From the 29U Rack (Earthquake Feature)
1. Remove the screws «K¬ to remove the retainers «J¬ located under the plate«G¬
(see Figure 5-6).
2. At the rear of the rack remove the screws «H¬ which secure the upper plate «G¬
on the rear support «D¬.
J
J
J
G
K
K
E
G
H
E
D

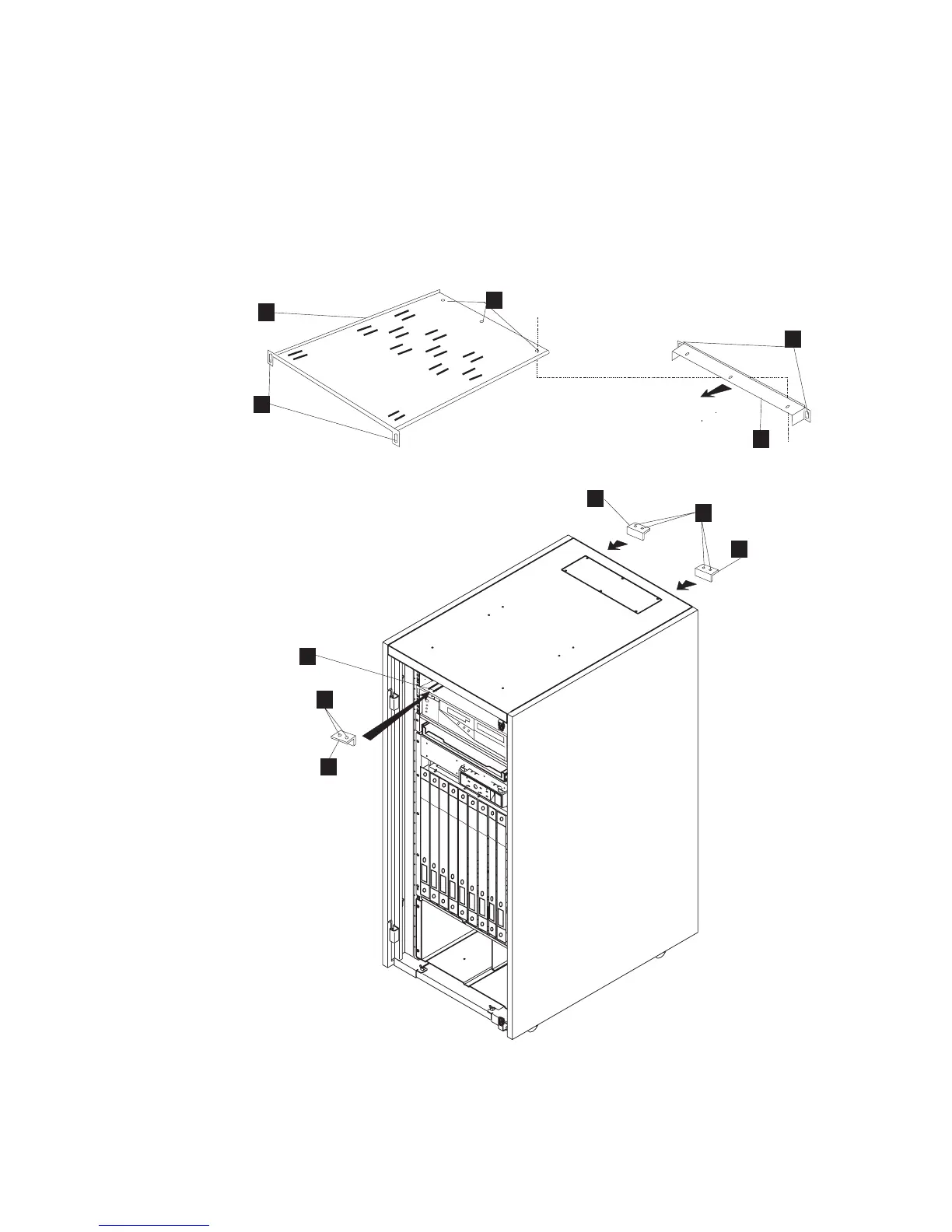

Figure 5-6. Upper Plate Removal in 29U Rack 1)
5-6 2220 Setup and Service Guide
