Connecting the NAS in the 29U Rack
1. ____ At the rear of the rack (see Figure 1-31 to route and locate the cables and
see Figure 1-32 on page 1-27 to locate the connectors at the rear side of the
NAS), plug the cables as follows:
a. ____ Connect the display signal cable «A¬ to the NAS connector «1¬.
b. ____ Locate the keyboard cable «E¬ in the service drawer and plug it into
the NAS connector «2¬.
c. ____ Plug the mouse cable «D¬ into the NAS connector «3¬.
d. ____ Plug the power cord «F¬ into a correctly grounded electrical outlet.
F
A
D
E

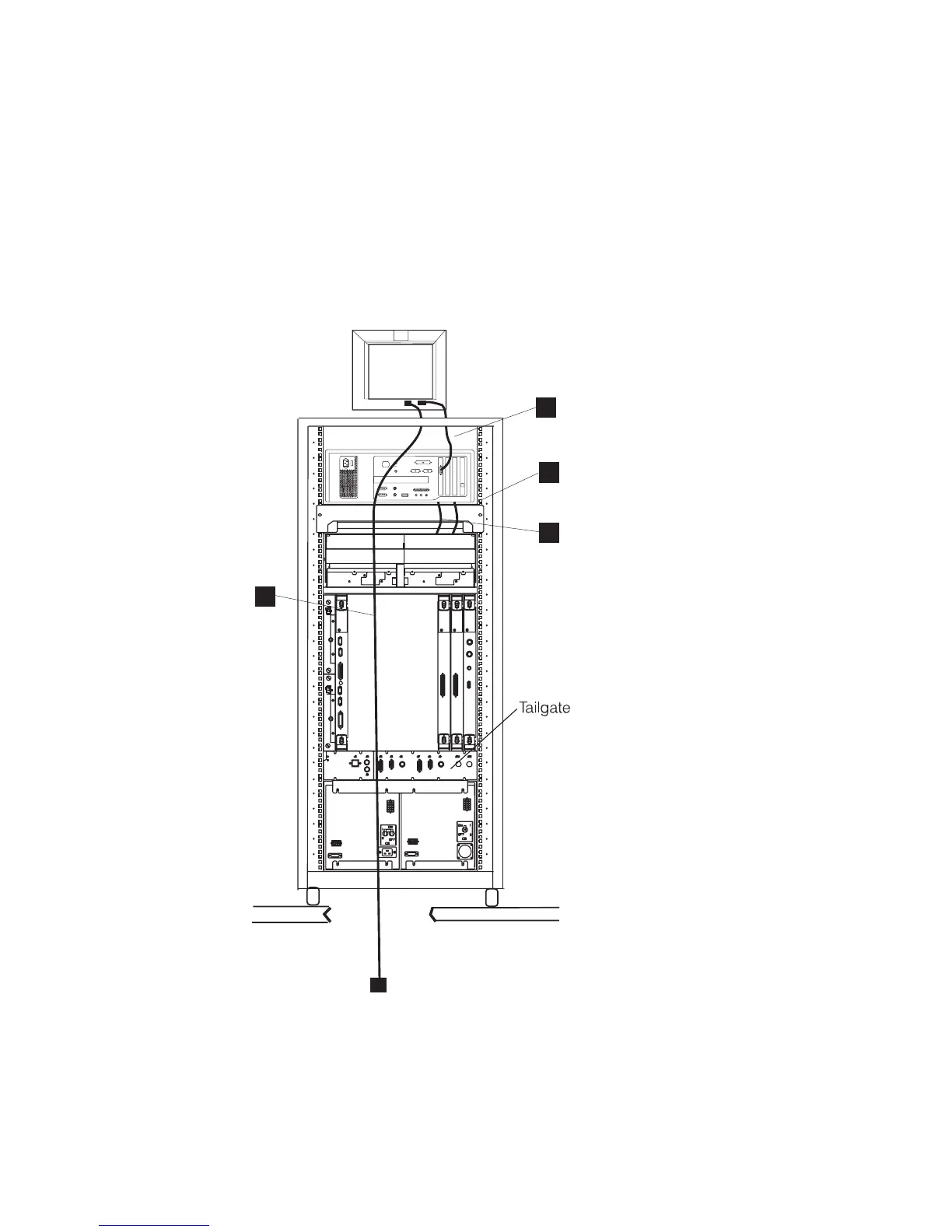

Figure 1-31. Display and Keyboard Cables Connection to the NAS
Installing the NAS and Its Modem
1-26
2220 Setup and Service Guide
