5. Slide the display from the top of the 29U rack.
CAUTION:
Be careful, the weight of the display is about 15 kg (33 lb).
6. Go to “Display Install on Top of 29U Rack”.
Display Install on Top of 29U Rack
1. Unpack the display.
2. Install the display on the top of the 29U rack using the following steps:
a. On the top of the 29U rack, install the safety retainers «D¬ (PN 02N1503)
with screws «F¬ (PN 1621601) and star washers «E¬ (PN 1622336) (see
Figure 6-6 on page 6-5).
D
E
F

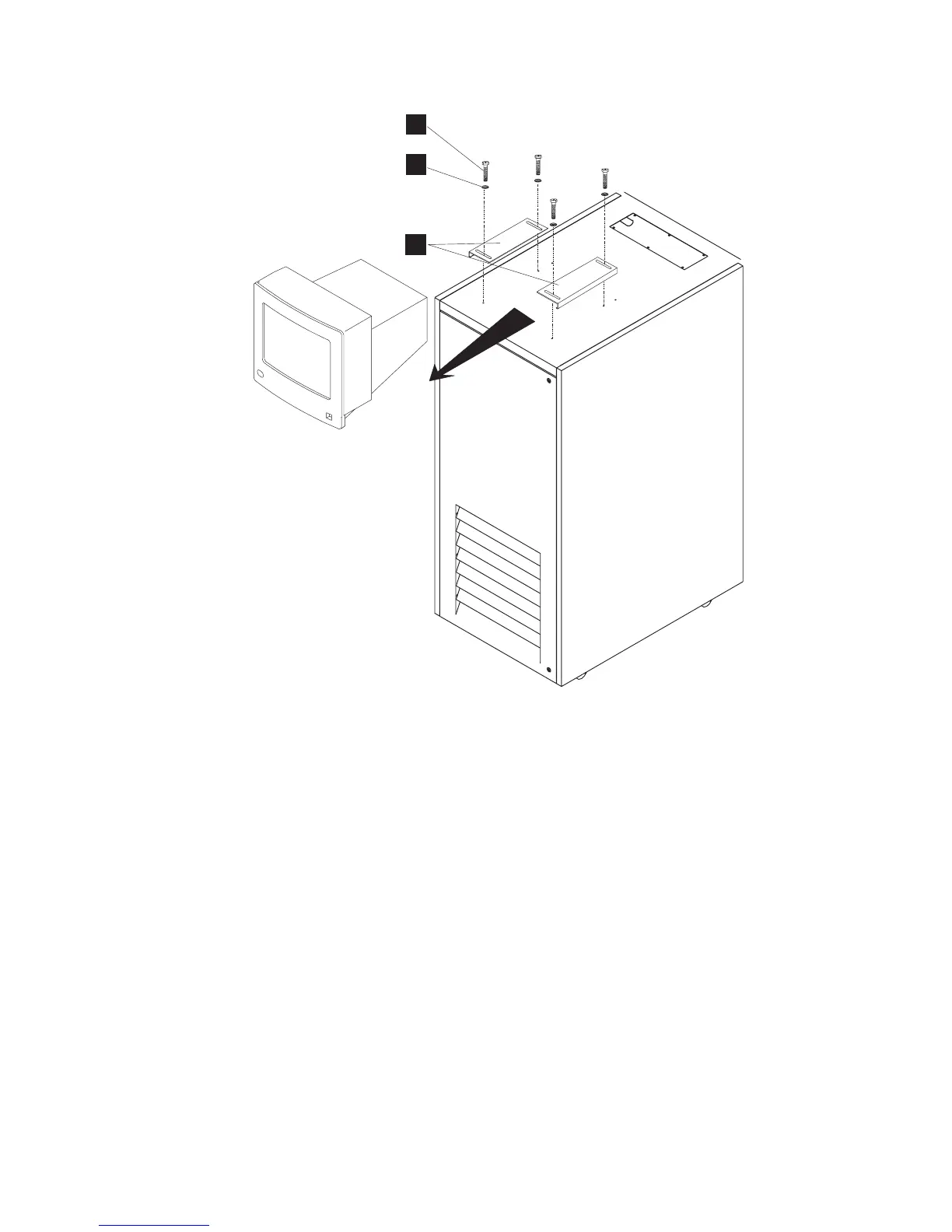

Figure 6-5. Display Removing from the Top of 29U Rack
6-4 2220 Setup and Service Guide
