NAS Installation in the 29U Rack with Earthquake Feature
1. Install the NAS «C¬ on the drawer (see Figure 5-13).
2. From the front of the rack install the upper plate «G¬ on the NAS.
3. At the rear of the rack, secure the lower plate «G¬ on the support «D¬ using
screws «H¬.
4. On the front of the rack, secure the upper plate «G¬ using the screws «E¬.
5. On the front of the rack install the retainer «J¬ and secure it with screws «H¬
(see Figure 5-14 on page 5-14).
C
E
D
E
G
H

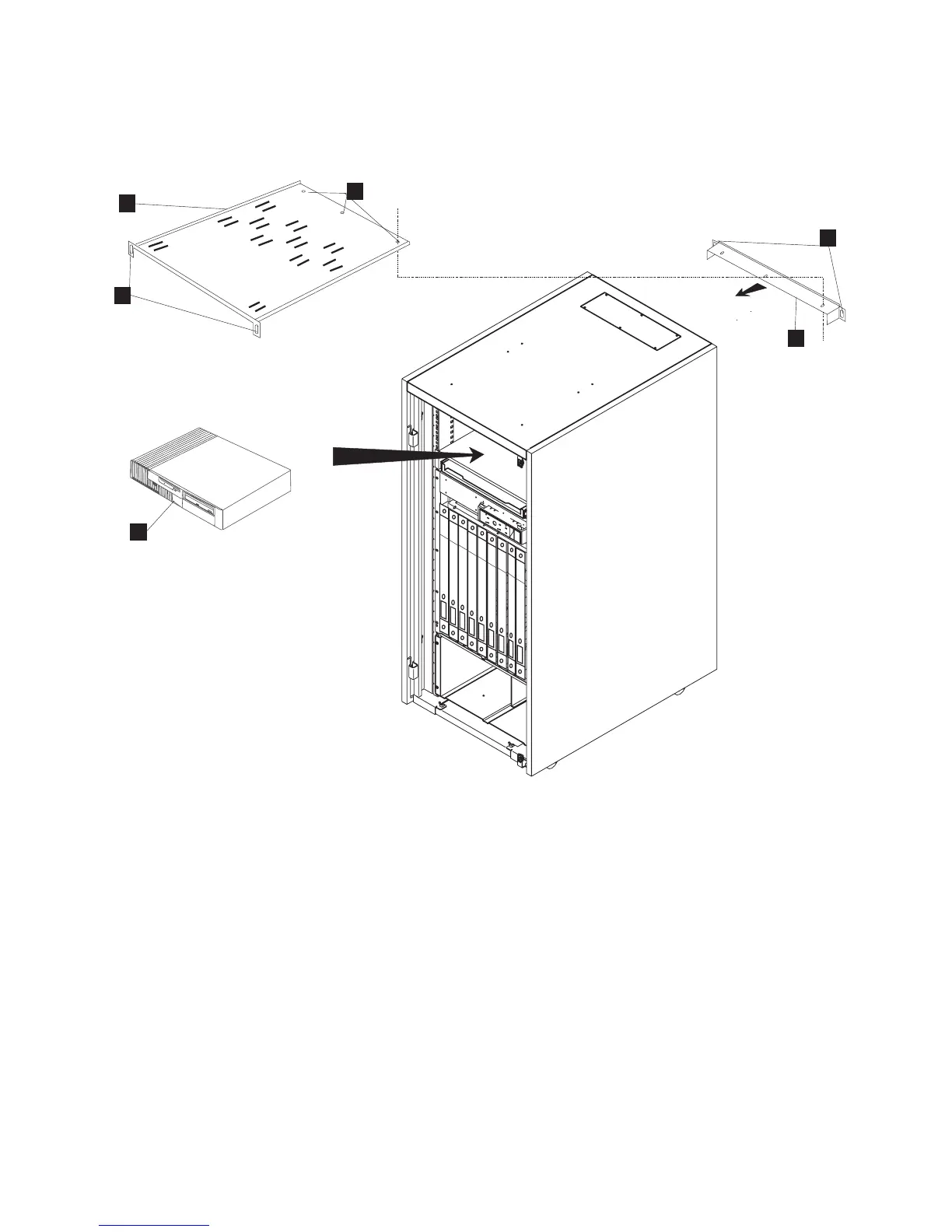

Figure 5-13. NAS Installation in 29U Rack
Chapter 5. Nways Switch Administration Station FRU and Display Exchange Procedures 5-13
