IBM 300 - NAS Removal from the 37 U Rack (Standard); NAS Removal from the 37 U Rack (Earthquake Feature); Display Removal; Display Assembly Removal (Earthquake Feature)

NAS Removal from the 37U Rack (Standard)
1. Disconnect the power cable of the display from the power source, and slide the
display out of the rack (see Figure 5-2).
2. Slide the NAS out of the rack.
3. Install the NAS on a table, then go to “FRU Exchange” on page 5-8.
NAS Removal From the 37U Rack (Earthquake Feature)
1. At the front of the rack remove the screws «B¬.

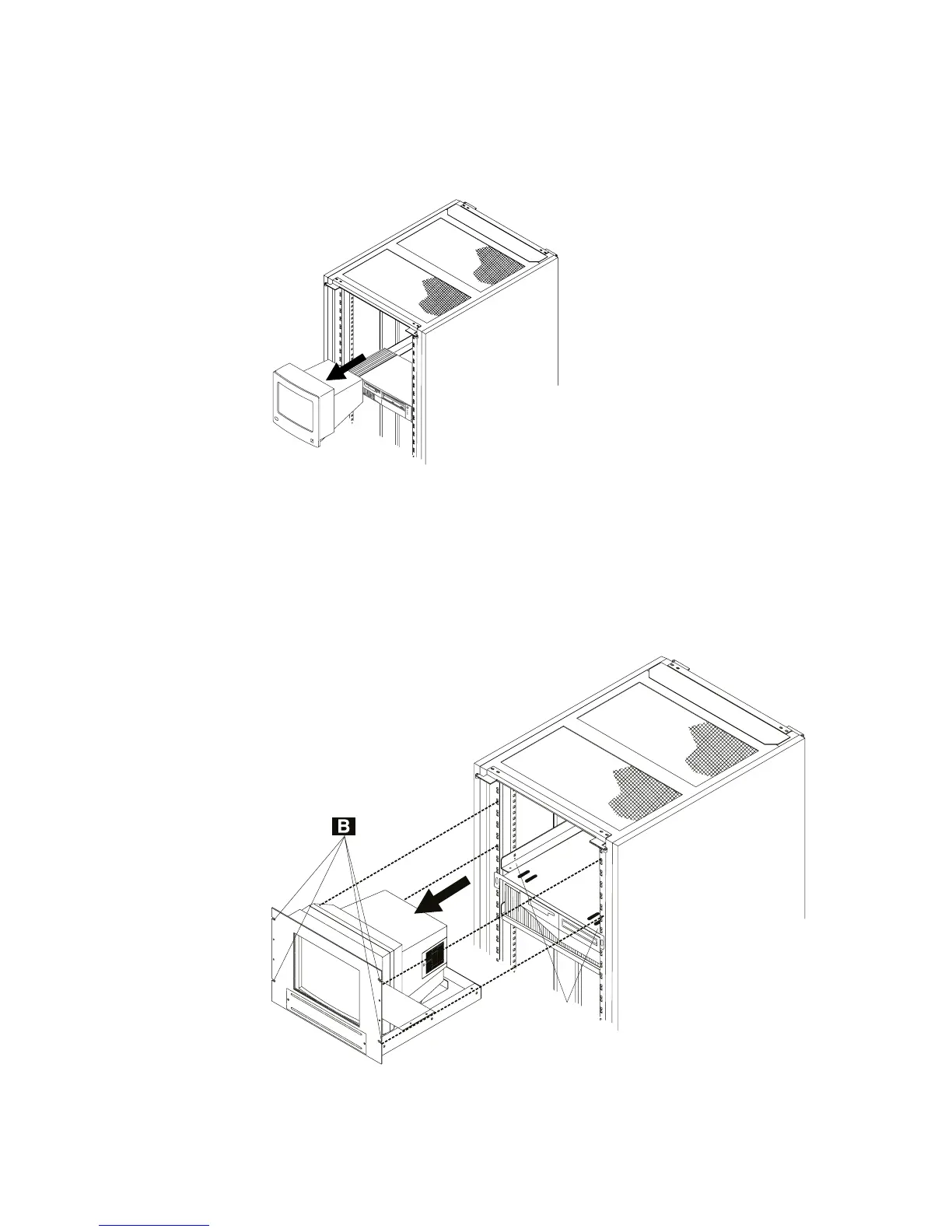

Figure 5-2. Display Removal
Brackets
Figure 5-3. Display Assembly Removal (Earthquake Feature)
Chapter 5. Nways Switch Administration Station FRU and Display Exchange Procedures 5-3
