CAUTION
Be careful, the weight of the display assembly is about 18 kg (39.7 lb).
2. Disconnect the power cable of the display, then slide the display assembly out
of the rack and install it on a table.
3. Remove the brackets inside the rack which maintained the display.
4. Remove the screws«H¬ to remove the retainers «J¬ located under the plate«G¬.
5. At the rear of the rack remove the screws «H¬ which secure the upper plate «G¬
on the rear support (see Figure 5-5 on page 5-5).
6. At the front of the rack remove screws «E¬, and slide the upper plate «G¬ out of
the rack.

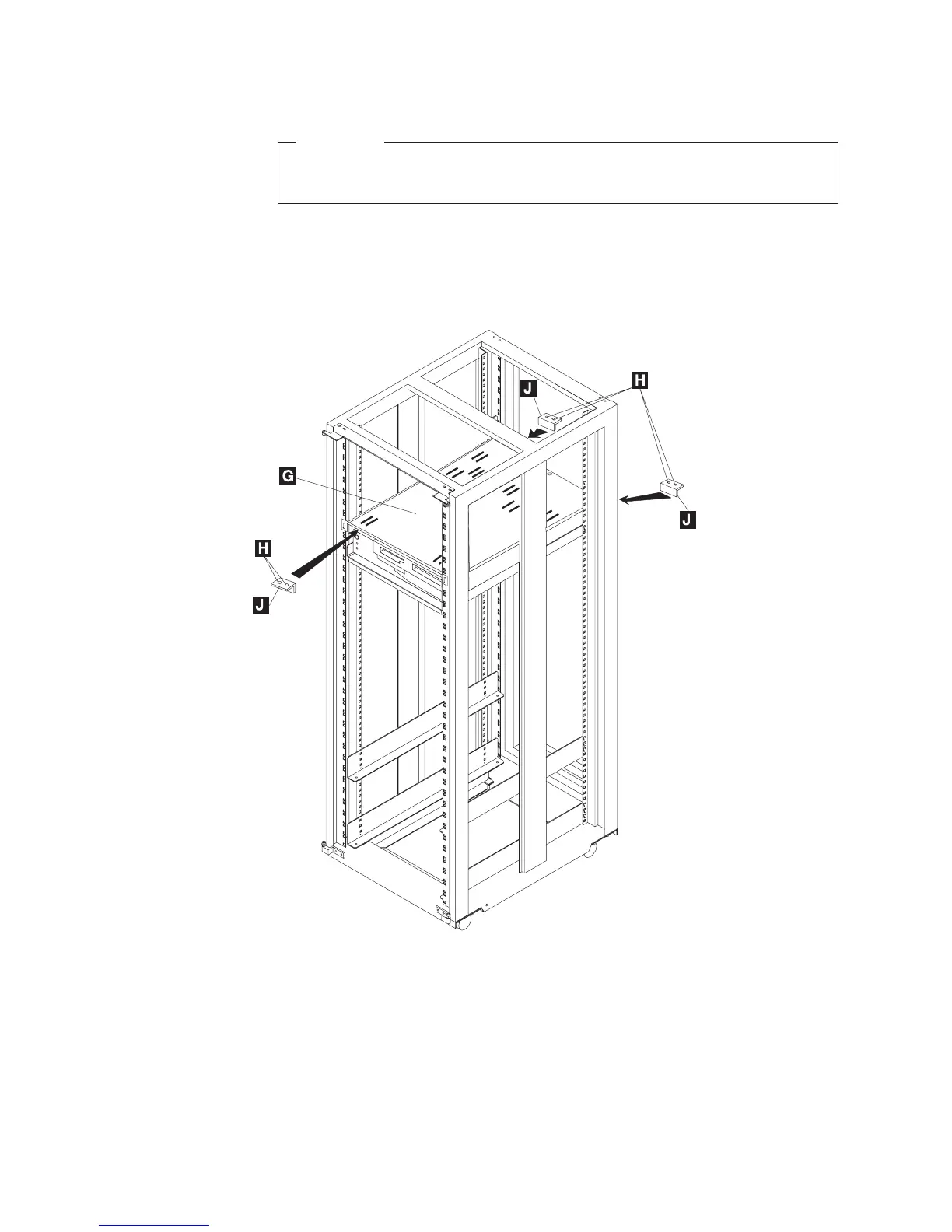

Figure 5-4. Upper Plate Removal (1)
5-4 2220 Setup and Service Guide
