Installing the NAS in a 29U Rack
1. ____ Open the service drawer «A¬, and install the mouse plate «B¬ as shown in
Figure 1-21.
2. ____ Unpack the keyboard and the mouse, and install them on the drawer.
3. ____ Route the mouse and keyboard cables under the upper plate of the
drawer.
4. ____ If you have to install the NAS:
v Without the earthquake feature, go to “NAS Installation into a 29U Rack
(Standard)” on page 1-18.
v With the earthquake feature, go to “NAS Installation into a 29U Rack
(Earthquake Feature)” on page 1-19.
B
A

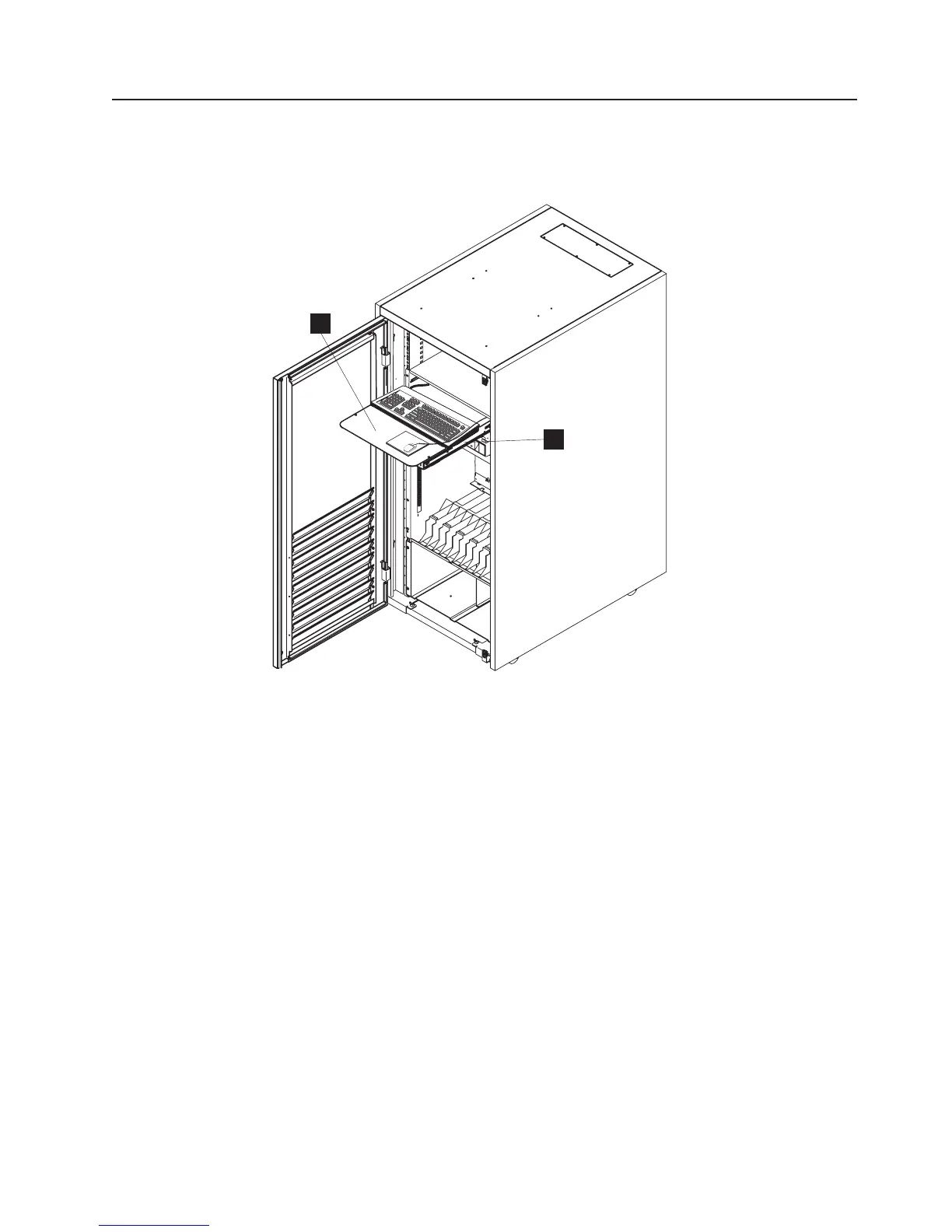

Figure 1-21. Keyboard Installation in 29U Rack
