2. ____ Connect the cables (see Figure 1-33 on page 1-28) to the APC and APC
tailgate as follows:
a. ____ Plug one «T¬ connector (PN 80G0638) into the APC connector 4.
b. ____ Route and plug cable «B¬ (PN 10K8667) from the connector 6 of the
APC card into the Ethernet card connector «5¬.
c. ____ Route and plug cable «C¬ (PN 80G0637) from the «T¬ connector
located on connector 4 of the APC card into the tailgate connector J2.
3. ____ Secure the cables into the rack using tie clamps (PN 1159519).
6
F
D
E
A
2
4
3
1
5
B

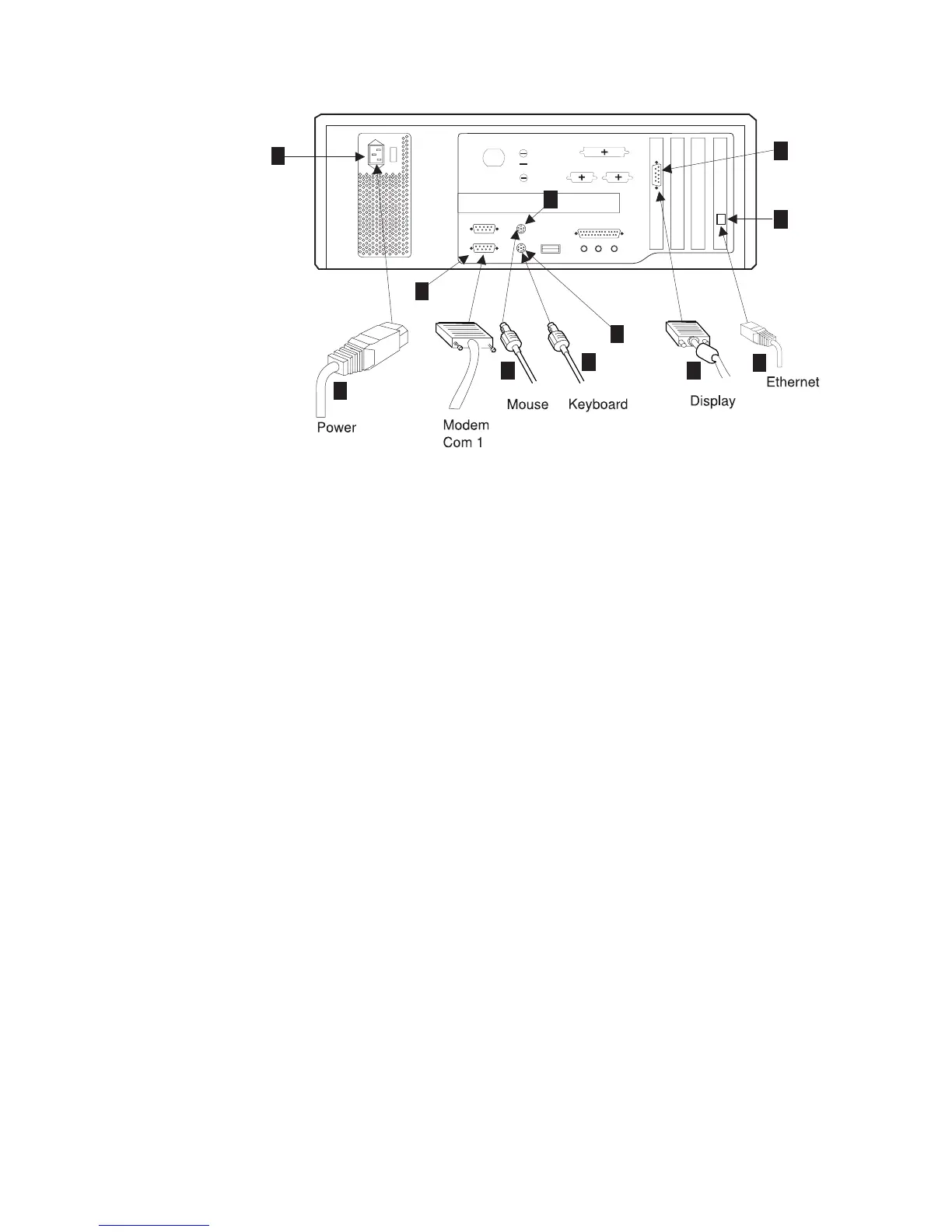

Figure 1-32. NAS Connectors
Installing the NAS and Its Modem
Chapter 1. Installing and Configuring the NAS and Its Modem 1-27
