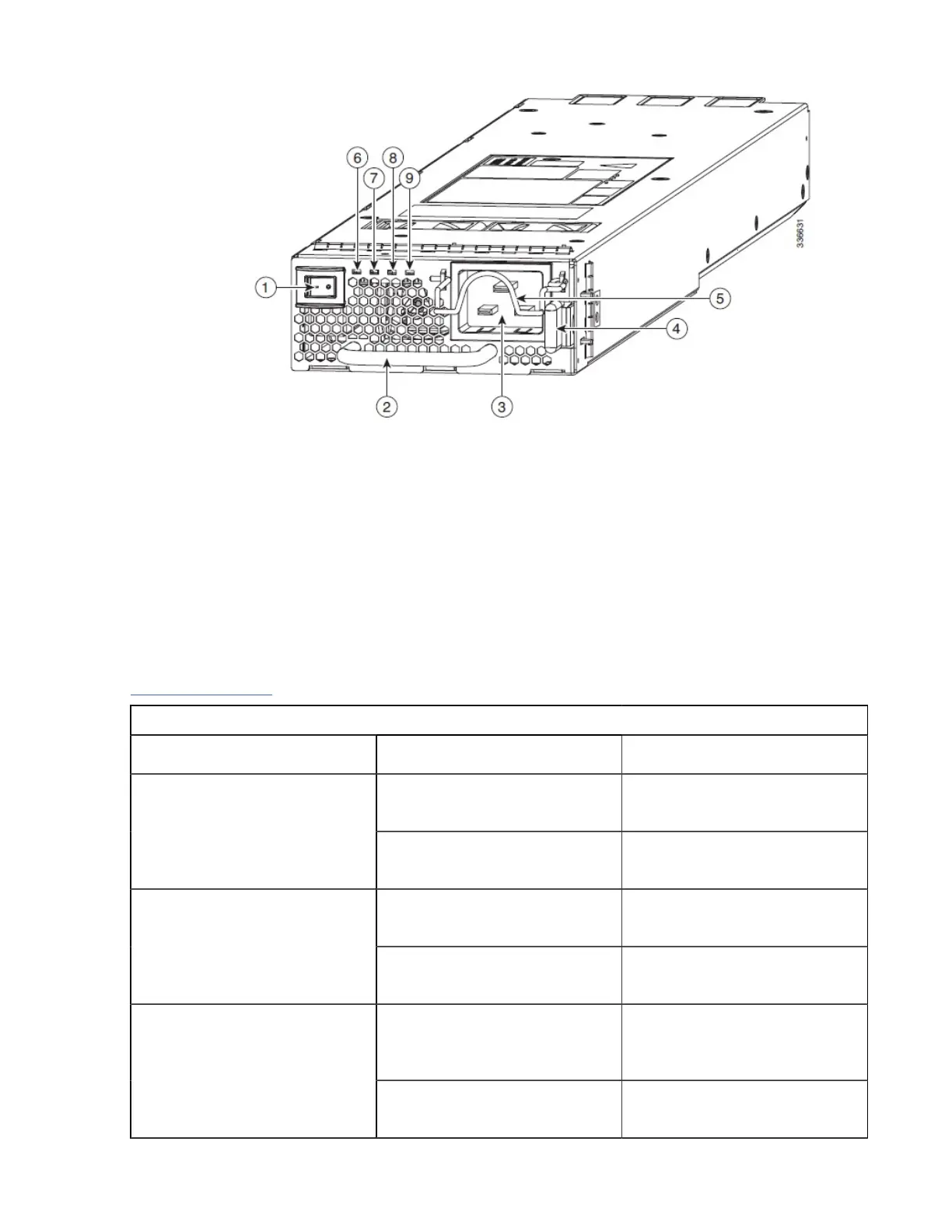

Figure 18. 3000 W AC Power Supply
1. Power supply switch
2. Power module handle
3. AC power connection
4. Unlocking lever
5. Power cable retainer
6. Input power module LED
7. Output power module LED
8. ID power module LED
Table 11 on page 40 describes the power supply LEDs for the IBM c-type SAN directors.
LED Status Description
Green The input voltage is within the
valid range.
Input 1
Off The input voltage is outside the
valid range.
Green The output power is within the
valid range.
Output
Off The output power is outside the
valid range.
Red, blinking (The blinking
stops when the fault condition is
cleared.)
Self-diagnostic tests have failed
or another power supply failure
has occurred.
Fault
Off The output voltage and power
supply unit tests are okay.
Table 11. Power Supply LEDs
40IBM Storage Networking SAN192C-6, SAN384C-6 and SAN768C-6: SAN192C-6, SAN384C-6 and
SAN768C-6 Installation, Service, and User Guide
