400 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

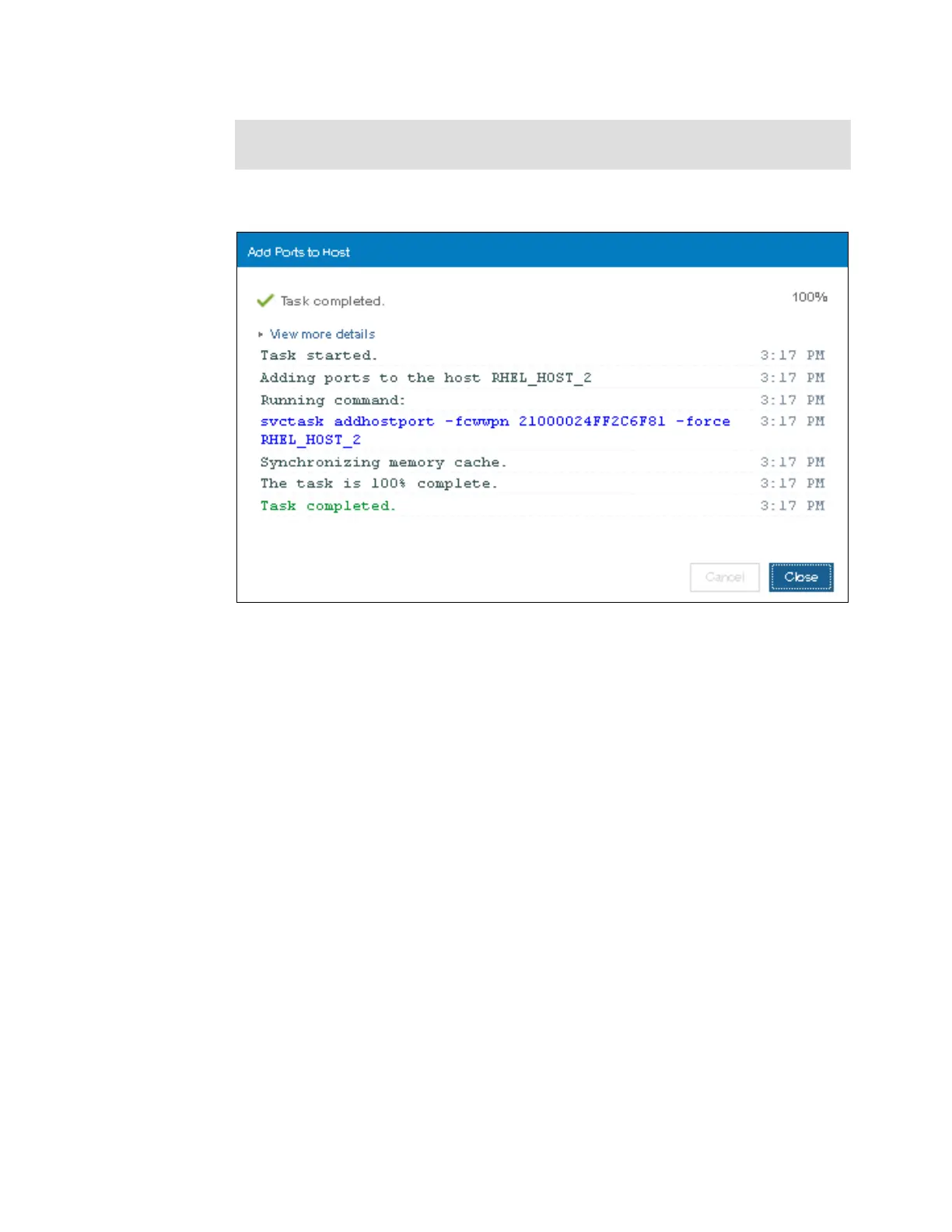

6. Click Add Ports to List. A task completion window displays, as shown in Figure 8-35.

Figure 8-35 Add Ports to Host task completed

Note: If the selected port is not the desired one, then you can click the red cross to

delete it from the selection.
