Chapter 8. Advanced host and volume administration 401

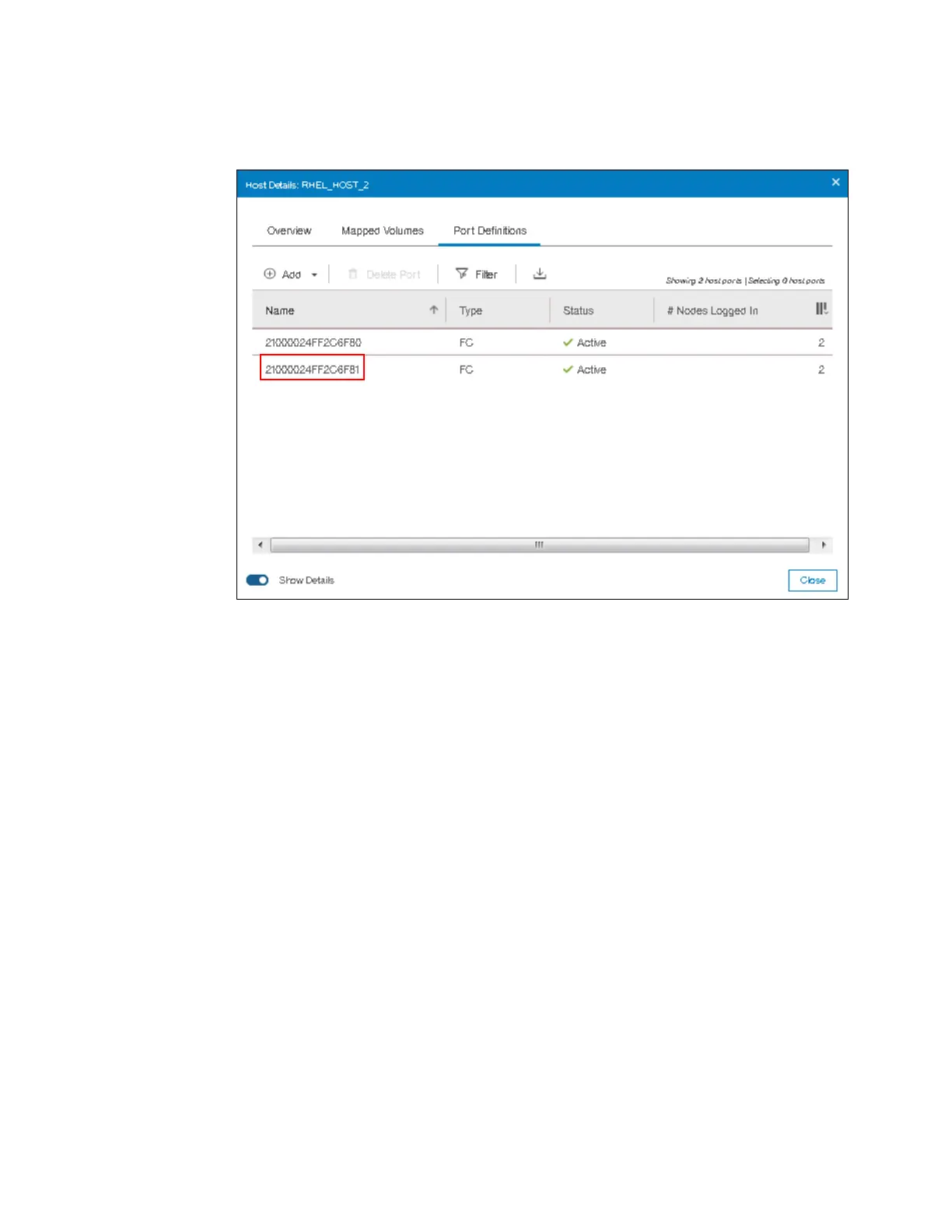

7. The Host Details window now shows the ports defined for the host, including the recently

added one, as shown in Figure 8-36.

Figure 8-36 Port Definitions after adding a port
