720 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

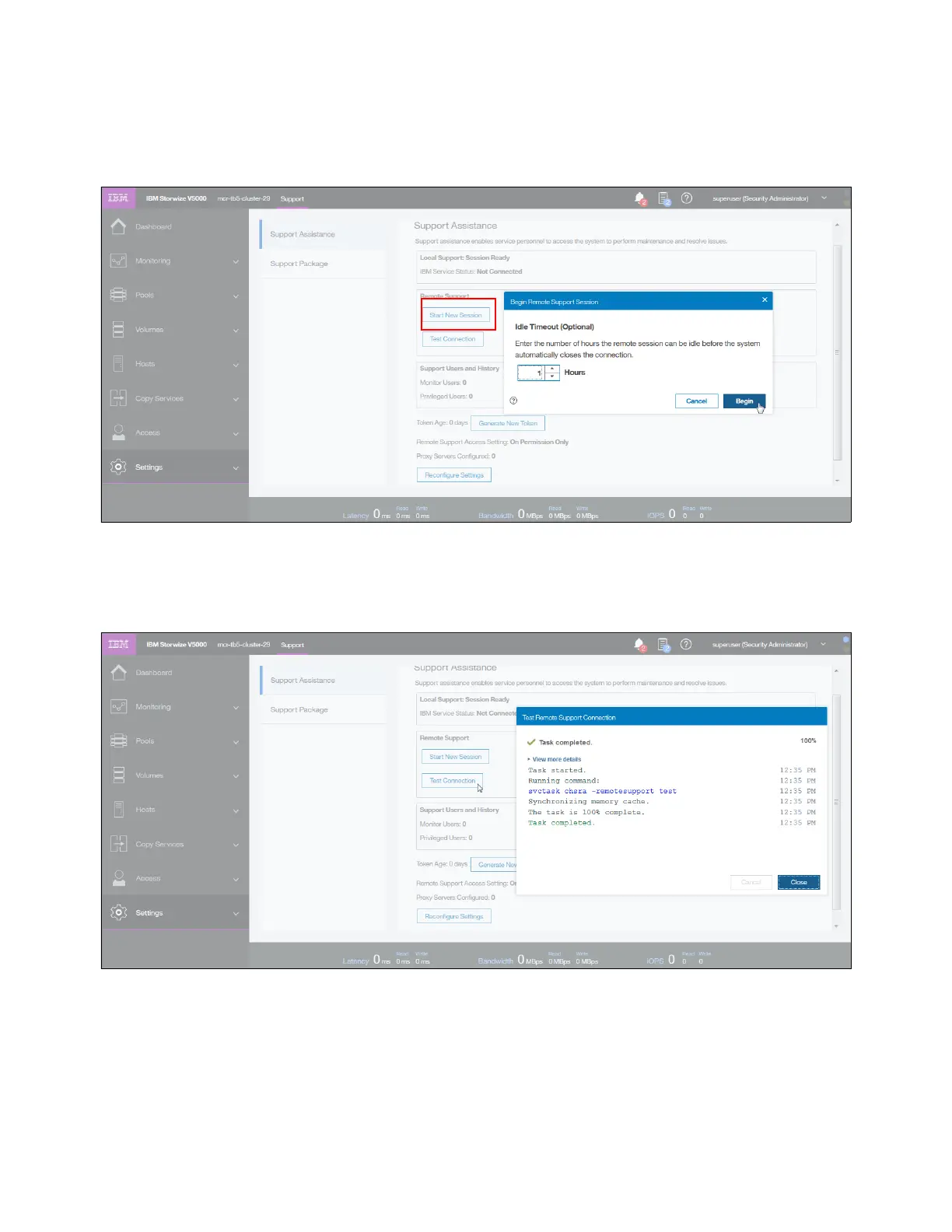

3. Under Support assistance → Start new Session (marked) you can select the time

which the Remote support Session can be idle before the system disconnects the line,

see Figure 12-90.

Figure 12-90 Set Idle time before the line will be disconnected

4. Press Begin to begin a new session.

5. Test Connection lets you test the connectivity, as shown in Figure 12-91.

Figure 12-91 Test connection
