6 Expansion canister
7 SAS ports and indicators
8 Expansion canister indicators
9 Power cable connector for PSU 1
Support rails
Figure 23 on page 34 shows the support rails for the expansion enclosure. The support rails are
packaged separately from the expansion enclosure.

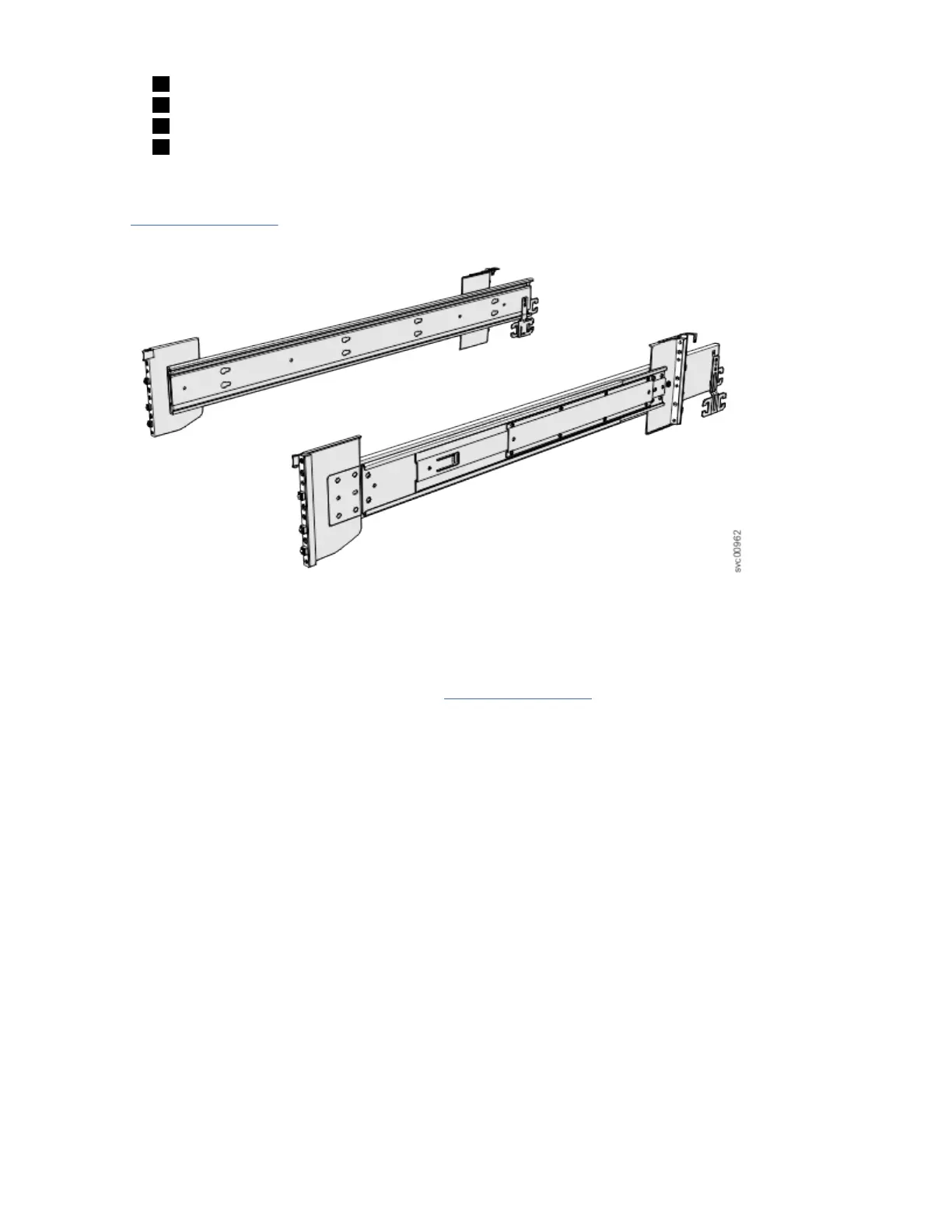

Figure 23. 2077-92F, 2077-A9F support rails
Cable management arm
The cable management arm (CMA), which consists of an upper and lower assembly, are packaged
separately from the expansion enclosure. As Figure 24 on page 35 shows, each CMA assembly is
attached to the rear end of the support rails.
34
Storwize V5100 : Quick Installation Guide for MTM 2078-424, 2078-12F, 2078-24F, 2078-92F, and 2078-
U5B
