Note: Make sure that Port 1 is connected to Port 1 for both backplanes.
Likewise, Port 0 is connected to Port 0 for both backplanes.

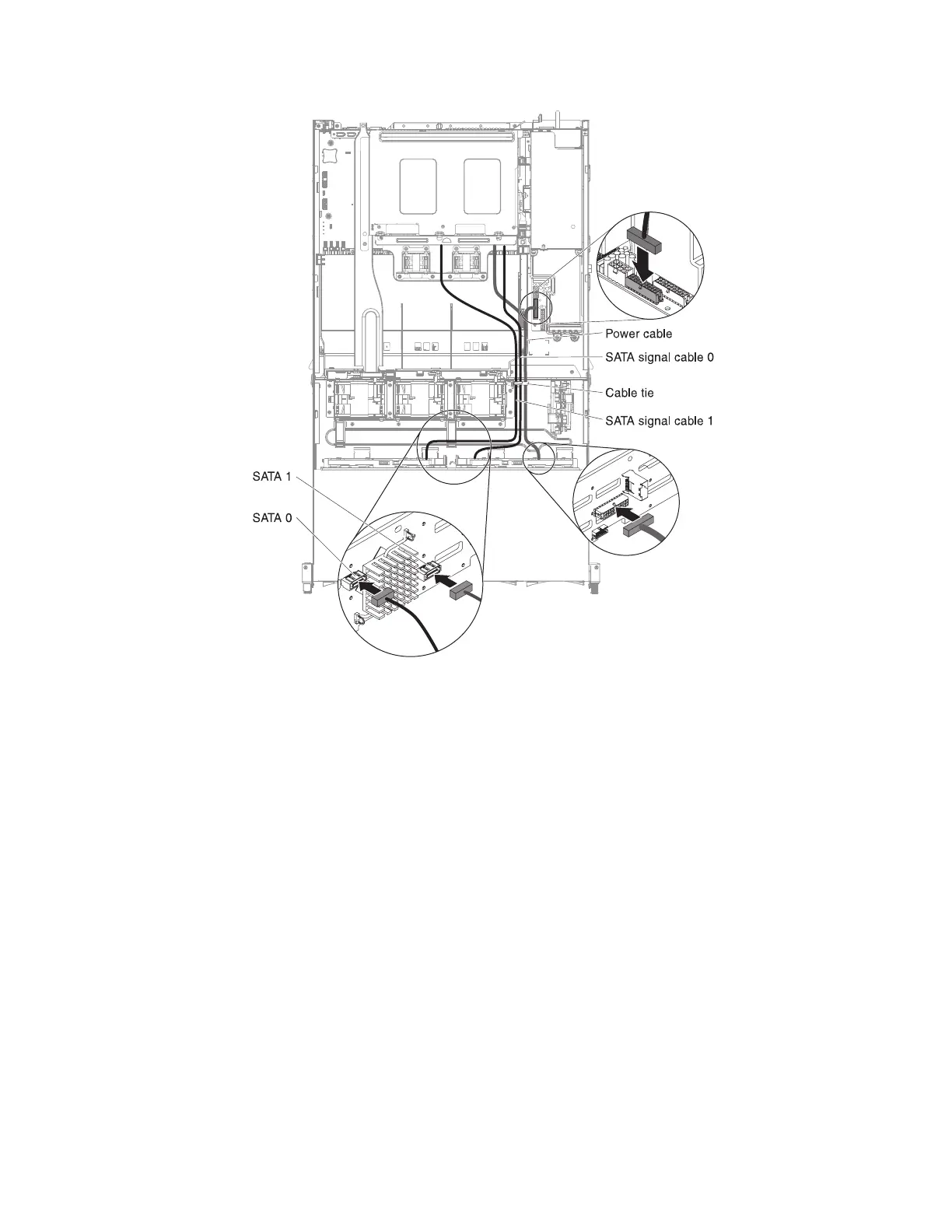

Figure 88. Cable routing
176 System x3650 M4 BD Type 5466: Installation and Service Guide
