Note: Make sure the cables are routed in the proper locations without
blocking the airflow. It is recommended to press all the cables
downwards to make the cable routing easier. Secure the cables with any
cable retention clips.
v Type 2 - SAS
a. Connect the I
2
C signal, SAS signal and power cables to the backplane.
b. Insert the hot-swap backplane onto the rear hard disk drive cage (see
“Replacing the hot-swap backplane on the rear hard disk drive cage” on
page 236.
c. Connect the other ends of the I
2
C signal, SAS signal and power cables.

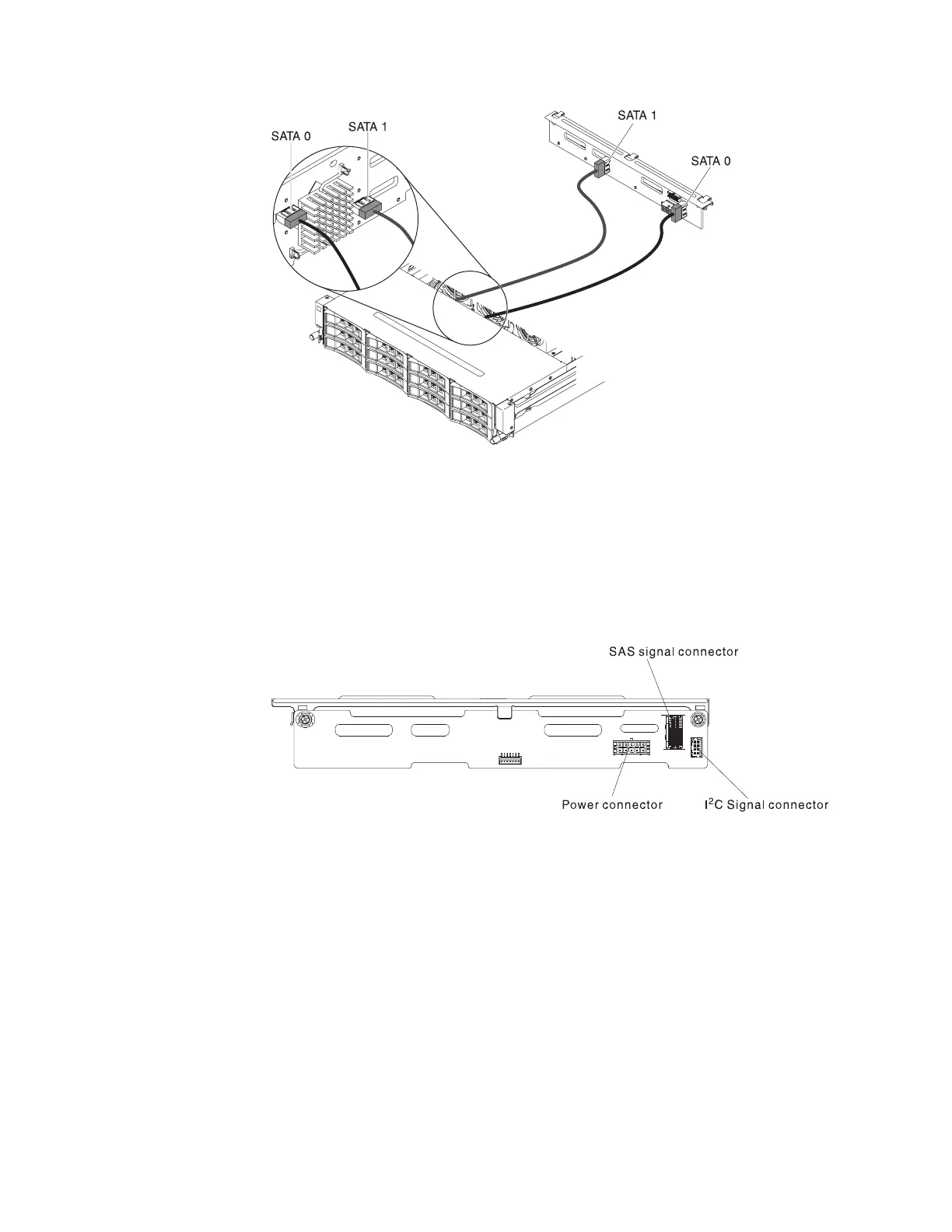

Figure 89. Cable connection
Figure 90. Type 2
Chapter 6. Removing and replacing components 177
