In terms of hot-swap configurations, the server comes with either eight 3.5-inch
SAS/SATA or eight 2.5-inch SAS/SATA hot-swap hard disk drive bays. Most
models contain a ServeRAID SAS controller. The 2.5-inch models are capable of
expansion to twenty-four 2.5-inch SAS/SATA hot-swap hard disk drive bays while
the 3.5-inch models are capable of expansion to twelve 3.5-inch SAS/SATA
hot-swap hard disk drive bays.
Note: The ID for each bay is printed on the server front, above each bay.
The following illustration shows a server with eight 2.5-inch simple-swap hard
disk drive bays. You can purchase an optional kit to install the eight additional
2.5-inch simple-swap hard disk drives to upgrade the server to sixteen 2.5-inch
simple-swap hard disk drive bays.
Note: The basic 2.5-inch simple-swap model supports SATA simple-swap hard
disk drives only. With the simple-swap serveRAID function, it supports SATA and
SAS simple-swap hard disk drives.
The following illustration shows a server with eight 2.5-inch hot-swap hard disk
drive bays.
You can purchase an optional kit to install the eight additional 2.5-inch hard disk
drive bays. The following illustration shows a server with sixteen 2.5-inch
hot-swap hard disk drive bays.
SATA hard disk drive bays
0123 4567

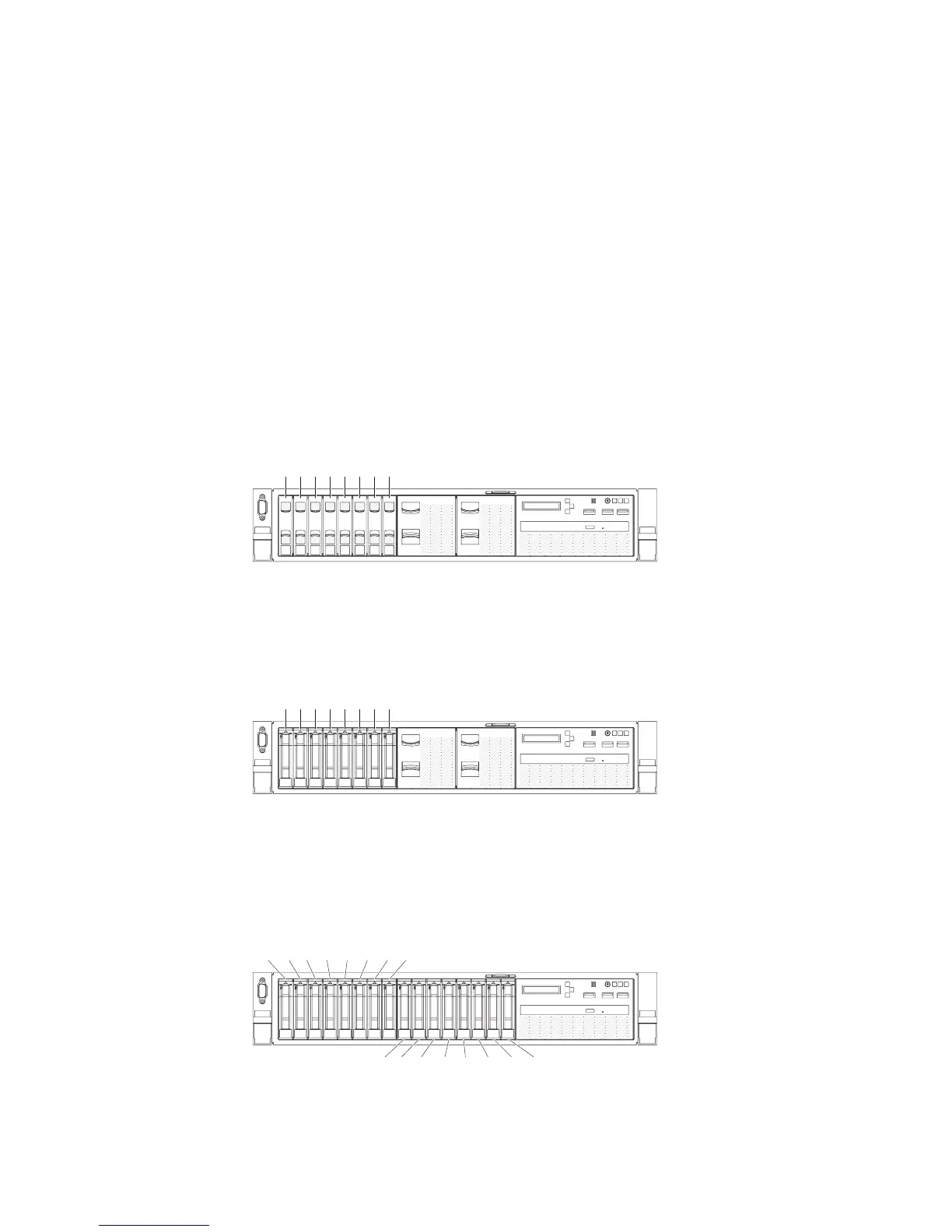

Figure 1. 2.5-inch simple-swap model front view
SATA/SAS hard disk drive bays
0123 4567
Figure 2. 2.5-inch hot-swap model front view
SATA/SAS hard disk drive bays
01234567
8 9 10 11 12 13 14 15
Figure 3. 16-drive-capable model front view
2 System x3650 M5 Type 5462: Installation and Service Guide
