IBM System x3650 M5 - Page 223

7. Tilt the cable cover and remove it from the server.
8. Grasp the EIA assembly and pull it slightly forward to remove it from the
server.

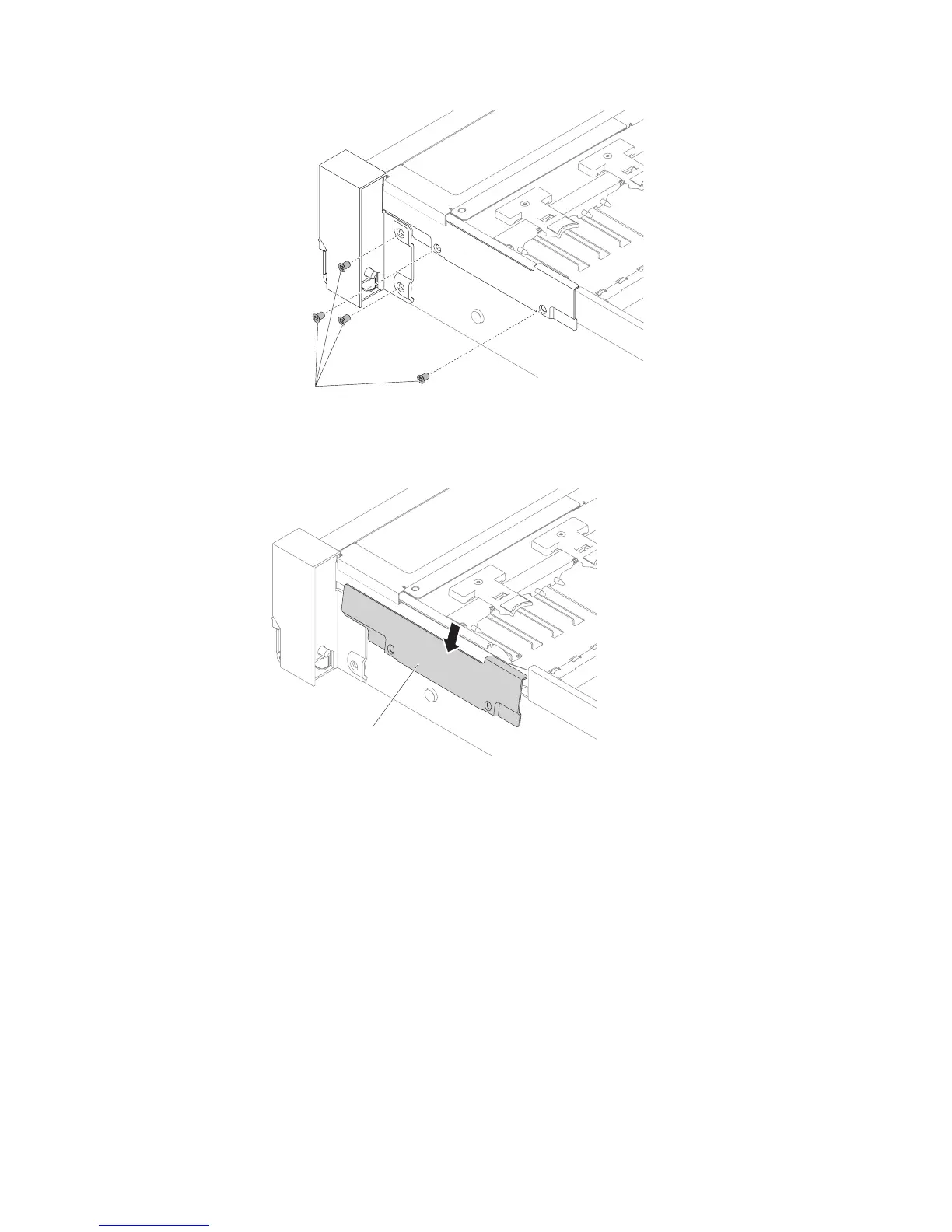

Screws
Figure 139. Screw removal
Cable arm cover
Figure 140. Cable cover removal
Chapter 5. Removing and replacing components 207
