9. Position the EIA assembly as shown in the following illustration; then, remove
the assembly out of the server.
10. If you are instructed to return the EIA assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied
to you.
For the left EIA assembly
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Turn off the server and peripheral devices, and disconnect the power cord and
all external cables.
3. Remove the cover (see “Removing the top cover” on page 146).
4. Remove the fan cage assembly (see “Removing the fan cage assembly” on page
172).
5. Disconnect the front video cable from the system board.

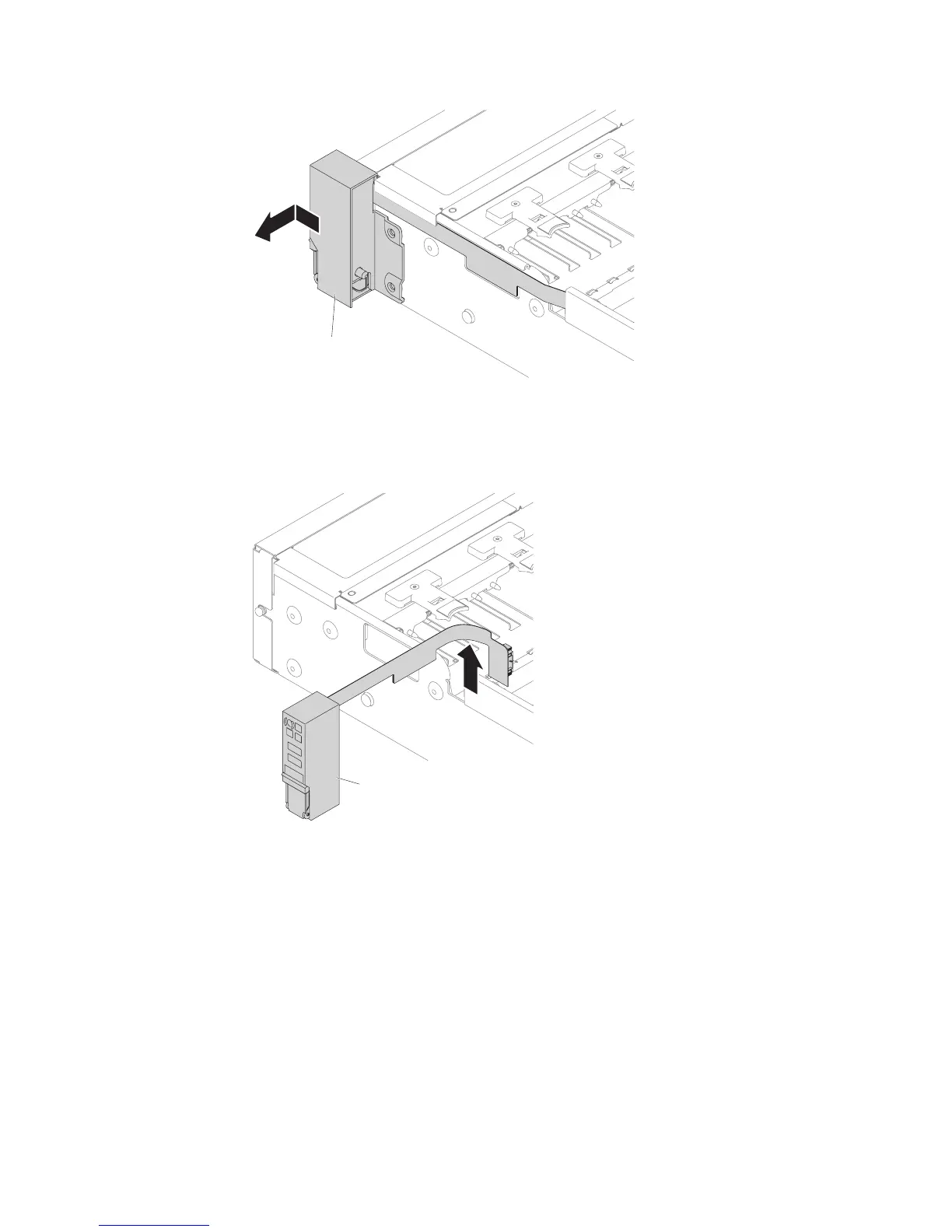

EIA assembly
Figure 141. EIA assembly removal
EIA assembly
Figure 142. EIA assembly removal
