10. If you are instructed to return the EIA assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied
to you.
For the left EIA assembly
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Turn off the server and peripheral devices, and disconnect the power cord and
all external cables.
3. Remove the top cover (see “Removing the top cover” on page 146).
4. Remove the fan cage assembly (see “Removing the fan cage assembly” on page
172).
5. Disconnect the front video cable form the system board.
Note: Disengage all latches, release tabs or locks on cable connectors when you
disconnect all cables from the system board. Failing to release them before
removing the cables will damage the cable sockets on the system board. The
cable sockets on the system board are fragile. Any damage to the cable sockets
may require replacing the system board.

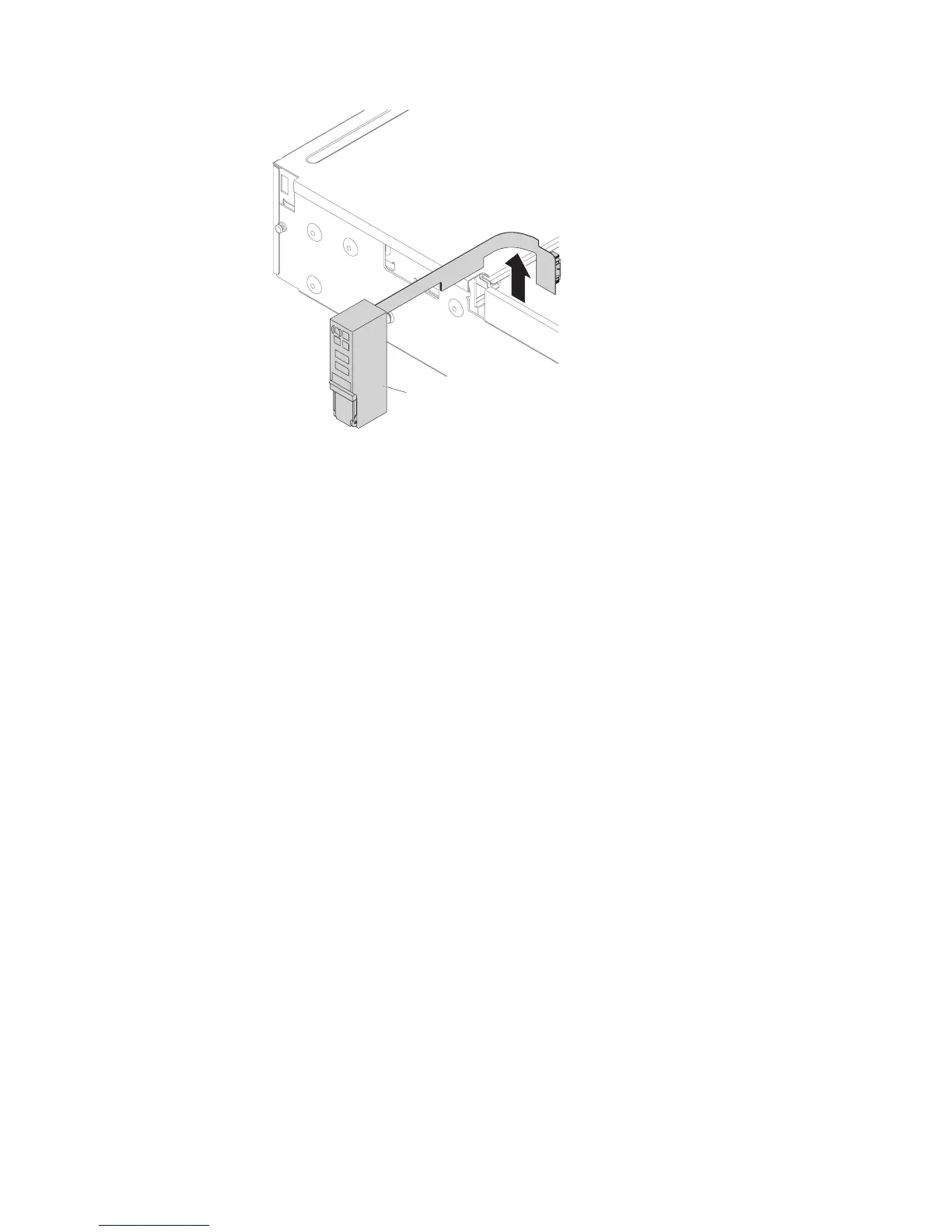

EIA assembly
Figure 151. Cable removal
Chapter 5. Removing and replacing components 213

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
