7. To remove the cable cover, angle the cable cover as shown in the following
illustration and slide the cable cover slightly towards the rear side of the
server to remove it from the server.
8. Grasp the EIA assembly and pull it slightly forward to remove it from the
server.
9. Position the EIA assembly as shown in the following illustration; then, remove
the assembly out of the server.
1
2
Cable arm cover

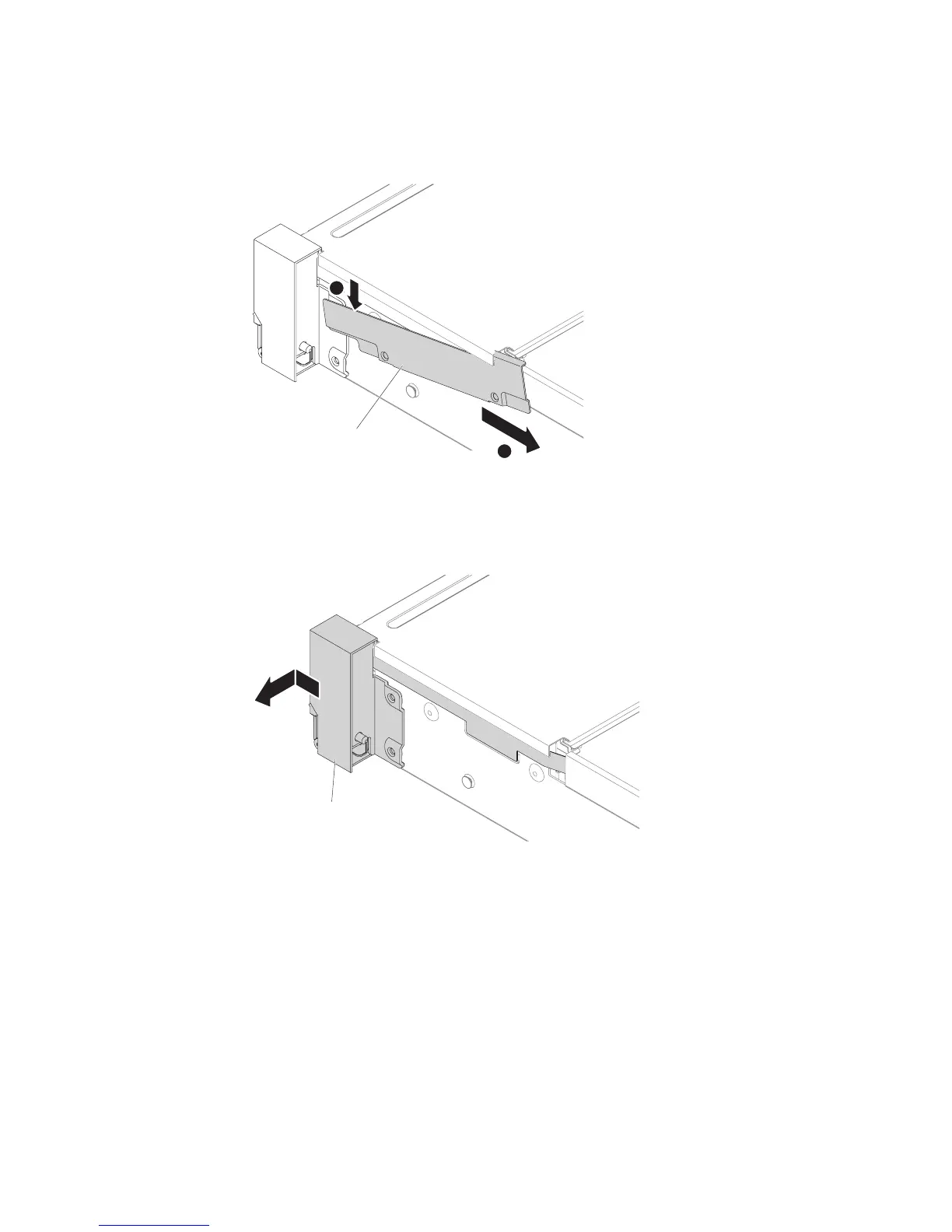

Figure 149. Cable cover removal
EIA assembly
Figure 150. EIA assembly removal
212 System x3650 M5 Type 5462: Installation and Service Guide
