IBM System x3650 M5 - Page 233

7. Push the EIA assembly slightly toward the rear of the server to fix the EIA
assembly on the server.
8. Tilt and install the cable cover.
EIA assembly
Alignment pin

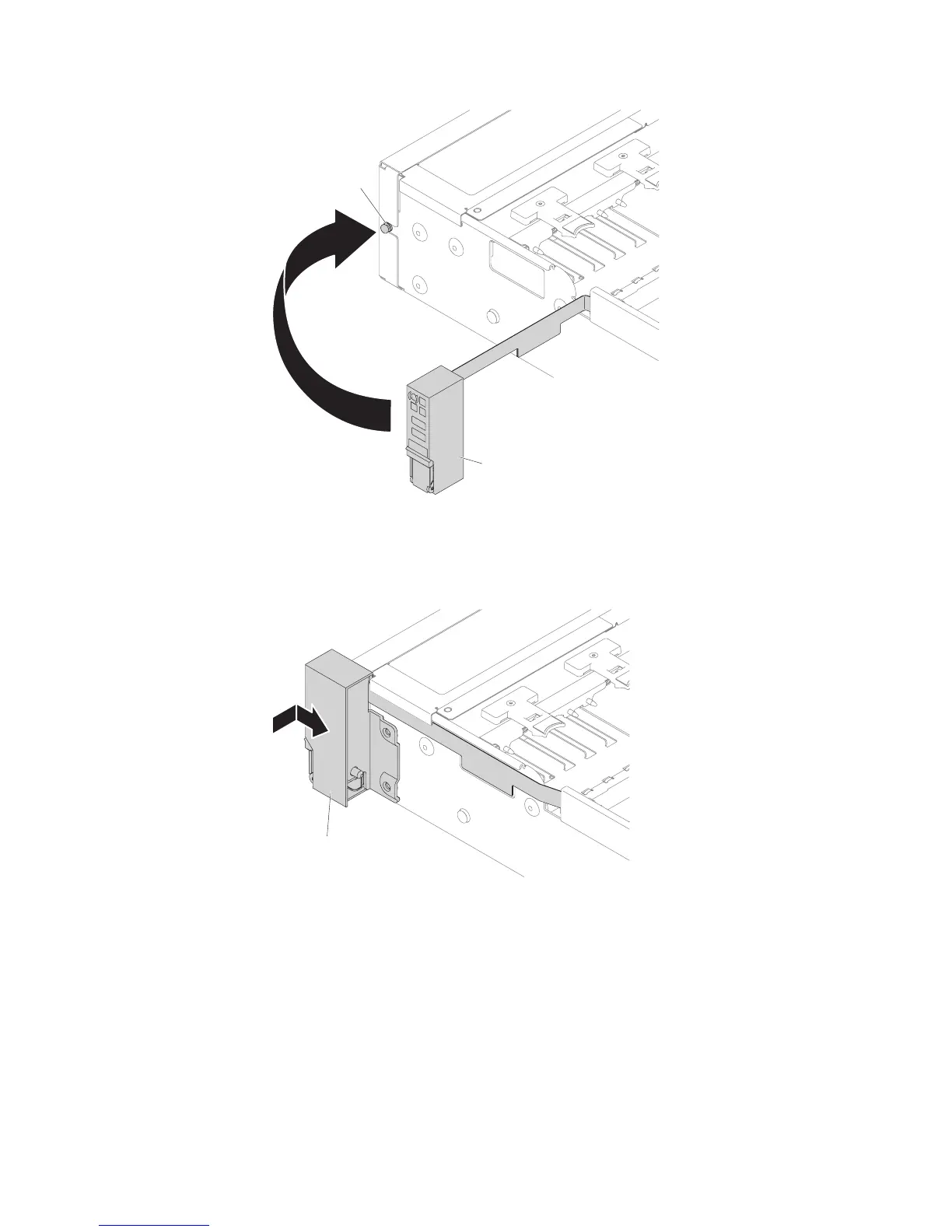

Figure 157. EIA assembly alignment
EIA assembly
Figure 158. EIA assembly installation
Chapter 5. Removing and replacing components 217
