7. Tilt and install the cable cover.
8. Fasten screws.

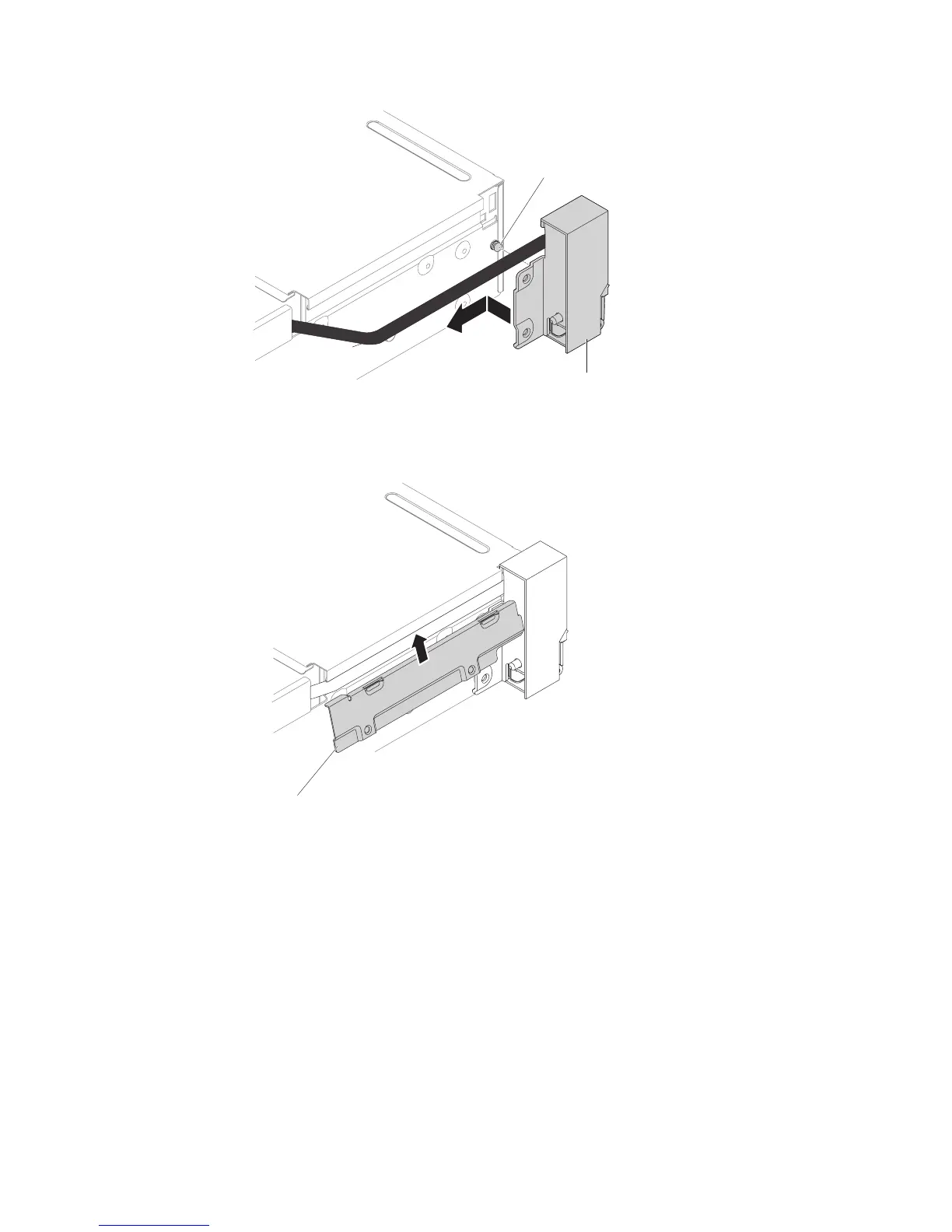

Alignment pin
EIA assembly
Figure 174. EIA assembly alignment
Cable arm cover
Figure 175. Cable cover installation
226 System x3650 M5 Type 5462: Installation and Service Guide
