8. Carefully remove the LCD system information display panel out of the LCD
panel assembly.
9. If you are instructed to return the LCD panel assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Removing the LCD system information display panel on a 2.5-inch model
To remove the LCD system information display panel inside the media cage on a
2.5-inch model, complete the following steps.
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables, if necessary.
3. Remove the top cover (see “Removing the top cover” on page 146).
4. Remove the fan cage assembly“Removing the fan cage assembly” on page 172).
5. Remove the media cage (see “Removing the media cage” on page 176),
6. Disconnect the cable from the back of the LCD system information display
panel.
Note: To disconnect the cable, press evenly on the connector release latch first;
then, pull the cable out.

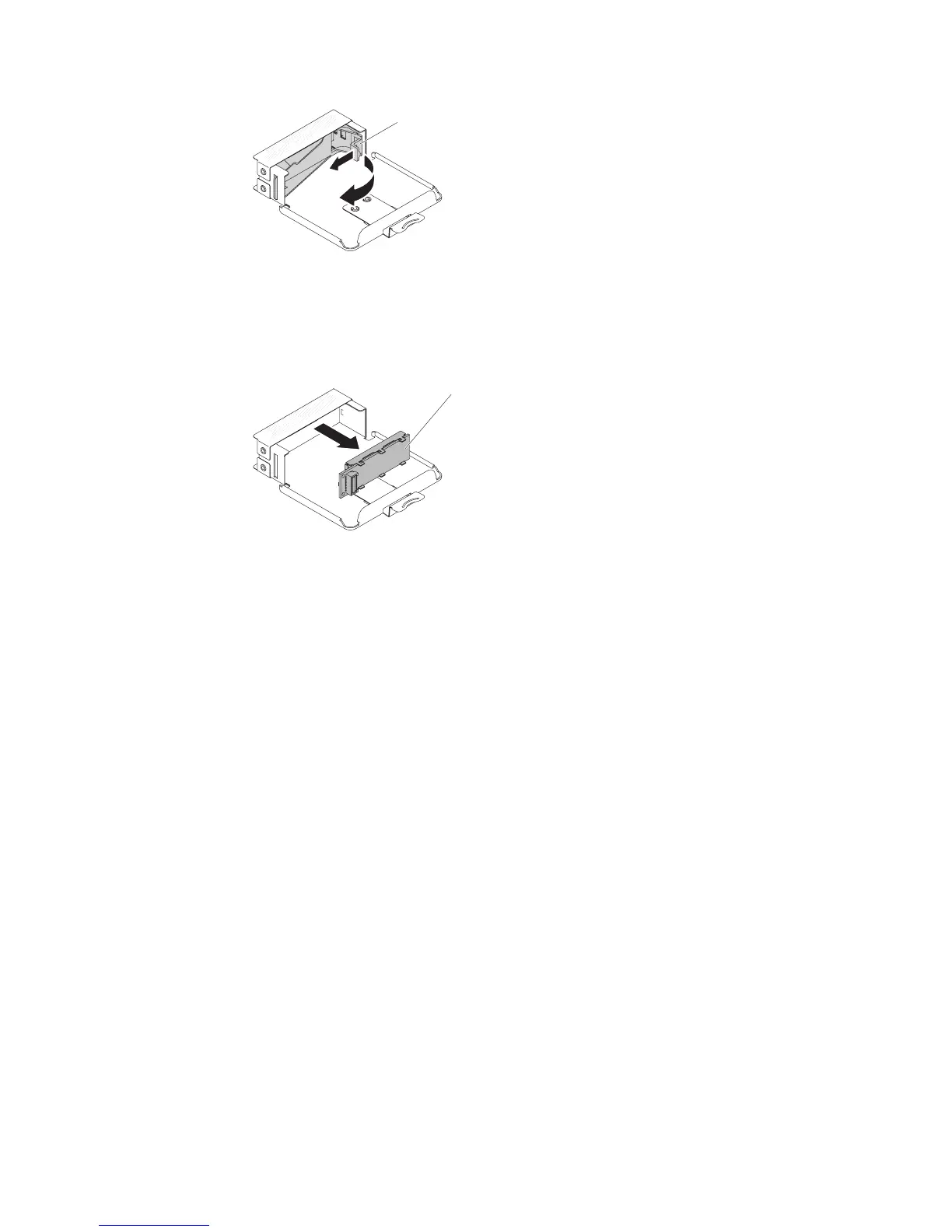

7. ▌1▐Pull the tab on the LCD retention bracket to the left to disengage the
retention bracket. ▌2▐Rotate the retention bracket to remove it from the server.
Retention bracket
Figure 194. Retention bracket removal
LCD system information
display panel
Figure 195. LCD system information display panel removal
246 System x3650 M5 Type 5462: Installation and Service Guide
