Important: Some cluster solutions require specific code levels or coordinated code
updates. If the device is part of a cluster solution, verify that the latest level of
code is supported for the cluster solution before you update the code.
To install the system board, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii, “Handling
static-sensitive devices” on page 285, and “Installation guidelines” on page
283.
2. Align the system board with the slots on the side of the chassis and lower the
right side into the chassis first; then, lower the other side of the system board
into the chassis.
3. ▌1▐Slide the system-board toward the rear of the server to secure it in place.
4. ▌2▐Tighten the two thumbscrews to secure the system board to the chassis.
1
2

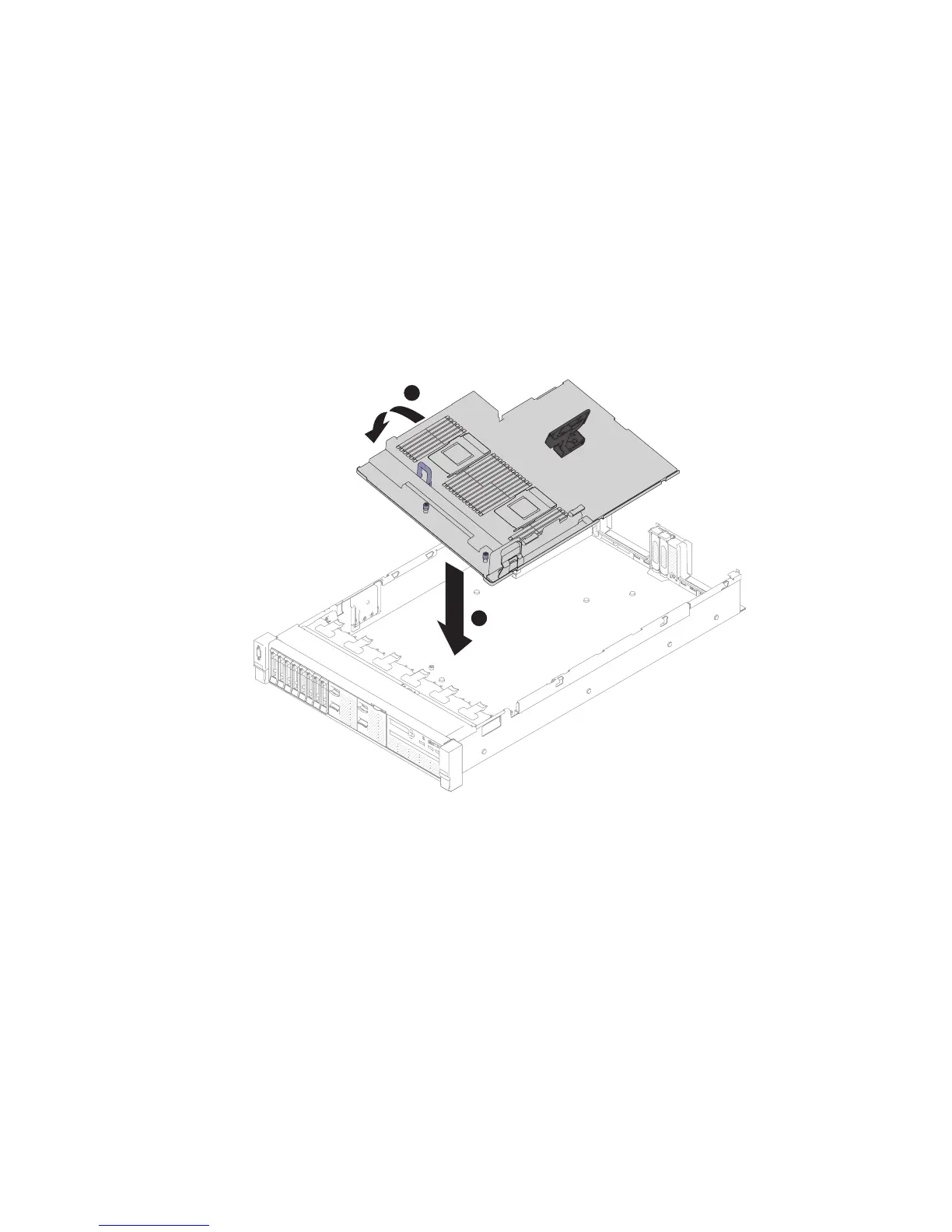

Figure 243. System board installation
280 System x3650 M5 Type 5462: Installation and Service Guide

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
