b. If the expander is installed in slot 2, route cables as the following
illustration.
Note: Use right angle mini SAS HD Y-cable to connect to PCI expansion
slots 4.
SAS signal cables
Power / configuration
cables
SAS 0
SAS 1
SAS 0
SAS 1
SAS 0
SAS 1

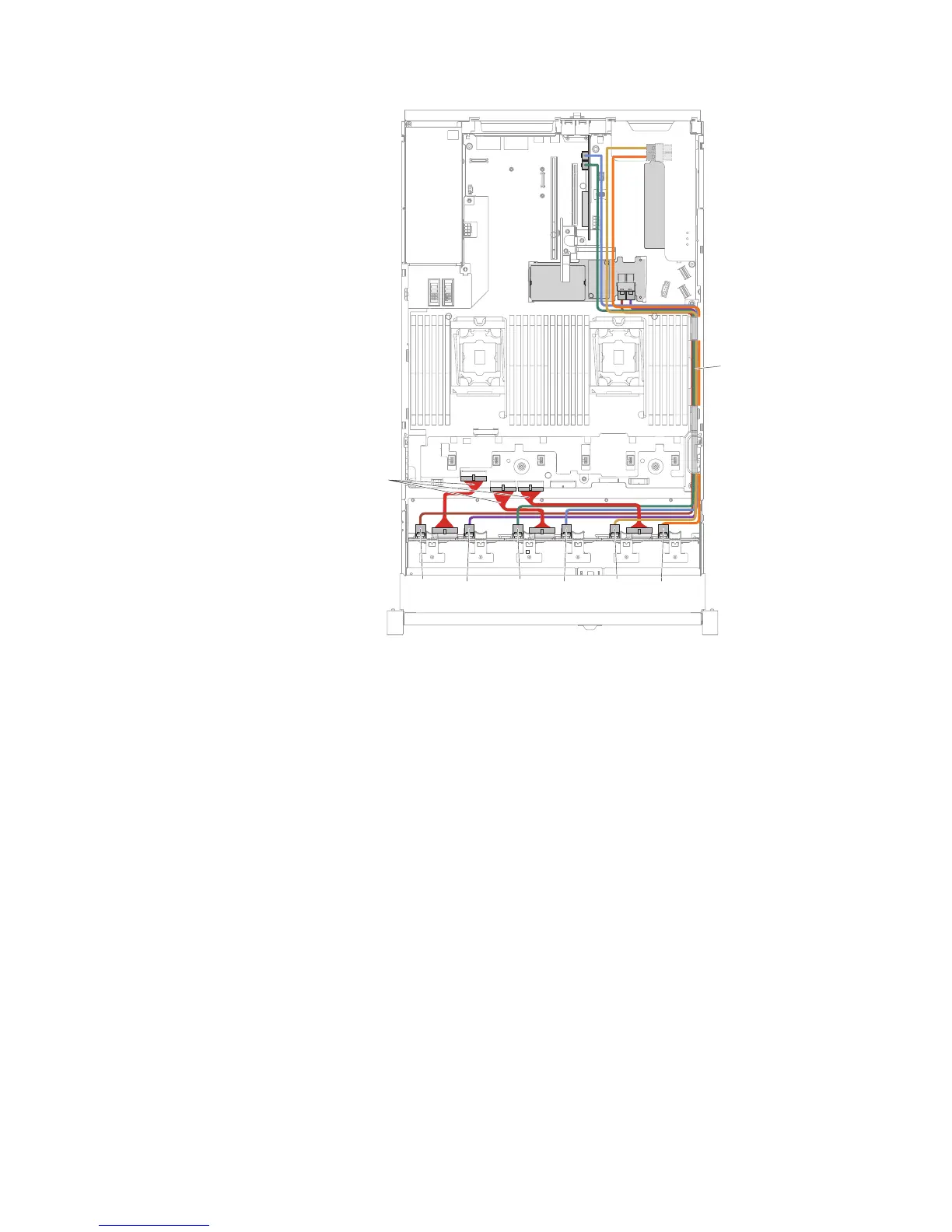

Figure 254. Cable routing
Chapter 5. Removing and replacing components 295
