5. To obtain more working room, remove the fan cage (see “Removing the fan
cage assembly” on page 172).
6. Pull the hard disk drives or fillers out of the server slightly to disengage them
from the backplanes. For more information, (see “Removing a hot-swap hard
disk drive” on page 154).
7. Disconnect all cables from the system board and backplanes.
8. Install the new backplane in slot 2 or slot 3 depending on your configuration.
Insert the backplane tabs into slots on the bottom of the cage and push the
backplane forward into the release latch (on top of the backplane cage) until
the backplane is locked in place.
Note: You can connect the cables to the drive backplane before installing the
backplane onto the cage or you can connect the cables after you install the
backplane, if that is easier for you.
9. Connect mini-SAS HD cables, power/configuration and Mini-SAS HD Y-cable
which come with the option kit to the backplanes and the system board.

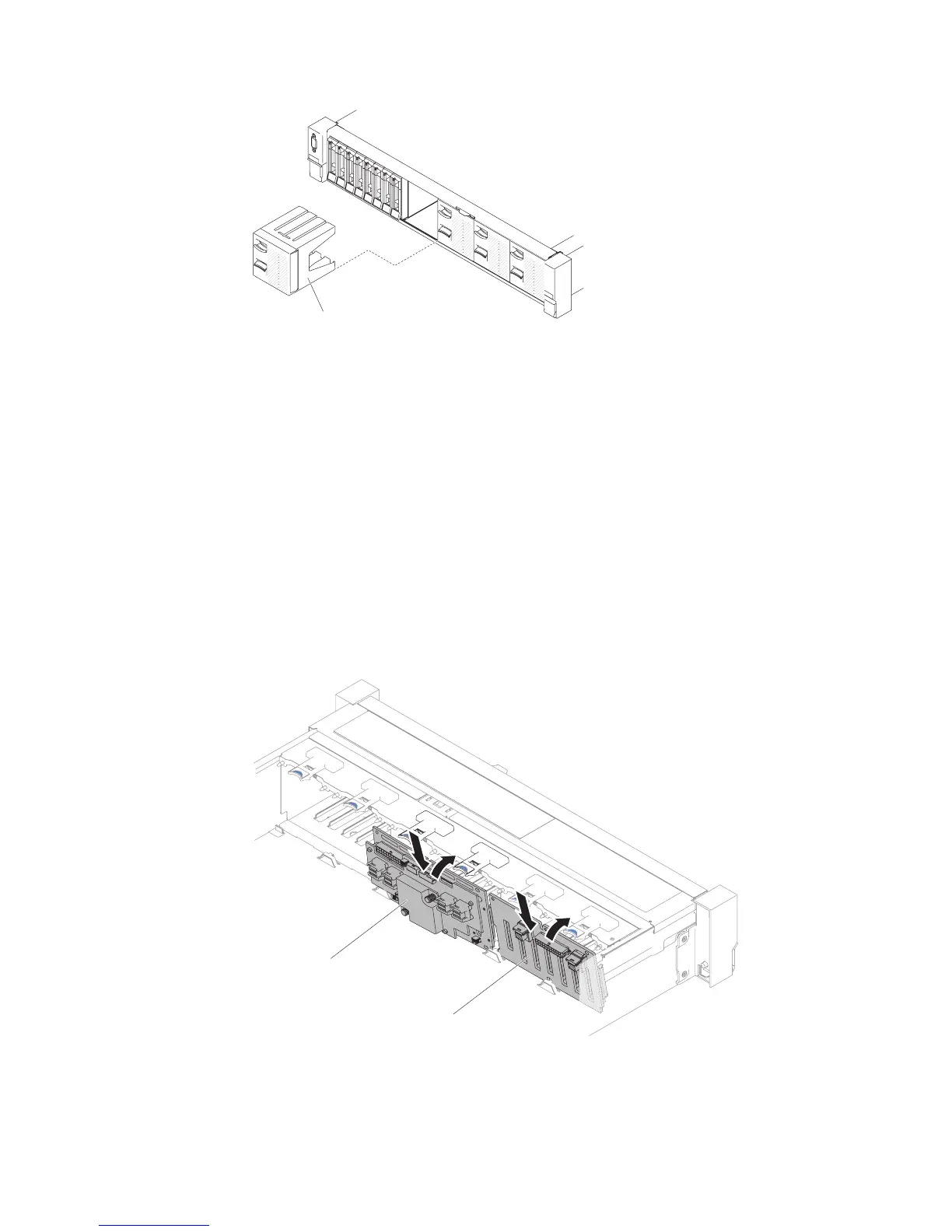

4-drive filler panel
Figure 257. Filler panels
2.5-inch HDD hot-swap backplane
2.5-inch HDD hot-swap
backplane (expander)
Figure 258. Expander installation
298 System x3650 M5 Type 5462: Installation and Service Guide

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
