IBM x3630 M3 7377 User Manual

dual-rank, and quad-rank DIMM in the server, install the quad-rank DIMM first in
DIMM connector 8 (for microprocessor 1) or DIMM connector 16 (for
microprocessor 2).
v 1.35V DIMMs are only supported on server models with an Intel Xeon
™
5600
series microprocessor.
v If you install a ServeRAID-M1015 SAS/SATA adapter, make sure at least 2 GB of
memory is installed in the server before you run DSA from a bootable CD.
v Do not install 1.5V DIMMs and 1.35V DIMMs in the same server.

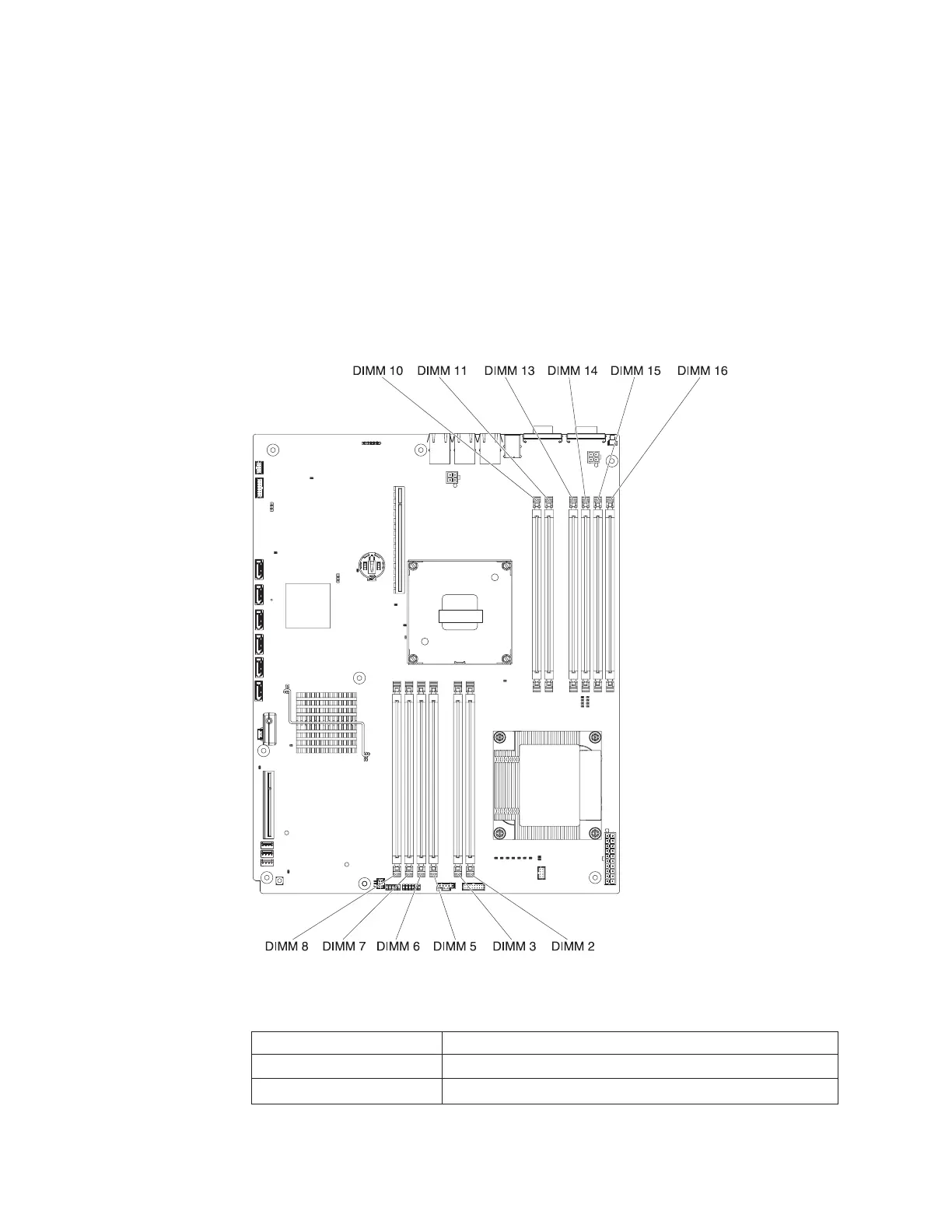

DIMM installation sequence
The server requires at least one DIMM per microprocessor. Depending on the
server models, the server may come with one 2 GB RDIMM or 4 GB RDIMM, or
three 4 GB RDIMMs.
When you install additional DIMMs, install them in the order shown in “DIMM
installation sequence,” to maintain performance.
Table 11. Non-mirroring (normal) mode DIMM installation sequence
Microprocessors installed DIMM connector population sequence
1 3,6,8,2,5,7
2 3, 11, 6, 14, 8, 16, 2, 10, 5, 13, 7, 15,
164 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
