PANEL DESCRIPTION
1-6
Touch screen (Continued)
!6 LOCK ICON
(p. 3-10)
Appears while the Lock Function is ON.
appears while the 1/4 Tuning function is ON.
(p. 3-5)
!7 RIT ICON (p. 4-2)
Appears while the RIT function is ON.
!8 TX ICON (p. 4-11)
Appears while the TX function is ON.
!9 SHIFT FREQUENCY READOUT
Displays the shift offset of the RIT (p. 4-2) or
TX (p. 4-11) functions, while the functions are ON.

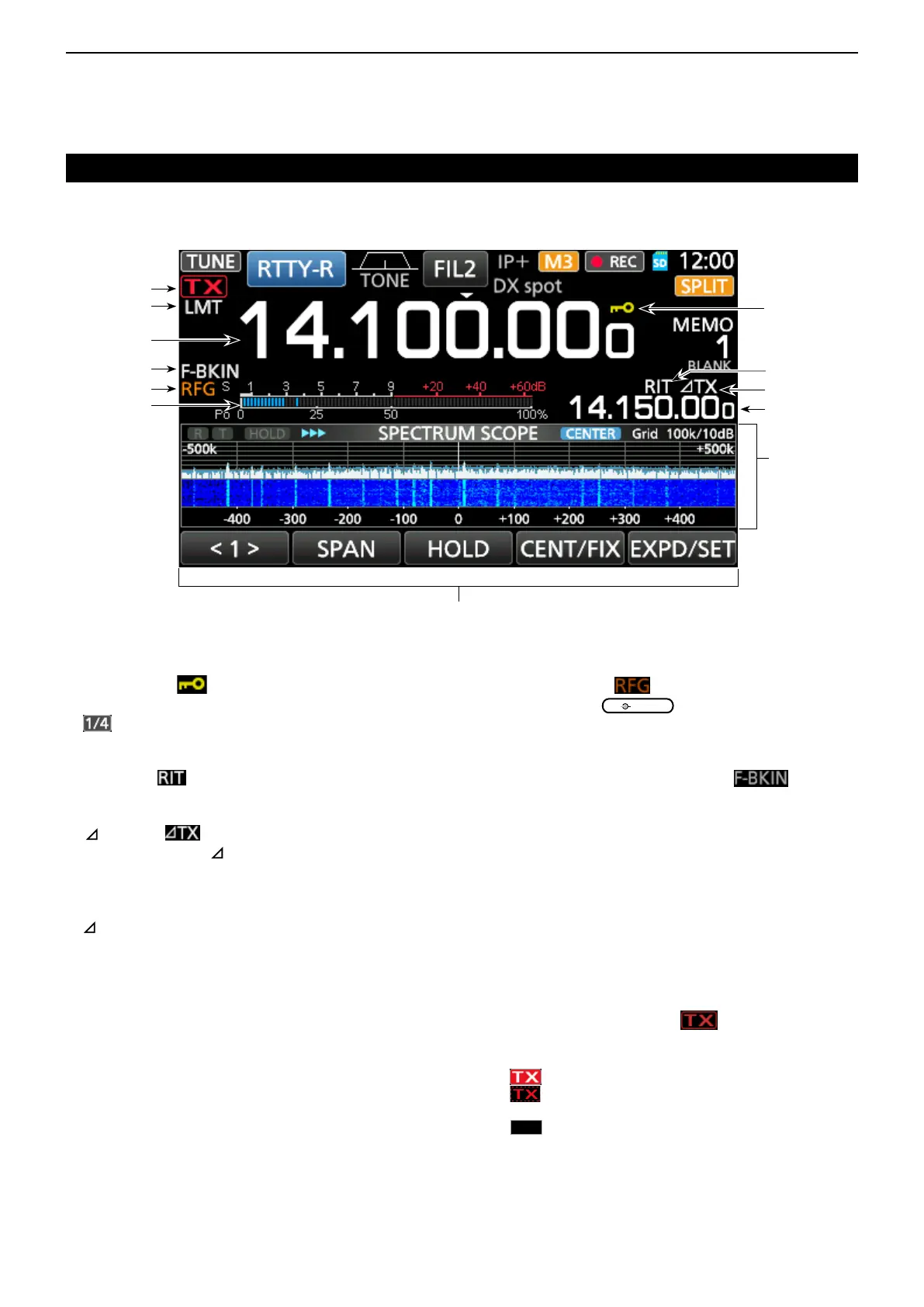

@0 SPECTRUM SCOPE SCREEN (p. 5-2)
Displayed while using the Spectrum Scope.
@1 FUNCTION DISPLAY
Displays the operating parameters, modes,
frequencies and indicators, depending on your
selections.
@2 MULTI-FUNCTION METER (p. 3-11)
Displays various strengths and levels, depending
on the function you select.
@3 RF GAIN ICON (p. 3-10)
Appears when
AF RF/SQL
(outer) is set to the
counterclockwise from the 11 o’clock position. The
icon indicates that the RF gain is reduced.
@4 BK-IN/F-BKIN/VOX INDICATOR (p. 4-15)
Appears while the Semi Break-in, Full Break-in or
VOX function is ON.
@5 FREQUENCY READOUT (p. 3-4)
Displays the operating frequency.
@6 LMT ICON (p. 13-4)
 Appearsifthepowerampliertemperature
becomes extremely high and the Protection
function is activated after transmitting continuously
for long periods of time.
@7 TX STATUS INDICATOR (p. 3-10)
Displays the transmit status of the displayed
frequency.
• appears while transmitting.
•
appears when the selected frequency is outside of
the amateur band frequency range.
•
TX
appears while transmitter is inhibited (p. 3-4)
@7
@4
@3
!8
!9
@5
@2
@0
@1
!7
@6
!6
