#3
TRANSMIT FREQUENCY CHECK SWITCH [XFC]
➥ During split frequency or repeater operation,
hold down to listen to the transmit frequency.
(pp. 52, 56)
•While holdingdown this switch, the transmit fre-
quency can be changed with [DIAL], keypad or
memo pad.
•Whenthe Split Lockfunction isturnedON,push
[XFC] to cancel the Dial Lock function. (p. 67)
➥ When the RIT function is turned ON, hold down
to listen to the displayed frequency (RIT is
temporarily cancelled). (p. 53)
➥ When the ∂TX function is turned ON, hold down
to listen to the transmit frequency (including ∂TX
frequency offset). (p. 65)
#4 UP/DOWN SWITCHES [Y]/[Z]
➥ Push to change the operating channel. (p. 69)
➥ Hold down to continuously change the operating
channel.
#5 VFO EQUALIZE SWITCH [A=B] (p. 24)
Hold down for 1 second to equalize frequencies of
VFO A and B.
#6 VFO SELECT SWITCH [A/B] (p. 24)
Push to select either VFO A or VFO B to display.
•“VFOA”or“VFOB”isdisplayed,dependingonthese-
lection.
#7 SPLIT SWITCH [SPLIT]
➥ Push to turn the Split function ON or OFF. (p. 66)
•“SPLIT”appearswhentheSplitfunctionisON.
➥ Hold down for 1 second to activate the Quick
Split function.
(p. 67)
•Thetransmitfrequencyshiftsfromthereceivefre-
quency according to the “FM SPLIT Offset HF/50”
setting in the Set mode. (p. 86)
•TheQuickSplitfunctioncanbeturnedOFFinthe
“Quick SPLIT” item of the Set mode. (p. 86)
#8 BAND KEYS/KEYPAD
BAND KEYS Operation (p. 25)
➥ Push to select the operating band.
•[GENE•]selectsthegeneralcoverageband.
➥ Pushing the same key two or three times calls
up other stacked frequencies in the frequency
band.
•Icom’striplebandstackingregistermemorizesthree
frequencies in each frequency band.
KEYPAD Operation (p. 26)
After pushing [F-INP ENT], push the keys on the
keypad to enter a frequency. After entering, push
[F-INP ENT] to set the frequency.
•Example;toenter14.195MHz:
Push[F-INPENT][1][4][•][1][9][5][F-INPENT].
#9 PBT CLEAR SWITCH [PBT-CLR] (p. 59)
(Mode: SSB/CW/RTTY/AM)
➥Push to display the filter passband width and
shifting value for 2 seconds on the function dis-
play.
➥Hold down for 1 second to reset the PBT set-
tings.
$0 PASSBAND TUNING CONTROLS [TWIN-PBT]
(p. 59)
(Mode: SSB/CW/RTTY/AM)
Adjusts the receiver’s IF filter passband width using
the DSP circuit.
•Rotate this control or push [PBT-CLR] to display the
PBT settings (passband width and shifting value) for 1
second on the function display.
•Holddown[PBT-CLR]for1secondtoclearthePBT
settings.
•ThePBTisadjustablein50HzstepsintheSSB,CW
and RTTY modes, and 200 Hz in the AM mode. In this
time, the shift value changes in 25 Hz steps in the SSB,
CW and RTTY modes, and 100 Hz in the AM mode.
•ThesecontrolsfunctionasanIFshiftcontrol.

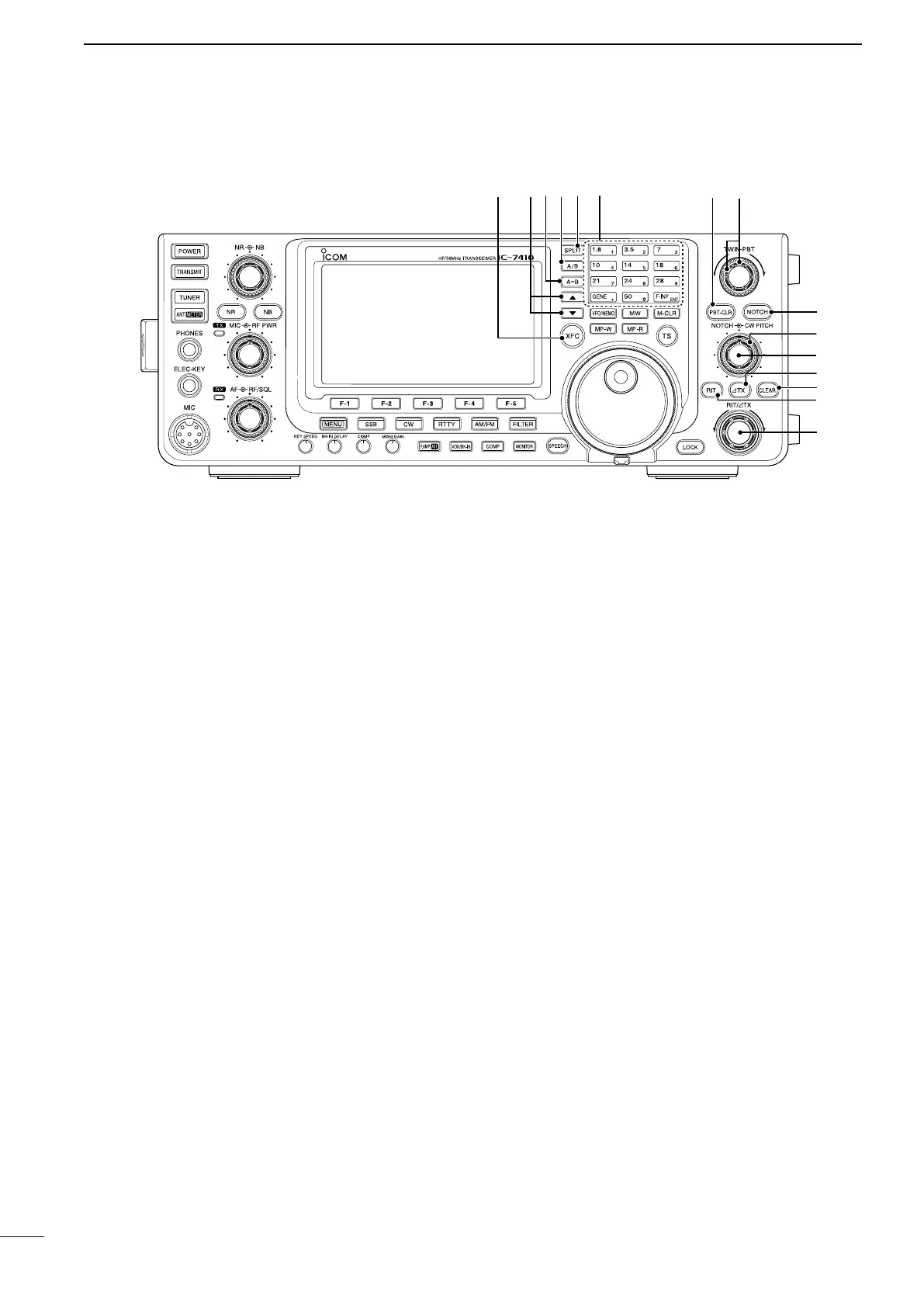

■ Front panel (continued)
5
1
PANEL DESCRIPTION
#6 #7 #8#83 #4#5
#9
$0
$2
$3
$1
$5
$6
$4
$7
