Icom IC-i7410 User Manual

58
5
FUNCTIONS FOR RECEIVE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

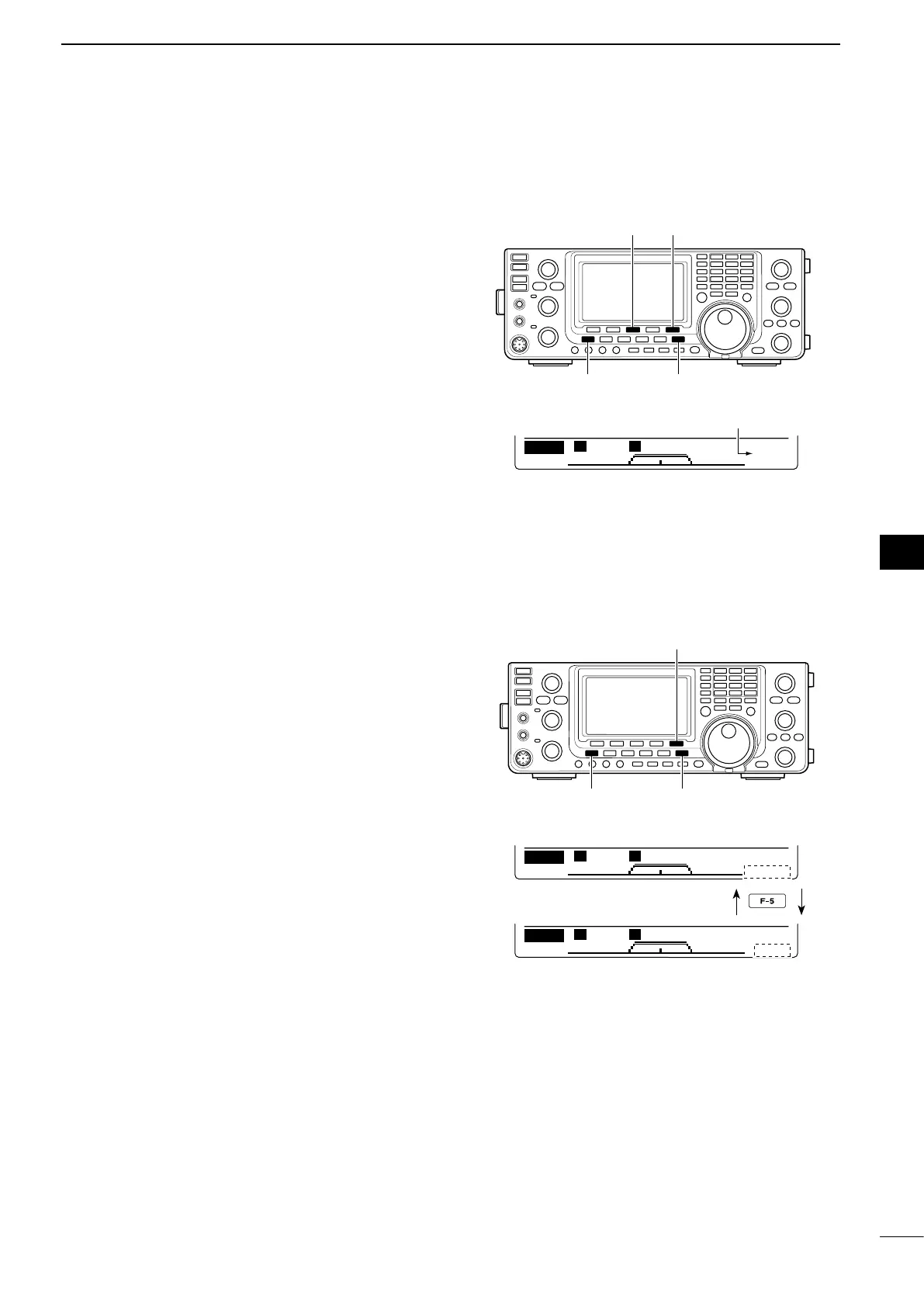

D 1st IF lter selection
(Mode: SSB/CW/RTTY/AM)
The IC-7410 has a 15 kHz filter passband width at the
1st IF frequency. The 1st IF filters reduce interference
from strong nearby signals.
If the optional FL-430 1s t if f i l t e r (6 khz) is installed,
a 6 kHz filter width can be used . Or, if the FL-431 1s t
if f i l t e r (3 khz) is installed, a 3 kHz filter width can be
used .
q Hold down [FILTER] for 1 second to display the
“FIL” screen (Filter).
w Select SSB, CW, RTTY or AM mode.
 •ThepassbandwidthfortheFMmodeisxed.
e Hold down [F-5] for 1 second to select the desired
filter width from 15 kHz, 6 kHz and 3 kHz.
 •Holddown[F-3]for1secondtoresettothedefaultlter
setting, if desired. (The filter passband width setting is
also reset to the default setting.)
r Push [MENU] to save, and exit the “FIL” screen.
D IF (DSP) lter shape
(Mode: SSB/CW )
A soft or sharp type of DSP filter shape for both SSB
and CW can be independently selected.
q Hold down [FILTER] for 1 second to display the “FIL”
screen (Filter).
w Select the SSB or CW mode.
e Push [F-5] once or twice to select either the soft or
sharp filter shape.
r Push [MENU] to save, and exit the “FIL” screen.
[MENU] [FILTER]
[F-5][F-3]
15 kHz is selected.
BW
SSB-2 2.4K
R:15K
SHARP
FIL
S
0
B
2.4K
[MENU] [FILTER]
[F-5]
BW
SSB-2 2.4K
SHARP
FIL
S
0
B
2.4K
BW
SSB-2 2.4K
SOFT
FIL
S
0
B
2.4K
