[RF/SQL]
: 12 o’clock
[MIC]
: 12 o’clock
[NR]
: Max. CCW
[CW PITCH]
: 12 o’clock
[RF PWR]
: Max. CW
[AF]
: Max. CCW
■ Before rst applying power
Before turning ON your transceiver for the first time,
make sure all connections required for your system
are complete by reviewing them in Section 2 of this
manual.

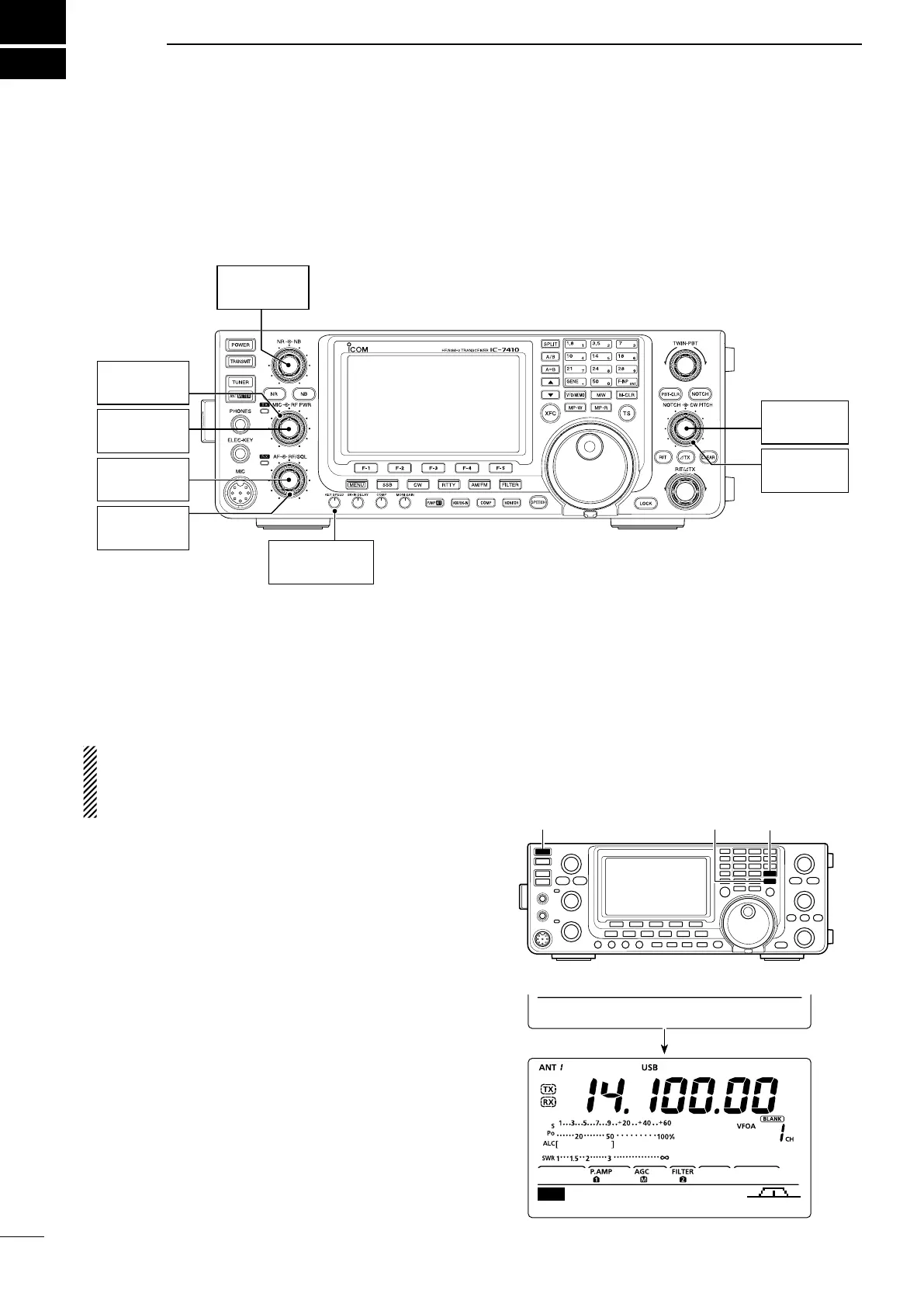

After all connections have been made, set controls
and switches as shown in the illustration below.
3
23
BASIC OPERATION
[POWER]
[M-CLR]
[F-INP ENT]
■ Turning ON (CPU resetting)
First time to Power ON:
Reset the transceiver using the following procedure.
Resetting CLEARS all the programmed contents in
the memory channels, and returns all the pro-
grammed items in the Set mode to their default set-
tings.
q Make sure the transceiver’s power is OFF.
w
While holding down both [F-INP ENT] and [M-CLR],
push [POWER] to turn ON the transceiver.
•TheCPUisreset.
•Thetransceiverdisplays“ALLCLEAR,”thendisplayes
its initial VFO frequency when resetting is complete.
e Change the Set mode settings to suit your operat-
ing needs. (p. 85)
Normal Power ON:
Push [POWER] to turn ON the transceiver.
Power OFF:
Hold down [POWER] for 1 second to turn OFF the
transceiver.
[NOTCH]
: 12 o’clock
CW : Clockwise
CCW : Counterclockwise
[KEY SPEED]
: 10–12 o’clock
Ω
ALL CLEAR
≈
AGC TBW SCP
M1
