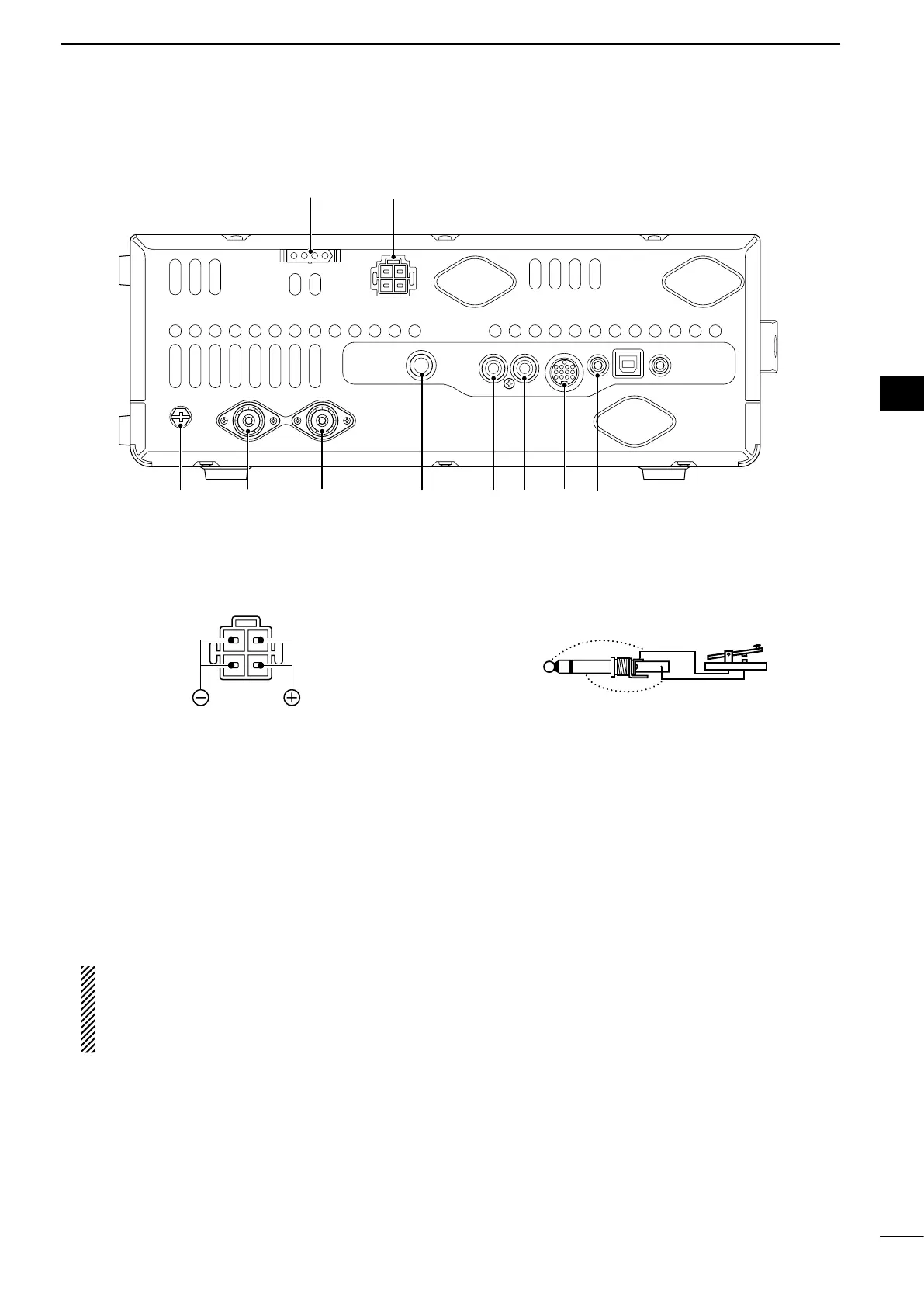

■ Rear panel
q DC POWER SOCKET [DC 13.8V] (p. 19)
Connect 13.8 V DC through the supplied DC power
cable.
w TUNER CONTROL SOCKET [TUNER] (p. 18)
Connect the control cable from an optional AH-4 h f /
50 m h z a u t o m a t i c a n t e n n a t u n e r .
e GROUND TERMINAL [GND] (p. 15)
Connect this terminal to a ground to prevent electri-
cal shocks, TVI, BCI and other problems.
r ANTENNA CONNECTOR 1 [ANT1] (p. 16)
t ANTENNA CONNECTOR 2 [ANT2] (p. 16)
Connect a 50 ø antenna with a PL-259 plug con-
nector.
When using an optional AH-4 h f / 50 m h z a u t o -
m a t i c a n t e n n a t u n e r , connect it to the [ANT1]
connector. Connecting the AH-4 activates the in-
ternal antenna tuner for [ANT2] and deactivates
it for [ANT1].
y STRAIGHT KEY JACK [KEY] (p. 16)
Connect a straight key or external electronic keyer
output using a standard
1
⁄4 inch plug.
•To use the internal electronic keyer for CW operation,
connect to [ELEC-KEY] on the front panel. (p. 1)
u ALC INPUT JACK [ALC] (p. 21)
When transmitting, goes to ground to control an ex-
ternal unit, such as a non-Icom linear amplifier.
i SEND CONTROL JACK [SEND] (p. 21)
Connect a ground when transmitting to control an
external unit, such as a non-Icom linear amplifier.
o ACCESSORY SOCKET [ACC]
Connect control lines for external equipment such
as a linear amplifier, an automatic antenna selector/
tuner, a TNC for data communications, etc.
•Seepage10forsocketinformation.
!0 CI-V REMOTE CONTROL JACK [REMOTE]
(p. 17)
➥ Connect
a PC, using the optional CT-17 c i -v
l e v e l c o n v e r t e r , for external control of the trans-
ceiver.
➥ Use for transceive operation with another Icom
CI-V transceiver or receiver. When the trans-
ceive function is set to ON, changing the fre-
quency, operating mode, etc. on the IC-7410
automatically changes those settings on other
Icom transceivers or receivers, and vice versa.
(p. 89)
