INSTALLATION AND CONNECTIONS
■ Linear amplifier connections (Continued)
D Connecting a non-Icom linear amplier
R WARNING!
•SetthetransceiveroutputpowerandlinearamplierALCoutputlevelafterreferringtothelinearamplierin-
struction manual.
•TheALCinputlevelmustbeintherange0Vto–3V.Thetransceiverdoesnotacceptapositivevoltage.Non-
matched ALC and RF power settings could overheat or damage the linear amplifier.
•TheIC-7410SENDterminal(ACCconnectorpin3)isratedat16V/0.5ADC.Ifthisvalueisexceeded,alarger
external relay must be used.

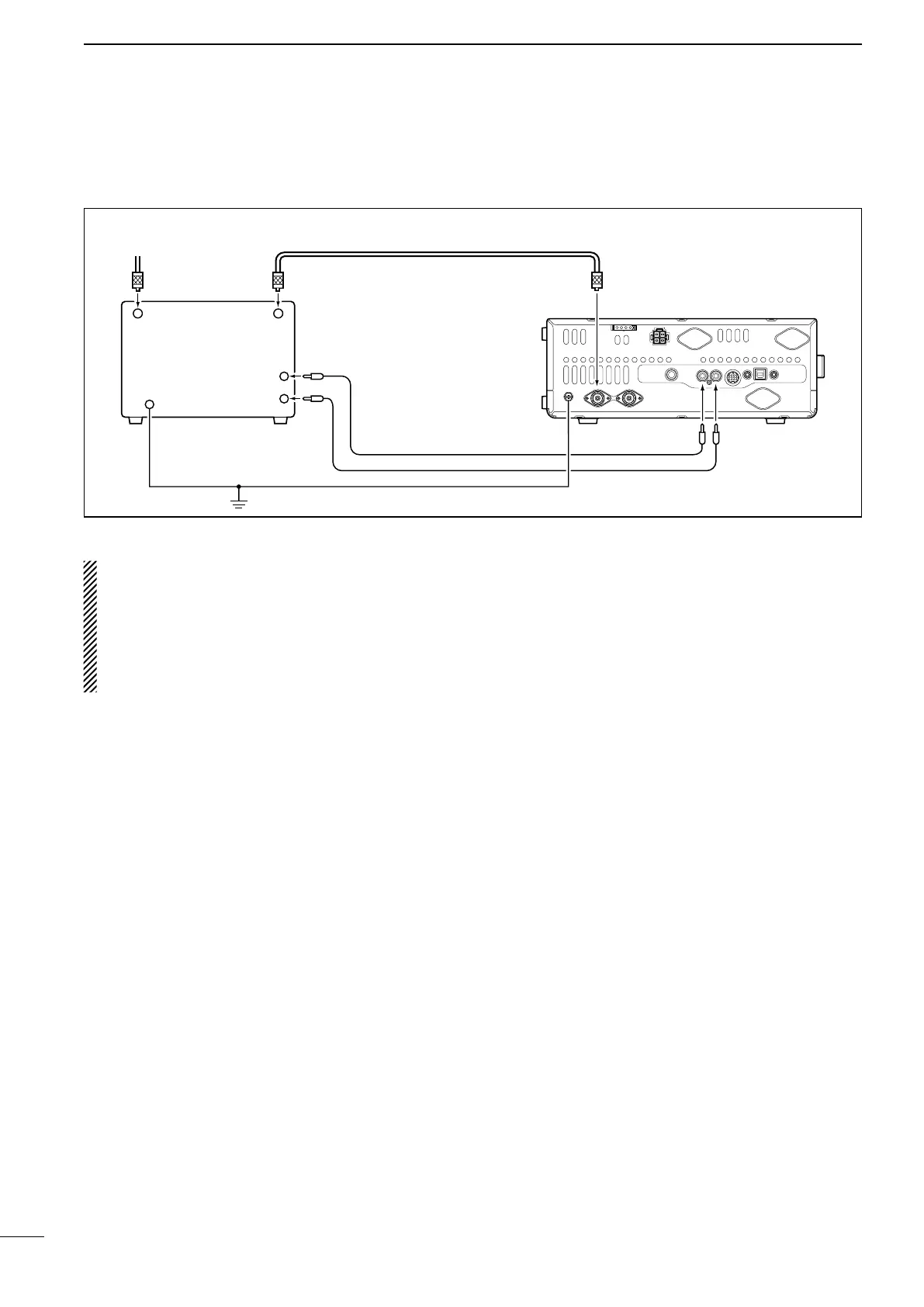

50 ø coaxial cable
To an antenna
Non-Icom linear
amplifier
RF OUTPUT
Transceiver
[GND] [ALC]
GND
[ANT1]
ALC
SEND
[SEND]
RF INPUT
Ground
