INSTALLATION AND CONNECTIONS

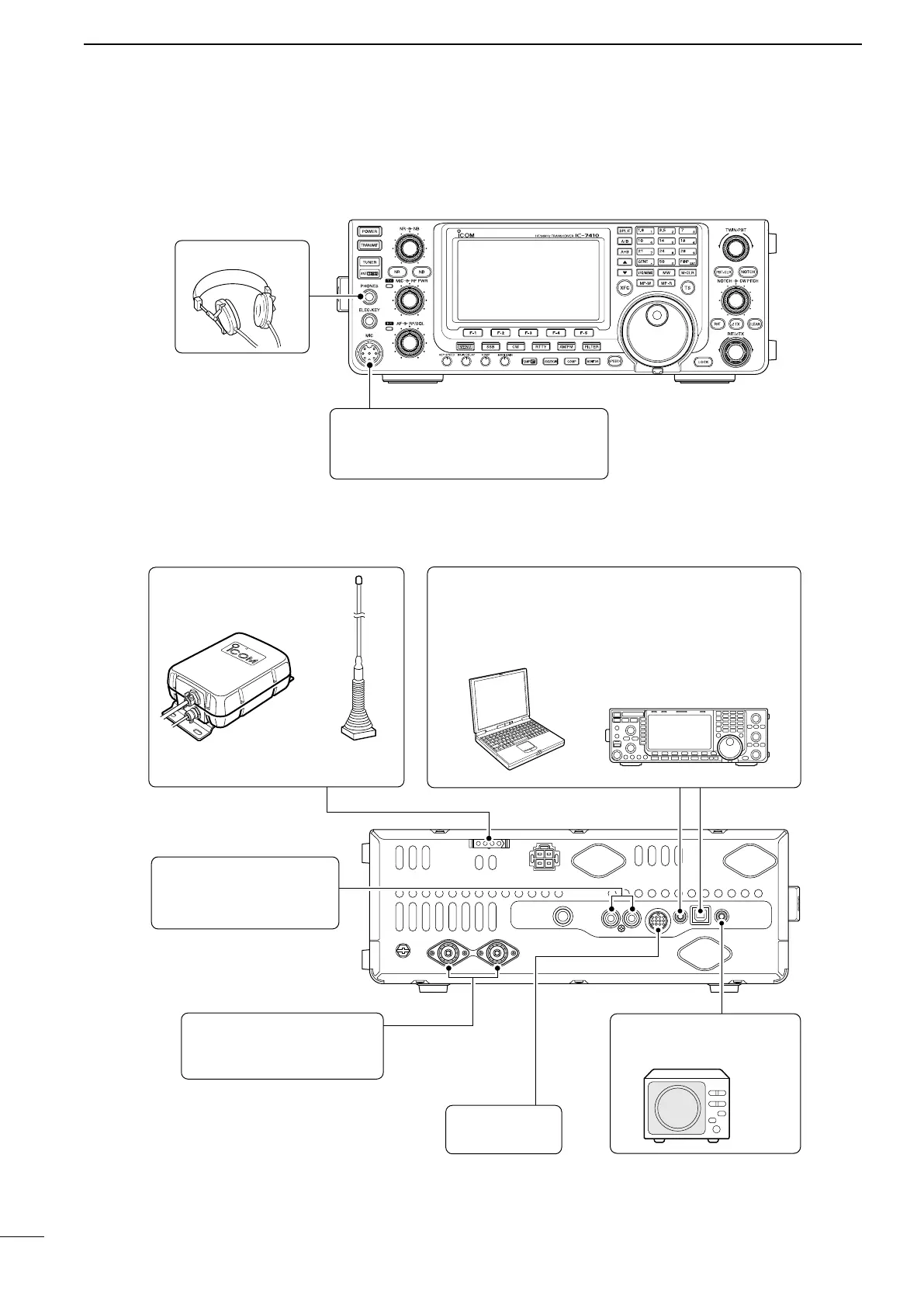

D Rear panel

■ Advanced connections

D Front panel

HEADPHONES

MIC

The AFSK modulation signal can also

be input to [MIC]. (p. 92)

AH-4 (option)

(p. 18)

AH-2b (option)

or long wire

with

ACC SOCKET

(p. 10)

REMOTE JACK, USB CONNECTOR (p. 101)

Used for computer control and transceive operation.

The optional CT-17 is required when connecting a

PC to [REMOTE].

[ALC], [SEND] (p. 21)

Used for connecting a

non-Icom linear ampliﬁer.

EXTERNAL SPEAKER

(p. 111)

SP-23

(option)

[ANT 1], [ANT 2] (p. 82)

Connect a linear ampliﬁer,

antenna selector, etc.

Important2
Explicit Definitions2
Supplied Accessories2
Fcc Information2
Precautions3
- Table of Contents4
