INSTALLATION AND CONNECTIONS

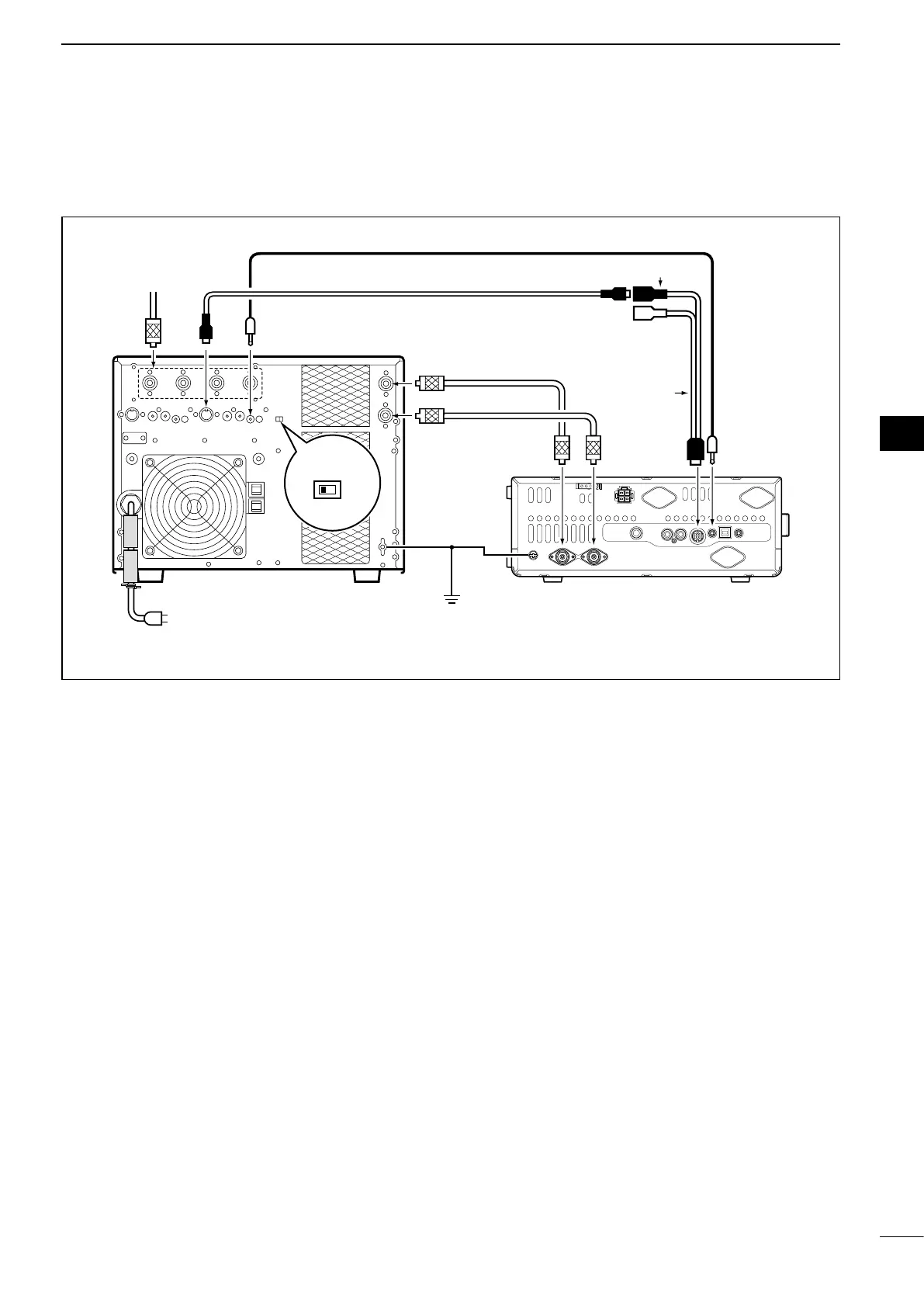

■ Linear amplier connections

D Connecting the IC-PW1/PW1EURO

EXCITER

1&2

Remote control cable (supplied with the IC-PW1/PW1EURO)

ACC cable (supplied with the IC-PW1/PW1EURO)

To an

antenna

[ACC1]

[REMOTE][ANT]

IC-PW1/EURO

AC outlet

(Non-European versions : 100–120/200–240 V

European version : 230 V)

[INPUT1]

7-pin side

[REMOTE]

Coaxial cable

( supplied with the IC-PW1/

PW1EURO)

[ANT2]

Transceiver

[ACC]

[ANT1]

[INPUT2]

* If necessary, purchase sepa-

rately, and connect to [INPUT2].

[GND]

OPC-599

Coaxial cable*

Ground

[GND]
