PANEL DESCRIPTION

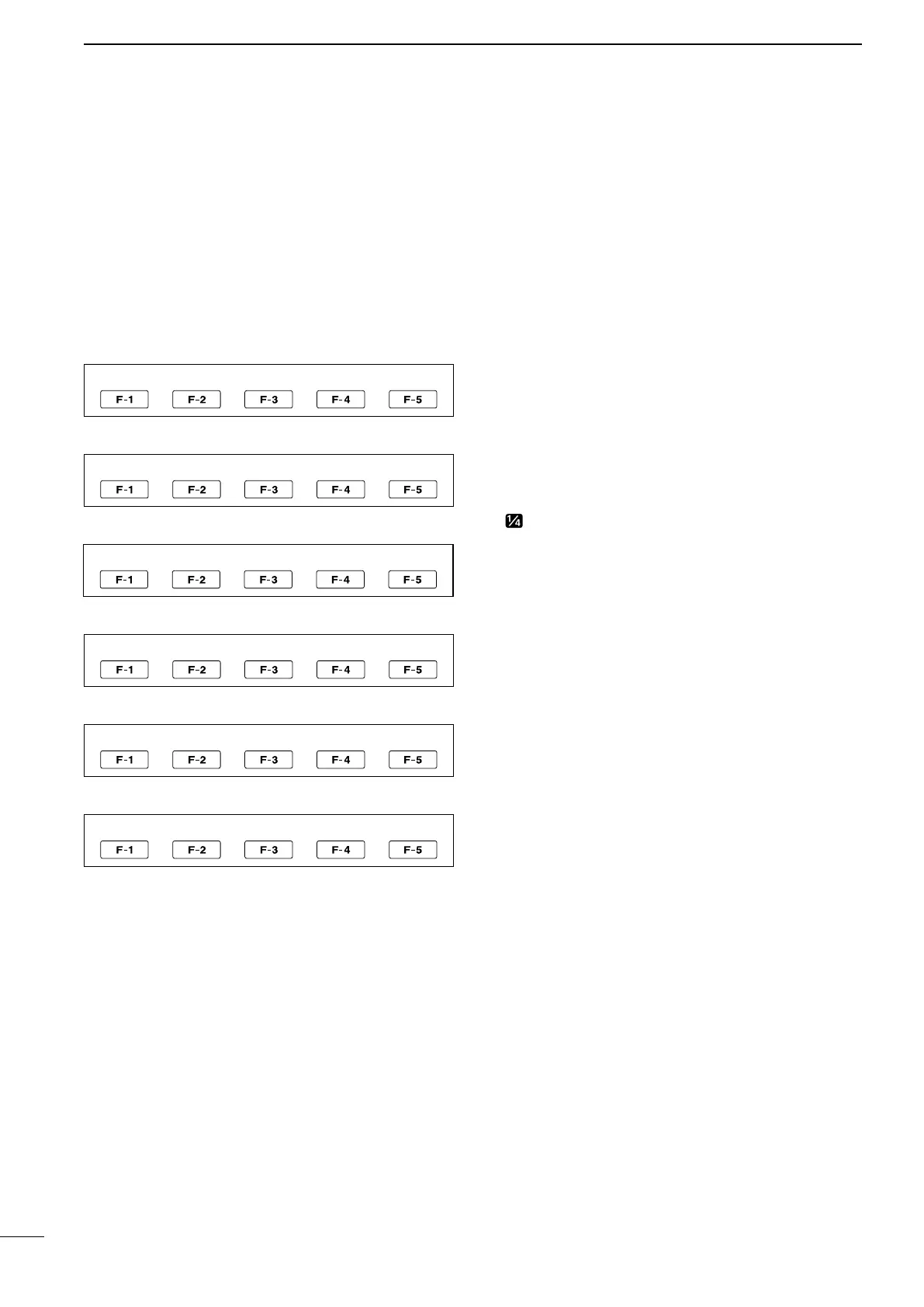

D M1 (Menu 1)
(Mode: SSB)
AGC TBW SCP
(Mode: SSB-D)
AGC 1 ⁄ 4 SCP
(Mode: CW)
AGC 1 ⁄ 4 KEY SCP
(Mode: RTTY)
AGC 1 ⁄ 4 RTTY SCP
(Mode: AM)
AGC SCP
(Mode: FM)
AGC TON SCP
D Function keys on M1 (Menu 1)
AGC KEY [AGC](F-1) (p. 56)
(Mode: SSB/CW/RTTY/AM/FM)
➥ Push to select the time constant of the AGC circuit.
➥ Hold down for 1 second to display the “ AGC ”
screen.
1
⁄4 TUNING FUNCTION KEY [
1
⁄4](F-3) (p. 27)
(Mode: SSB-D/CW/RTTY)
Push to turn the
1
⁄4 Tuning function ON or OFF.
•“ ” is displayed when the
1
⁄4 Tuning function is ON.
TRANSMISSION BANDWIDTH KEY [TBW](F-4)
(p. 64)
(Mode: SSB)
➥ Push to display the selected transmission band-
width.
➥ Hold down for 1 second to select the transmission
bandwidth.
 •Wide(WIDE),mid(MID)andnarrow(NAR)bandwidths
are selectable.
MEMORY KEYER MENU KEY [KEY](F-4) (p. 38)
(Mode: CW)
Push to display the “KEY” screen (Memory Keyer) or
the “SEND” screen (Keyer Send), depending on the
“KEYER 1st Menu” setting in the Set mode (p. 88) .
RTTY MENU KEY [RTTY](F-4) (p. 45)
(Mode: RTTY)
Push to display the “RTTY” screen.
TONE SQUELCH KEY [TON](F-4) (p. 50)
(Mode: FM)
➥ Push to select a tone function between subaudible
(repeater) tone and tone squelch.
➥ Hold down for 1 second to display the “TON” screen
(Tone) of the selected tone function.
BAND SCOPE FUNCTION KEY [SCP](F-5) (p. 54)
(Mode: SSB/CW/RTTY/AM/FM)
Push to display the “SCP” screen (Band Scope).
■ Function display
Push [MENU] to toggle between M1 (Menu 1) and M2
(Menu 2).
•Thesetoffunctionsassignedtothefunctionswitches
changes, according to the selected menu and oper-
ating mode.
Push to select the functions displayed above switches
([F-1] to [F-5]).
•Functionsvary,dependingontheoperatingmode.
