WSB-9454 CPU Card
Page 87

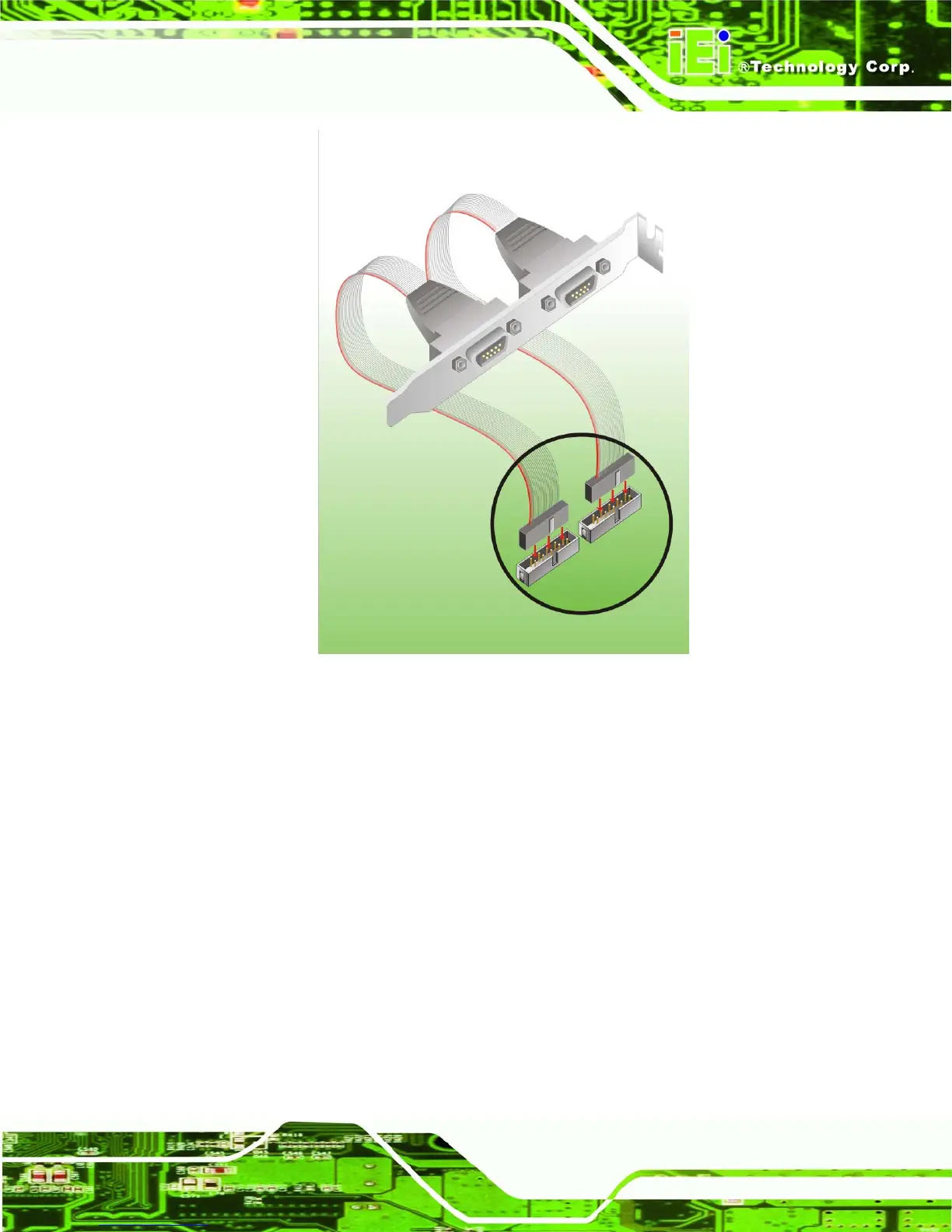

Figure 4-11: Dual RS-232 Cable Installation
Step 3: Secure the bracket supporting the two D-sub 9 male connectors to the chassis.
To do this, refer to the chassis manual. Step 0:
4.5.4.5 USB 2.0 Cable Connection
The CPU card is shipped with a dual USB cable. The dual USB cable consists of two
connectors attached to two independent cables. Each cable is then attached to a USB port
connector that is mounted on a bracket. To install the USB cable, follow the steps below.
Step 1: Install a USB module supporting two USB ports to the chassis. Secure the USB
module bracket following the instructions in the documentation that came with
the USB module and the chassis.
